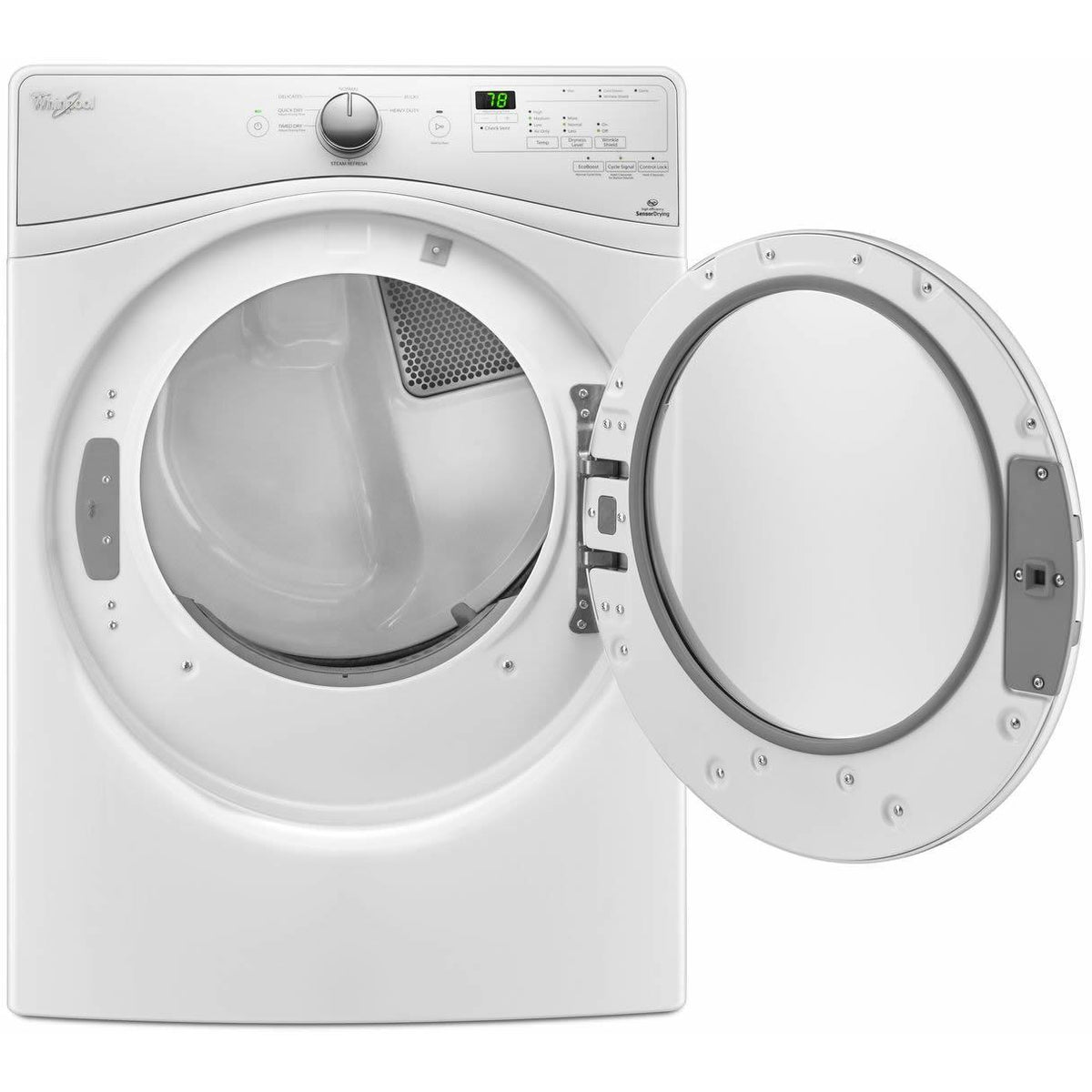

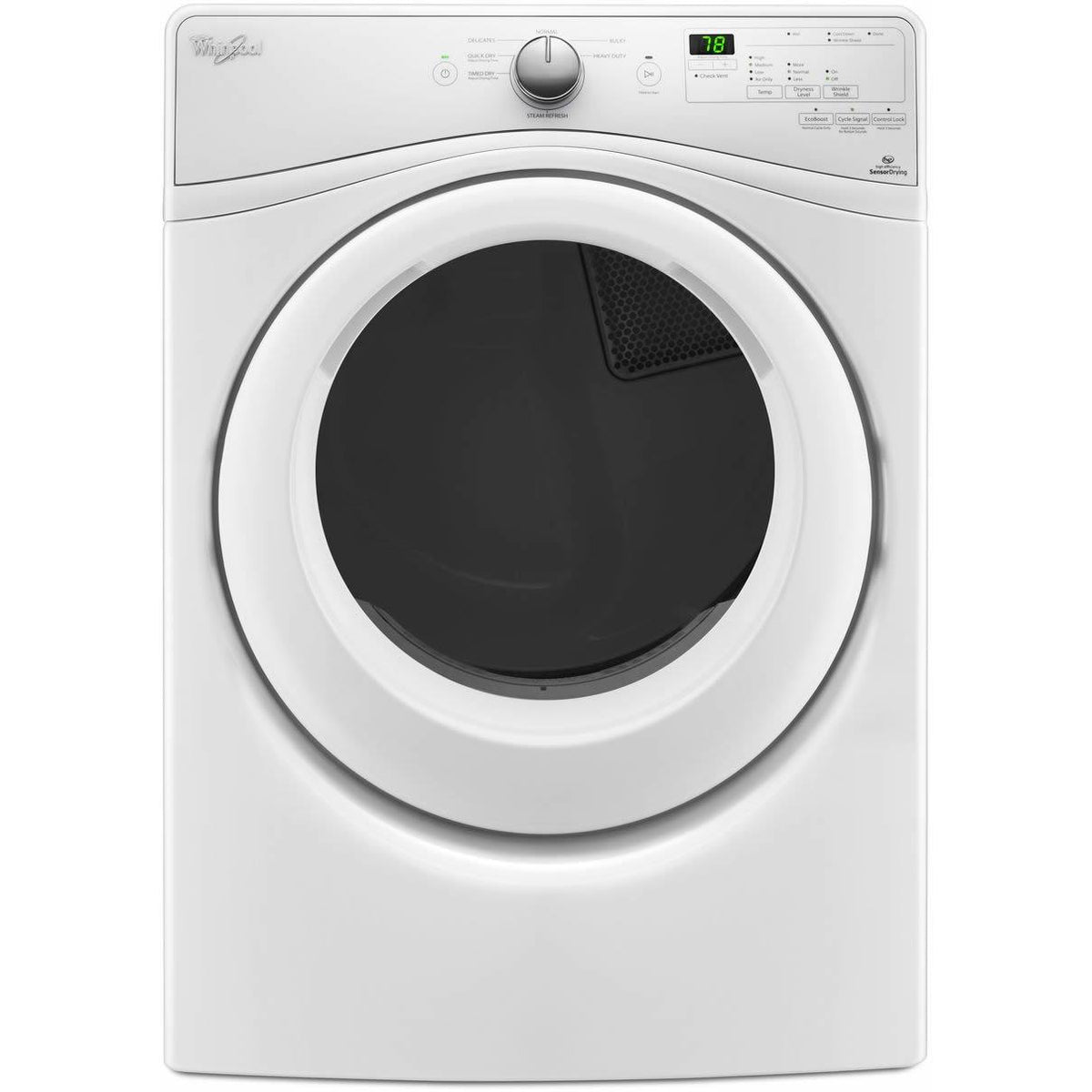

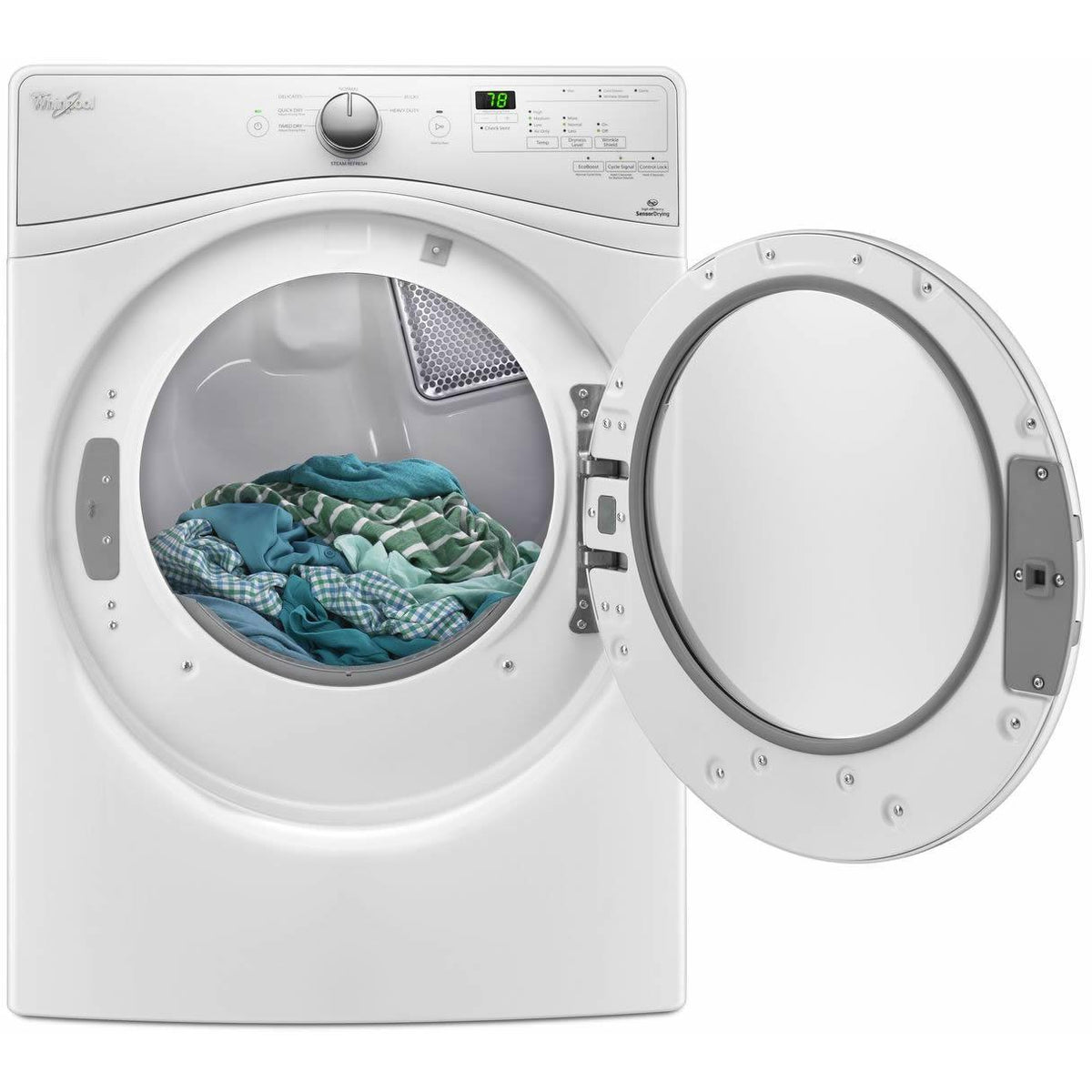

 Whirlpool 7.4 cu. ft. Electric Dryer with Steam WED7505FW IMAGE 1

Whirlpool 7.4 cu.ft. electric dryer features 7 dry programs, control lock, Eco Boost™ and steam refresh. Wrinkle Shield™ Plus option helps prevent wrinkles from forming in your clean clothes.

Specifications

General
Type
Vented
Power Source
Electric
Color
White
Manufacturer Color
White
Tub Material
Powder-Coated
Capacity
Capacity
7.4 cu. ft.
Cycle Information
Number of Cycles
7
Dry Cycles
• Bulky Items
• Delicates
• Heavy Duty
• Normal
• Quick Dry
• Steam Refresh
• Timed Dry
Features
Dryness Levels
• Less
• More
• Normal
Temperature Settings
• Air Only
• High
• Low
• Medium
Number of Temperature Settings
4
Wi-Fi
No
Steam Cycle
Yes
Control Lock
Yes
Light
No
Digital Display
Yes
Sensor Dry
Yes
Stackable
Yes
Additional Information
• Cycle Indicator Lights with Digital Time Remaining
• Feedback-Status Indicators: Check Vent, Cool Down, Done (Clothes Dry), Estimated Time Remaining, Wet, Wrinkle Shield™
• Eco Boost™
• Automatic Temperature Controls
• 3 Dryness Levels
• Steam Hose Y Connector
• Lint Filter Indicator
• Advanced Moisture Sensor
• ADA Compliant
• Venting Direction: Left, Right, Bottom, Rear
• Watts: 5400
• Quad Baffles
Electrical Information
Information
240
Certifications and Approvals
Energy Star Certified
Yes
Dimensions
Class Width
26" - 27"
Width
27 inch(es) / 68.58 cm
Height
38.75 inch(es) / 98.43 cm
Depth
31 inch(es) / 78.74 cm
Additional Dimensions
For more information please refer to dimension guide
Warranty
Warranty
Limited 1-Year Parts and Labor

Features

ADVANCED MOISTURE SENSING
Advanced Moisture Sensing continuously monitors heat and moisture levels to automatically end the cycle when clothes are perfectly dry, helping to prevent overdrying and damage to fabrics.
ADVANCED MOISTURE SENSING
QUAD BAFFLES
Four shorter, staggered baffles increase the effectiveness of the dryer for small loads and promote better, more balanced tumbling.
QUAD BAFFLES

Additional Features

ECOBOOST™ OPTION
The EcoBoost™ option saves energy by using less heat and extending cycle time. You will enjoy a great drying performance while using less energy.
STEAM REFRESH CYCLE
The Steam Refresh cycle uses water and heat to relax wrinkles and reduce odors from clothes in just 22 minutes.
WRINKLE SHIELD™ PLUS OPTION
Help keep wrinkles from setting into your clean clothes for up to 140 minutes.

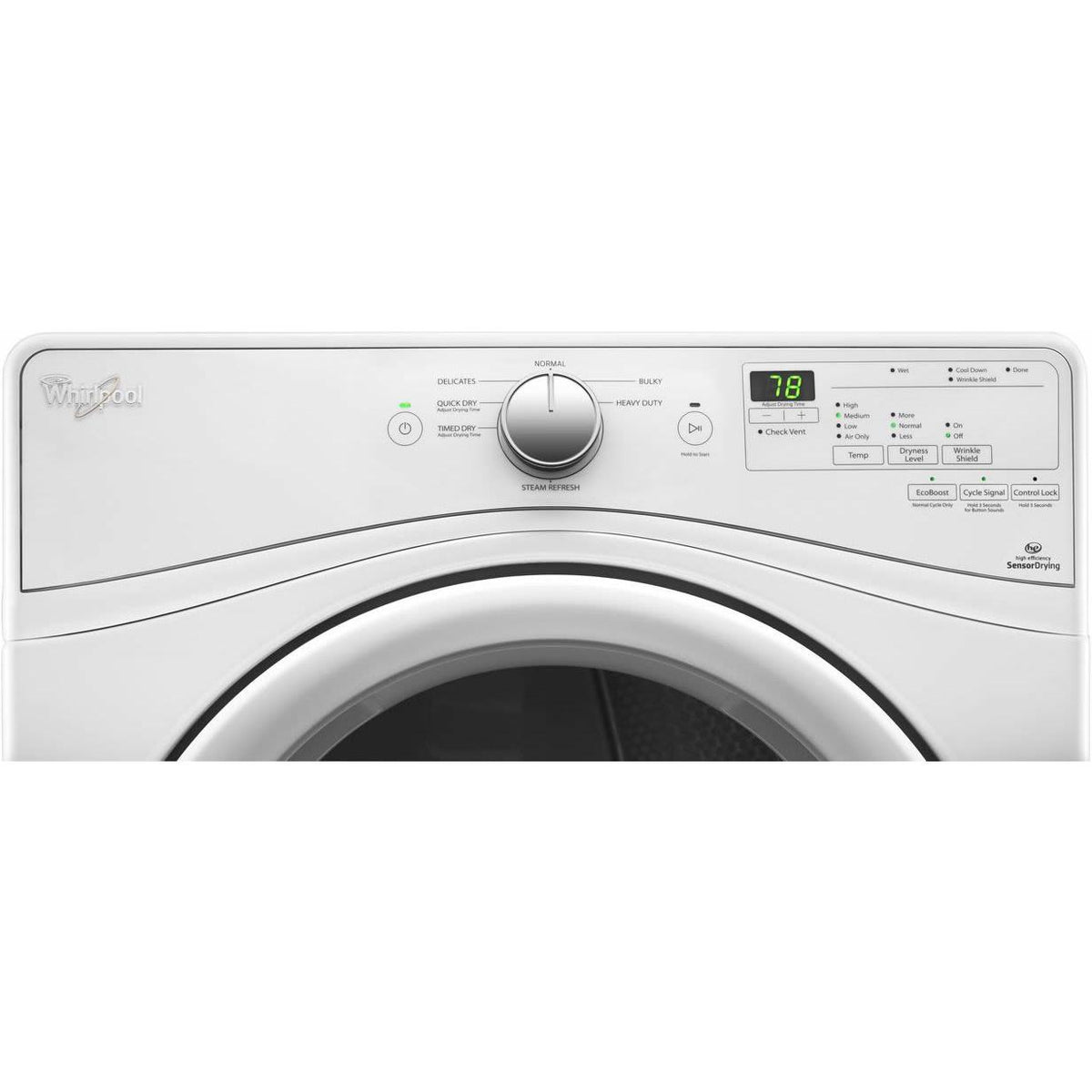

TAP TOUCH CONTROLS WITH MEMORY
The sleek Tap Touch control interface allows direct access to dryer functions and remembers your last cycle and settings.
