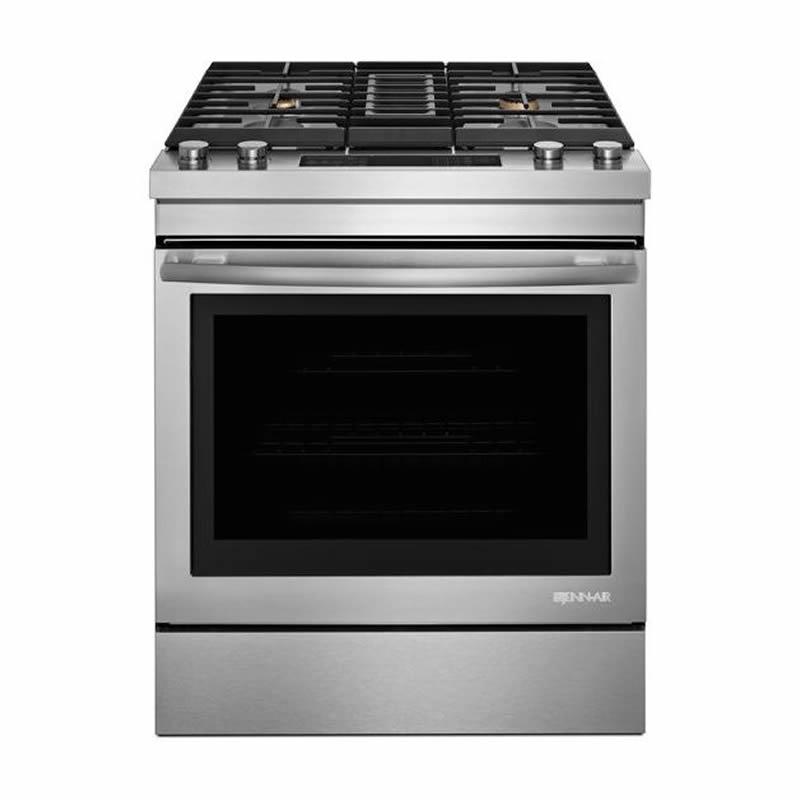

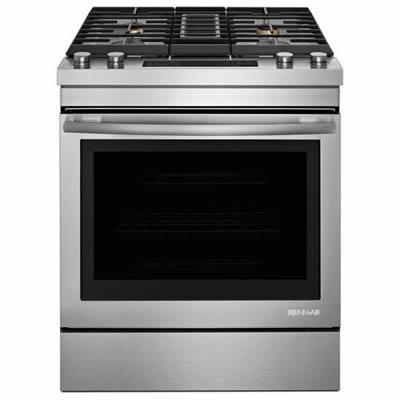

Featuring downdraft ventilation, the original Jenn-Air® brand innovation, this dual-fuel range boasts a powerful 17,000 BTU burner, DuraFinish™ Protection, brass burners and an optional duct-free filter kit that allows for installation virtually anywhere. Easily installing in a standard opening, this range pairs beautifully with appliances in our Euro-Style Stainless suites.
$0.00
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left front element-burner power : 17,000 BTU
• Left rear element-burner power : 5,600 BTU
• Right front element-burner power : 15,000 BTU
• Right rear element-burner power : 9,200 BTU
• Left rear element-burner power : 5,600 BTU
• Right front element-burner power : 15,000 BTU
• Right rear element-burner power : 9,200 BTU
Burners
Open
Oven
Capacity (cu. ft.)
5.8
Number of Ovens
Single
Features
Convection
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Convertible to duct-free ventilation
• DuraFinish™ protection
• Brass burners
• 280 CFM blower capacity
• Duct-free filter kit
• Soft-close door
• Telescoping glide rack
• Continuous, heavy duty, cast iron grates
• Keep Warm™ option
• Proofing option
• Auto convection modes
• Aqualift® self cleaning technology
• DuraFinish™ protection
• Brass burners
• 280 CFM blower capacity
• Duct-free filter kit
• Soft-close door
• Telescoping glide rack
• Continuous, heavy duty, cast iron grates
• Keep Warm™ option
• Proofing option
• Auto convection modes
• Aqualift® self cleaning technology
Drawer Features
Indicator Light
No
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
240
Certifications and Approvals
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36 inch(es) / 91.44 cm
Depth (Without Handles)
28.31 inch(es) / 71.9 cm
Depth (Including Handles)
28.87 inch(es) / 73.34 cm
Weight
220 lb(s) / 99.79 kg
Additional Dimensions
28 7/8"(73.3 cm) Max. depth from handle to back of range
Shipping Dimensions
Width
31.5 inch(es) / 80.01 cm
Height
43.5 inch(es) / 110.49 cm
Depth
30.56 inch(es) / 77.63 cm
Weight
240 lb(s) / 108.86 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
883049329581
Features

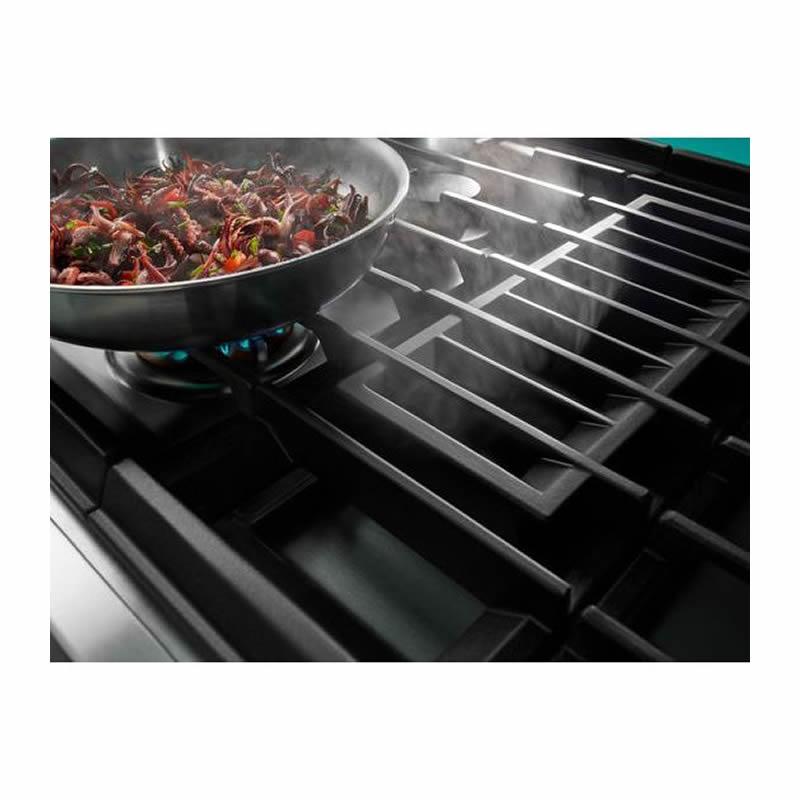

DOWNDRAFT VENTILATION
Developed and refined by Jenn-Air®, downdraft ventilation uses proximity ventilation to capture smoke, steam and odors at the cooking surface. whisking them down and out for a fresher, cleaner kitchen.
BRASS BURNERS
Elegant brass burners effectively channel heat for desired cooking results.
Additional Features
280 CFM BLOWER CAPACITY
When using the downdraft blower in a ducted configuration, the blower has an exhaust capacity rating of 280 CFM, using the efficient design of downdraft ventilation to its advantage to rapidly ventilate cooking vapors.
CONVERTIBLE TO DUCT-FREE VENTILATION
Downdraft ranges are manufactured to be used with ductwork, but this option enables conversion of the downdraft range to be used with a duct-free system.
SOFT-CLOSE DOOR
Soft-Close technology lets the oven door close softly, quietly, securely.
TELESCOPING GLIDE RACK
This roll-out rack lets you easily position and remove dishes.
DUCT-FREE FILTER KIT
Filter included with the duct-free kit that captures smoke, grease and moisture, and allows air to travel through the filter without a loss of air efficiency. The filter also has a replacement indicator.
AUTO CONVECTION CONVERSION
Automatically converting conventional cook time and/or temperature from any recipe to the appropriate convection settings, this function takes the guesswork out of convection cooking while giving you consistent, effortless results.
CONVERTIBLE TO LP
This range allows you to easily adapt your energy source from natural gas to propane.
AQUALIFT® SELF CLEANING TECHNOLOGY
Jenn-Air industry-first oven cleaning technology finishes in under one hour, using water and a lower temperature. This technology minimizes the time, temperature and the odors that typically come from standard, self-cleaning oven models.
30' RANGE
Make a statement with our 30” full-depth range that offers the refined look of Jenn-Air® appliances while easily installing in a standard opening.
DURAFINISH™ PROTECTION
With excellence in every detail, DuraFinish™ Protection keeps your cooktop?s surface looking like new, resisting yellowing, staining and scratching.
CONTINUOUS, HEAVY DUTY, CAST IRON GRATES
This roll-out rack lets you easily position and remove dishes
SABBATH MODE
This selectable oven function bypasses the oven's automatic shutoff, allowing it to be used in homes that observe the Sabbath and other religious holidays.
KEEP WARM™ FUNCTION
This function, available on all induction elements, keeps foods and delicate sauces at their ideal serving temperatures while other items finish cooking.
PROOFING OPTION
An option that maintains a low, consistent temperature to provide fast, even rises and protect dough from changes in temperature, whether in the oven or in the baking drawer.
