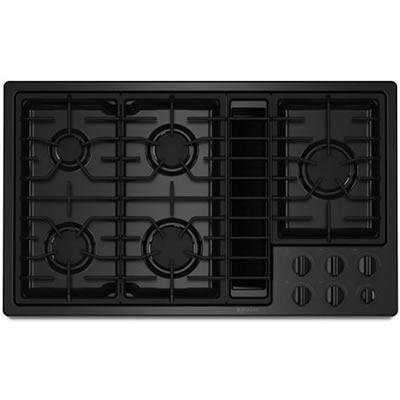

This Jenn-Air® luxury gas downdraft cooktop features five sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood. This cooktop pairs beautifully with appliances in our Euro Style and Black Floating Glass suites.
$0.00
Specifications
General
Color
Black
Manufacturer Color
Black on Black
Fuel Type
Gas (Not Specified)
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
17,00 BTU Ultra-High Output Burner;
15,000 BTU Ultra-High OUtput Burner;
12,500-BTU Burner;
9,200 BTU Burner;
5,000 BTU Burner.
Burners
Sealed
Features
Clock
No
Digital Display
No
Downdraft Ventilation
Yes
Additional Information
Industry's Best Performing Ventilation System;
Downdraft Ventilation System with 3-Speed Fan;
Convertible to Duct-Free Ventilation;
Electronic Ignition and Flame-Sensing Re-ignition;
425 CFM Rating;
Easy-to-Clean Short Plenum;
Dishwasher-Safe Air Grill;
Dishwasher-Safe Burner Grates and Caps;
Color-Coordinating Cast Metal Knobs Also Dishwasher Safe;
Infinite Burner Control Settings;
Duct-Free Kit & Filter;
Porcelain-on-Cast-Iron Continuous Grates;
Porcelain-Enamel/Stainless Steel Surface.
Certifications and Approvals
Sabbath Mode
No
Dimensions
Class Width
36"
Width
36 inch(es) / 91.44 cm
Height
4 inch(es) / 10.16 cm
Depth
21.5 inch(es) / 54.61 cm
Additional Dimensions
Cutout Depth: 19 15/16";
Cutout Height: 20 7/16";
Cutout Width: 34 3/4".
Warranty
Warranty
Limited 2-year parts and labor;
In the second through fifth years from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, Jenn-Air will pay for factory specified parts for the following components (if applicable to the product) if defective in materials or workmanship: Electric element, Touch Pad and microprocessor, Glass ceramic cooktop: if due to thermal breakage, Electronic controls, Magnetron tube, Sealed gas burners.
UPC
UPC#
883049280516
Features
INFINITE BURNER CONTROL SETTINGS
Enjoy precise temperature controls by selecting your preferred burner setting — from low to high and everywhere in between.
Additional Features
JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN
The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.
CONVERTIBLE TO DUCT-FREE VENTILATION
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
ELECTRONIC IGNITION AND FLAME-SENSING™ RE-IGNITION
Gas burners light reliably every time, and if a draft blows the flames out, they are automatically re-ignited.
PORCELAIN-ON-CAST-IRON CONTINUOUS GRATES

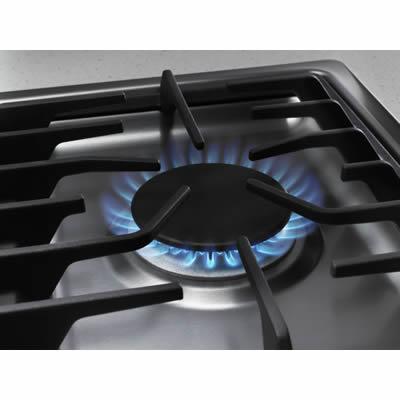

17,000 BTU ULTRA-HIGH OUTPUT BURNER
Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
425 CFM RATING
This luxury gas downdraft cooktop’s ventilation system operates at up to 425 CFM to effectively remove smoke, steam and cooking odors.
EASY-TO-CLEAN SHORT PLENUM
This plenum, which pulls the air through the ventilation chamber from its hidden position beneath the air grill, is easy to clean thanks to its short height.
DISHWASHER-SAFE AIR GRILL
This intake grill, which effectively captures smoke, grease and cooking odors as they’re drawn through the system, can be easily cleaned in the dishwasher.
DISHWASHER-SAFE BURNER GRATES AND CAPS
The burner grates and caps can be easily removed and cleaned in the dishwasher, for effortless upkeep.
PORCELAIN-ENAMEL/STAINLESS STEEL SURFACE
This surface transfers heat efficiently and is highly durable, with a subtle sheen that’s easy to maintain.
