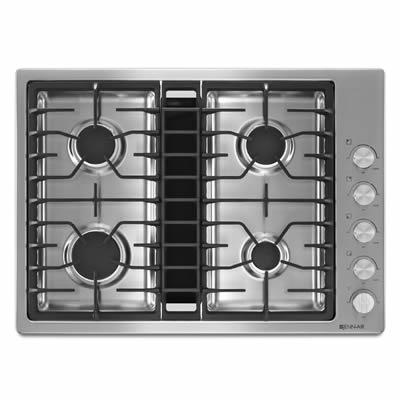

This Jenn-Air® luxury gas downdraft cooktop features four sealed burners, including a 17,000 BTU ultra-high output burner. Its impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood. This cooktop pairs beautifully with appliances in our Euro Style Stainless suites.
$0.00
Specifications
General
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Fuel Type
Gas (Not Specified)
Type
Built-In
Cooktop
Burners/Elements
4
Power Output
Left Front Power: 17000 BTU;
Left Rear Power: 9200 BTU;
Right Front Power: 5000 BTU;
Right Rear Power: 12500 BTU.
Burners
Sealed
Surface Features
Porcelain-Enamel/Stainless Steel Surface.
Features
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
Yes
Additional Information
• X3™ Downdraft Ventilation System with 3-Speed Fan : The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood
• Convertible to Duct-Free Ventilation
• 17,000 BTU Ultra-High Output Burner
• Electronic Ignition and Flame-Sensing™ Re-ignition
• 425 CFM Rating
• Easy-to-Clean Short Plenum
• Dishwasher-Safe Air Grill
• Dishwasher-Safe Burner Grates
• Infinite Burner Control Settings
• Porcelain-on-Cast-Iron Continuous Grates
• Convertible to Duct-Free Ventilation
• 17,000 BTU Ultra-High Output Burner
• Electronic Ignition and Flame-Sensing™ Re-ignition
• 425 CFM Rating
• Easy-to-Clean Short Plenum
• Dishwasher-Safe Air Grill
• Dishwasher-Safe Burner Grates
• Infinite Burner Control Settings
• Porcelain-on-Cast-Iron Continuous Grates
Certifications and Approvals
Sabbath Mode
No
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
18.44 inch(es) / 46.83 cm
Depth
21.5 inch(es) / 54.61 cm
Additional Dimensions
Cutout Depth: 19 15/16";
Cutout Height: 20 7/16";
Cutout Width: 28 5/8".
Shipping Dimensions
Width
25 inch(es) / 63.5 cm
Height
23.75 inch(es) / 60.33 cm
Depth
36 inch(es) / 91.44 cm
Weight
75.99 lb(s) / 34.47 kg
Warranty
Warranty
Limited 1-year parts and labor.
UPC
UPC#
883049280509
Features
INFINITE BURNER CONTROL SETTINGS
Enjoy precise temperature controls by selecting your preferred burner setting — from low to high and everywhere in between.
Additional Features
17,000 BTU ULTRA-HIGH OUTPUT BURNER
Enjoy the robust heat necessary for high-powered cooking techniques, whether searing a steak, stir-frying vegetables or rapidly boiling water.
CONVERTIBLE TO DUCT-FREE VENTILATION
Keep the view from your kitchen open and free from ductwork with this optional kit that allows conversion to duct-free ventilation.
JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN
The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.
DURAFINISH™ PROTECTION
With excellence in every detail, DuraFinish® Protection helps keep your cooktop’s surface looking like new, resisting yellowing, staining and scratching.
PORCELAIN-ON-CAST-IRON CONTINUOUS GRATES
