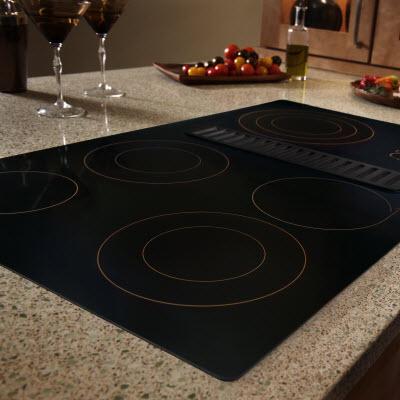

This Jenn-Air® luxury electric radiant downdraft cooktop with electronic touch controls offers a sleek design and responsive performance. Its glass touch controls and five radiant elements create a smooth, integrated cooktop surface, and the impressive JX3™ downdraft ventilation system quickly and efficiently clears the air without a hood.
$0.00
Specifications
General
Color
Black
Manufacturer Color
Oiled Bronze
Fuel Type
Electric
Type
Built-In
Cooktop
Burners/Elements
5
Power Output
• Triple-Choice™ Element: 2,700 Watts
• Dual-Choice™ Elements: 2 (2,200 Watts Each)
• 6 in (15.2 cm) 1,200-Watt Element
• Keep Warm™ Element: 100 Watts
• Dual-Choice™ Elements: 2 (2,200 Watts Each)
• 6 in (15.2 cm) 1,200-Watt Element
• Keep Warm™ Element: 100 Watts
Burner/Element Size
• Triple-Choice™ Element: 6", 9", 12"
• Dual-Choice™ Elements: 6", 9"
• 6 in (15.2 cm) 1,200-Watt Element
• Keep Warm™ Element: 7"
• Dual-Choice™ Elements: 6", 9"
• 6 in (15.2 cm) 1,200-Watt Element
• Keep Warm™ Element: 7"
Elements
Smoothtop
Features
Technologies
• JX3™ Downdraft Ventilation System
• Triple-Choice™ Element
• Dual-Choice™ Elements
• Keep Warm™ Element
• Ceran® Glass-Ceramic Surface
• Triple-Choice™ Element
• Dual-Choice™ Elements
• Keep Warm™ Element
• Ceran® Glass-Ceramic Surface
Clock
No
Control Lock
No
Digital Display
No
Downdraft Ventilation
Yes
Additional Information
• Glass-Touch Electronic Controls
• 475 CFM Rating
• Easy-to-Clean Short Plenum
• Dishwasher-Safe Air Grill
• Delay Fan Feature
• 475 CFM Rating
• Easy-to-Clean Short Plenum
• Dishwasher-Safe Air Grill
• Delay Fan Feature
Electrical Information
Information
• 120/240 Volts
• 60 Hertz
• 40 Amps
• 60 Hertz
• 40 Amps
Certifications and Approvals
Sabbath Mode
No
Accessories
Optional
Optional Duct-Free Kit
Dimensions
Class Width
36"
Width
35.5 inch(es) / 90.17 cm
Height
18.37 inch(es) / 46.67 cm
Depth
22.13 inch(es) / 56.2 cm
Additional Dimensions
• Cutout Depth: 21 1/8"
• Cutout Width: 34 1/2"
• Cutout Width: 34 1/2"
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
883049184111
Features
CERAN® GLASS-CERAMIC SURFACE
This sleek glass-ceramic cooking surface offers a high sheen that’s easy to clean and maintain.
JX3™ DOWNDRAFT VENTILATION SYSTEM WITH 3-SPEED FAN
The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood.
425 CFM RATING
This luxury gas downdraft cooktop’s ventilation system operates at up to 425 CFM to effectively remove smoke, steam and cooking odors.
EASY-TO-CLEAN SHORT PLENUM
This plenum, which pulls the air through the ventilation chamber from its hidden position beneath the air grill, is easy to clean thanks to its short height.
DISHWASHER-SAFE AIR GRILL
This intake grill, which effectively captures smoke, grease and cooking odors as they’re drawn through the system, can be easily cleaned in the dishwasher.
DELAY FAN FEATURE
This sleek glass-ceramic cooking surface offers a high sheen that’s easy to clean and maintain.
