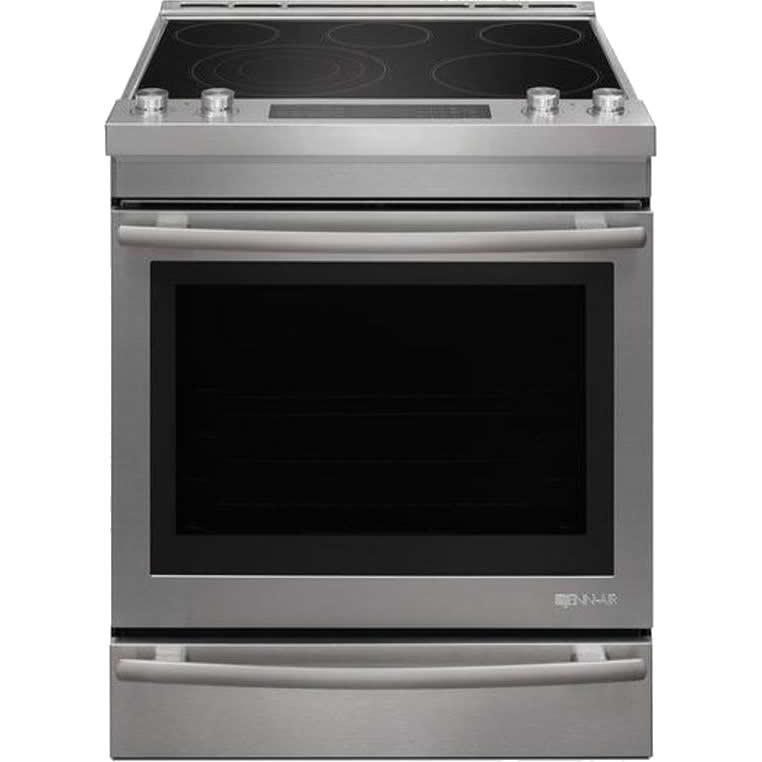

This Jenn-Air® 30" electric range features a baking drawer offering an array of options for cooking and providing a convenient alternative to oven baking and roasting, while still giving you the option to keep food warm, proof bread and warm plates before serving. Also displays a hidden bake element providing even heat and a smooth surface that is easy to clean with a rapid boil element that boils liquid quickly of 3,200 watts of power.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
5
Burners/Elements Output
• Center Front Element-Burner Power: 100 W
• Left Front Element-Burner Power: 3200 W
• Left Rear Element-Burner Power: 1300 W
• Right Front Element-Burner Power: 3200 W
• Right Rear Element-Burner Power: 1200 W
• Left Front Element-Burner Power: 3200 W
• Left Rear Element-Burner Power: 1300 W
• Right Front Element-Burner Power: 3200 W
• Right Rear Element-Burner Power: 1200 W
Burner/Element Size
• Center Front Element-Burner Size: 6"
• Left Front Element-Burner Size: 12"/9"/6"
• Left Rear Element-Burner Size: 6"
• Right Front Element-Burner Size: 10"
• Right Rear Element-Burner Size: 6"
• Left Front Element-Burner Size: 12"/9"/6"
• Left Rear Element-Burner Size: 6"
• Right Front Element-Burner Size: 10"
• Right Rear Element-Burner Size: 6"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
6.9 cu.ft.
Number of Ovens
Single
Features
Technologies
• Triple-Choice™ Element
• True Convection Technology
• Keep Warm™ Option
• True Convection Technology
• Keep Warm™ Option
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Rapid Boil Element
• 1,200-Watt 6-Inch Element
• 6-Inch Warm Zone Element
• Melt Element
• Telescoping Glide Rack
• Soft-Close Door
• 3,600-Watt Bake Element
• Hidden Bake Element
• 4,000-Watt Broil Element
• 3,200-Watt True Convection Element
• Auto Convection Conversion
• Proofing Option
• Offset Rack
• Glass-Touch Electronic Controls
• 1,200-Watt 6-Inch Element
• 6-Inch Warm Zone Element
• Melt Element
• Telescoping Glide Rack
• Soft-Close Door
• 3,600-Watt Bake Element
• Hidden Bake Element
• 4,000-Watt Broil Element
• 3,200-Watt True Convection Element
• Auto Convection Conversion
• Proofing Option
• Offset Rack
• Glass-Touch Electronic Controls
Drawer Features
Baking
Yes
Electrical Information
Information
240 V
Certifications and Approvals
Sabbath/Star-K
Yes
Accessories
Optional
• Range Trim Kit, Stainless: W10675028
• Range Trim Kit, Black: W10675026
• 6" Range Backsplash, Stainless: W10655450
• 6" Range Backsplash, Black: W10655449
• Baking Stone: 4378577
• Porcelain Broiler Pan and Grid: 4396923
• Wok: AO142
• Range Trim Kit, Black: W10675026
• 6" Range Backsplash, Stainless: W10655450
• 6" Range Backsplash, Black: W10655449
• Baking Stone: 4378577
• Porcelain Broiler Pan and Grid: 4396923
• Wok: AO142
Dimensions
Class Width
30"
Width
29.88 inch(es) / 75.9 cm
Height
35.98 inch(es) / 91.4 cm
Depth (Without Handles)
27.83 inch(es) / 70.7 cm
Depth (Including Handles)
28.31 inch(es) / 71.9 cm
Warranty
Warranty
Limited 1 Year Parts and Labor
UPC
UPC#
883049329642
Features
TRIPLE-CHOICE™ ELEMENT
Reaching a searing 3,000 watts, this versatile, three-tiered element accommodates a wide range of cookware sizes to match cooking needs with heating efficiency.
Additional Features
KEEP WARM™ FUNCTION
This function, available on all induction elements, keeps foods and delicate sauces at their ideal serving temperatures while other items finish cooking.
AUTO CONVECTION MODES
Easily cook a variety of different foods at their ideal temperatures with preset cooking cycles that automatically adjust temperature and air flow for perfect baking, roasting, or broiling.
PROOFING OPTION
An option that maintains a low, consistent temperature to provide fast, even rises and protect dough from changes in temperature, whether in the oven or in the baking drawer.
TELESCOPING GLIDE RACK
This roll-out rack lets you easily position and remove dishes.
AUTO CONVECTION CONVERSION
Automatically converting conventional cook time and/or temperature from any recipe to the appropriate convection settings, this function takes the guesswork out of convection cooking while giving you consistent, effortless results.
BAKING DRAWER
Adding additional baking capacity, our baking drawer offers an array of options for cooking and entertaining and provides a convenient alternative to oven baking and roasting, while still giving you the option to keep food warm, proof bread and warm plates before serving.
OFFSET RACK
This full-width oven rack is designed to add extra space for your tall bakeware in the lower rack position.
SOFT-CLOSE DOOR
Soft-Close technology lets the oven door close softly, quietly, securely.
RAPID BOIL ELEMENT
3,200 watts of power boils liquid quickly, and the element?s wide temperature range adds flexibility to simmer sauces and cook foods at low temperatures.
RADIANT ELEMENTS

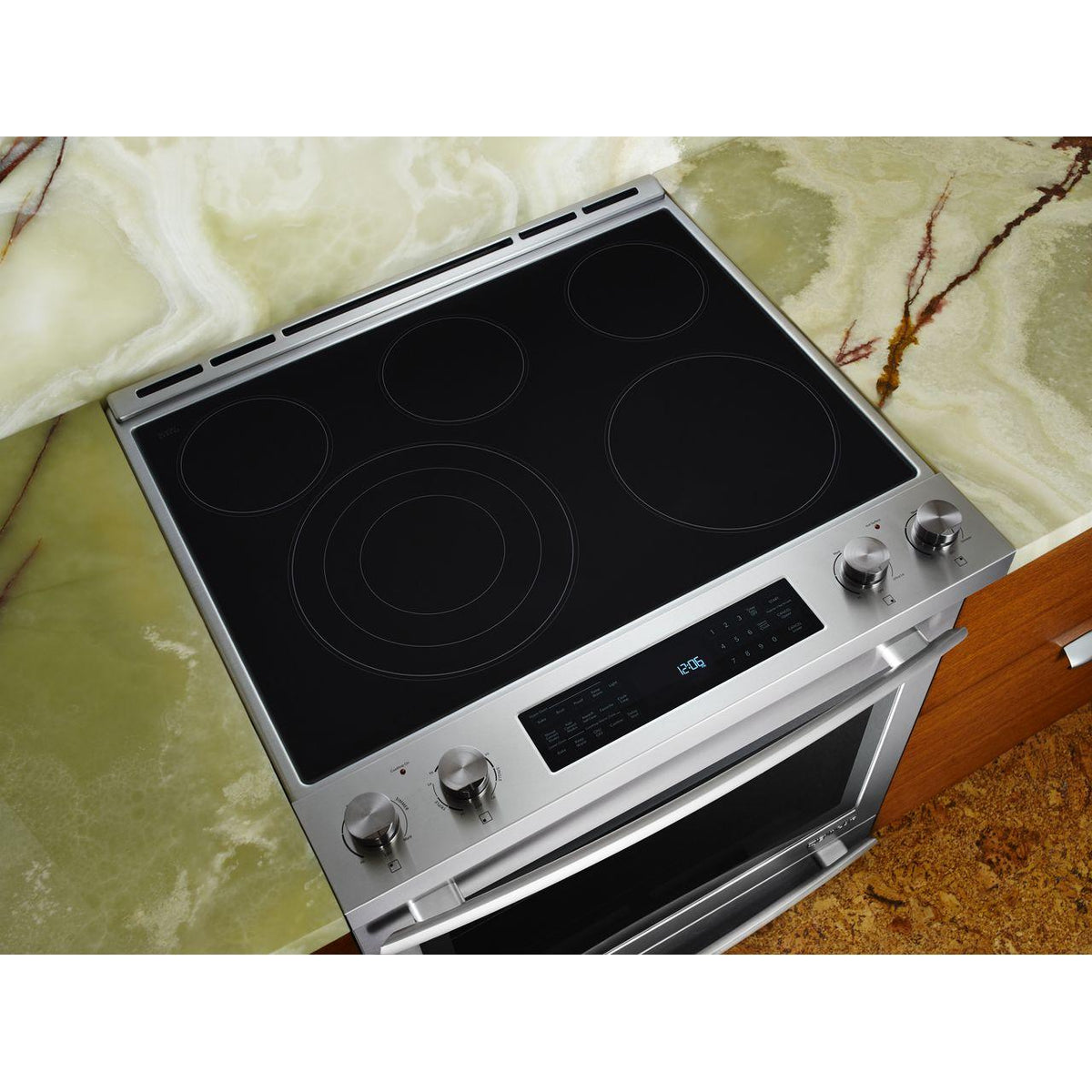

Located beneath a smooth, glass-ceramic cooktop, these responsive electric elements transfer heat efficiently to your cookware.
AQUALIFT® SELF CLEANING TECHNOLOGY
Jenn-Air industry-first oven cleaning technology finishes in under one hour, using water and a lower temperature. This technology minimizes the time, temperature and the odors that typically come from standard, self-cleaning oven models.
