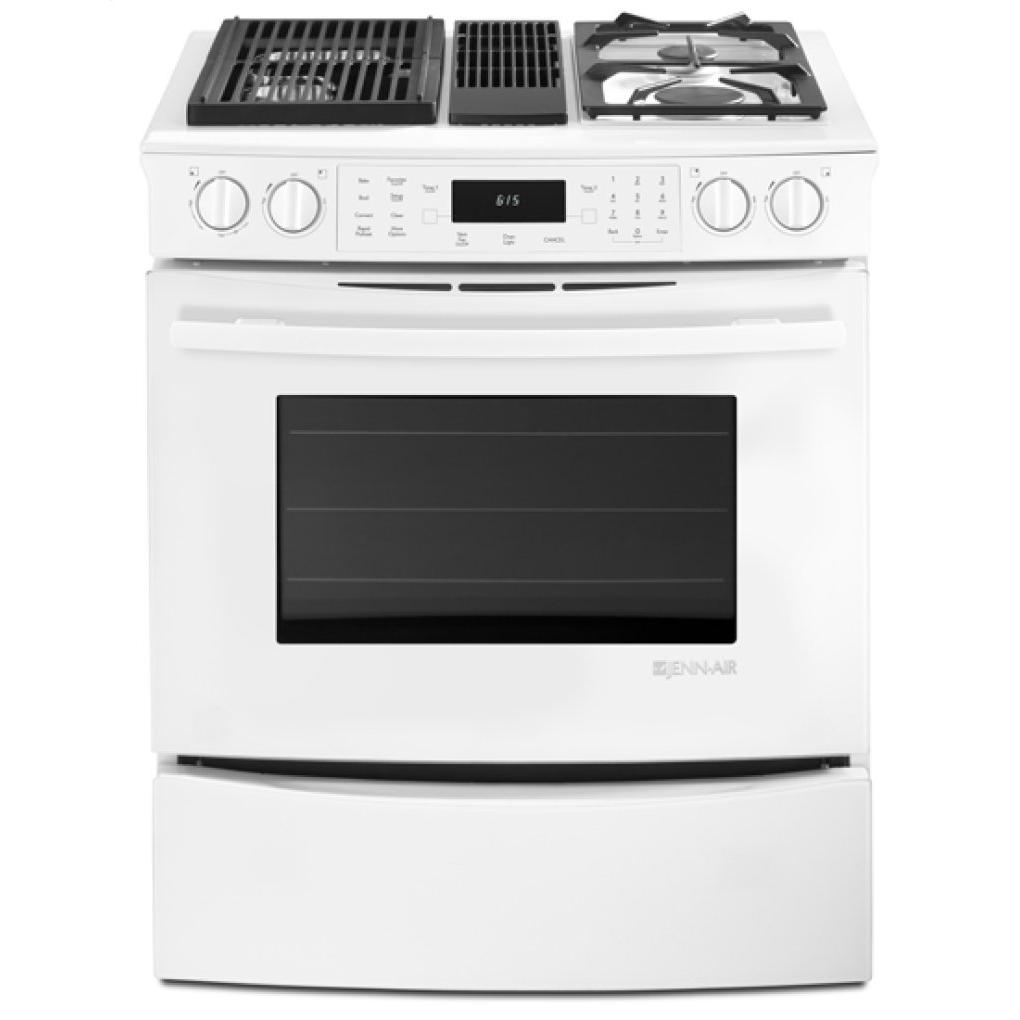

This versatile Jenn-Air® modular dual-fuel downdraft range offers the precision of gas with the consistent heat of electric, and the ability to reconfigure the cooking surface based on your preferred cooking style. It features a built-in downdraft ventilation system that clears the air without a hood, as well as powerful MultiMode® convection for beautifully even baking and roasting.
$0.00
Specifications
General
Fuel Type
Dual Fuel - Natural Gas
Installation Type
Slide-in
Color
White
Manufacturer Color
White
Cooktop
Burners/Elements
4
Burners/Elements Output
• Left Front Element-Burner Power Grill: 8,500 BTU
• Left Rear Element-Burner Power Grill: 8,500 BTU
• Right Front Element-Burner Power Sealed: 16,000 BTU
• Right Rear Element-Burner Power Simmer: 5,000 BTU
• Left Rear Element-Burner Power Grill: 8,500 BTU
• Right Front Element-Burner Power Sealed: 16,000 BTU
• Right Rear Element-Burner Power Simmer: 5,000 BTU
Burners
Sealed
Other
Custom
Oven
Capacity (cu. ft.)
4.3 cu.ft.
Number of Ovens
Single
Programs
• Convection Broil
• Convection Bake
• Convection Roast
• Clock
• Control Lock
• Cook and Hold
• Delay Start
• Rapid Preheat
• Sabbath Mode
• Simmer
• Temperature Probe
• Timer
• Warm Hold
• Convection Bake
• Convection Roast
• Clock
• Control Lock
• Cook and Hold
• Delay Start
• Rapid Preheat
• Sabbath Mode
• Simmer
• Temperature Probe
• Timer
• Warm Hold
Features
Technologies
• Two-Speed MultiMode® Convection System
• E-ven Heat™ Grill Assembly
• Excalibur® Nonstick Grill Grate Finish
• MultiMode® Convection Technology
• E-ven Heat™ Grill Assembly
• Excalibur® Nonstick Grill Grate Finish
• MultiMode® Convection Technology
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
Yes
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Downdraft Ventilation with Two-Speed Fan
• Modular Design
• Auto Convection Conversion
• Convertible to LP
• Menu-Driven Electronic Oven Controls
• 3 Oven Racks
• 5 Rack Guides
• Hidden Bake Element
• Modular Design
• Auto Convection Conversion
• Convertible to LP
• Menu-Driven Electronic Oven Controls
• 3 Oven Racks
• 5 Rack Guides
• Hidden Bake Element
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 V
• 60 Hz
• 40 A
• 60 Hz
• 40 A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
Yes
Dimensions
Class Width
30"
Width
30.75 inch(es) / 78.11 cm
Height
37.6 inch(es) / 95.5 cm
Depth (Without Handles)
26.77 inch(es) / 68.0 cm
Depth (Including Handles)
28.82 inch(es) / 73.2 cm
Warranty
Warranty
Limited 2 Years Parts and Labor
UPC
UPC#
883049183350
Features
DOWNDRAFT VENTILATION WITH TWO-SPEED FAN
This luxury modular dual-fuel downdraft range’s powerful ventilation system captures smoke and odors right at the surface as you cook, clearing the air beautifully without a hood.
TWO SEALED BURNERS
The sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.
MENU-DRIVEN ELECTRONIC OVEN CONTROLS
These intuitive controls allow you to effortlessly navigate through menu options and settings.
Additional Features
EXCALIBUR® NONSTICK GRILL GRATE FINISH
A finish on Jenn-Air® grill grates that produces superior release capabilities through a four-step manufacturing process. It keeps food from sticking to the grill, making grilling and cleanup easy.
AUTO CONVECTION CONVERSION
This convenient feature automatically converts conventional cook time and/or temperature from any recipe to the appropriate convection settings, taking the guesswork out of convection cooking for consistent, effortless results.
E-VEN HEAT™ GRILL ASSEMBLY
This luxury downdraft rangetop’s “E”-shaped burner delivers even heat across the entire grill surface, providing beautifully even indoor grilling.
16,000 BTU POWERBURNER
This high-heat burner offers a powerful output to help you achieve superb results when searing or flash frying.
TWO 8,500 BTU BURNERS (GRILL ASSEMBLY)
These versatile burners offers power appropriate for a variety of cooking techniques like sautéing and braising.
5,000 BTU ULTRA-LOW OUTPUT BURNER
This burner offers heat from 5,000 to a gentle 650 BTUs, to provide the control you need when melting butter or simmering delicate sauces.
