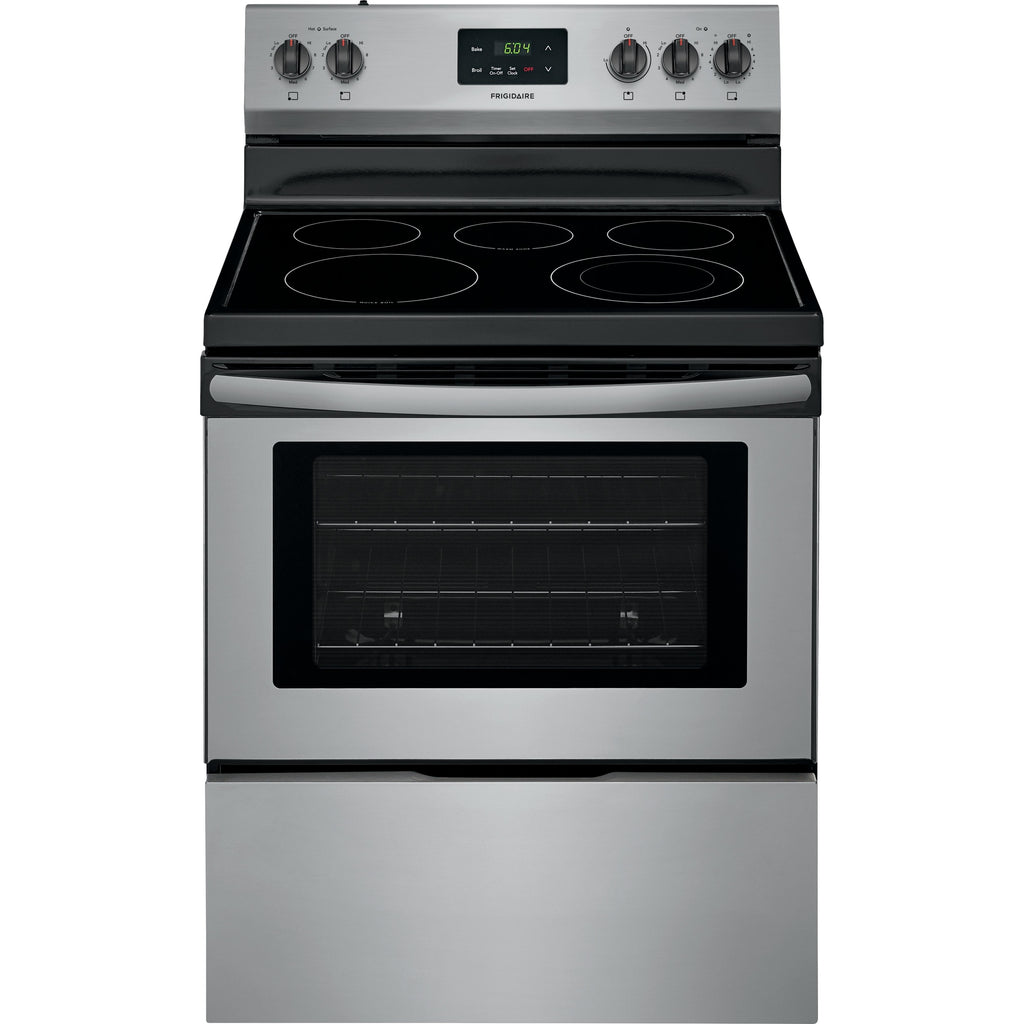

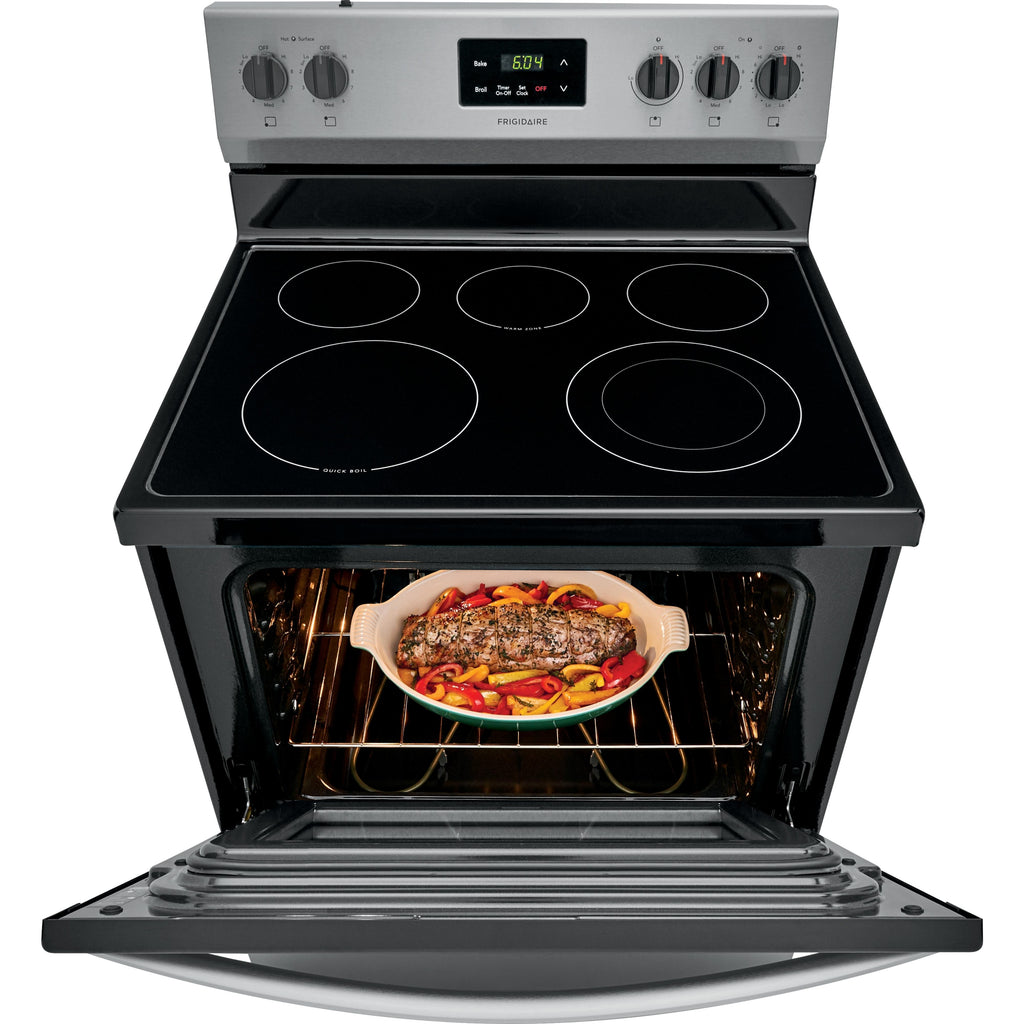

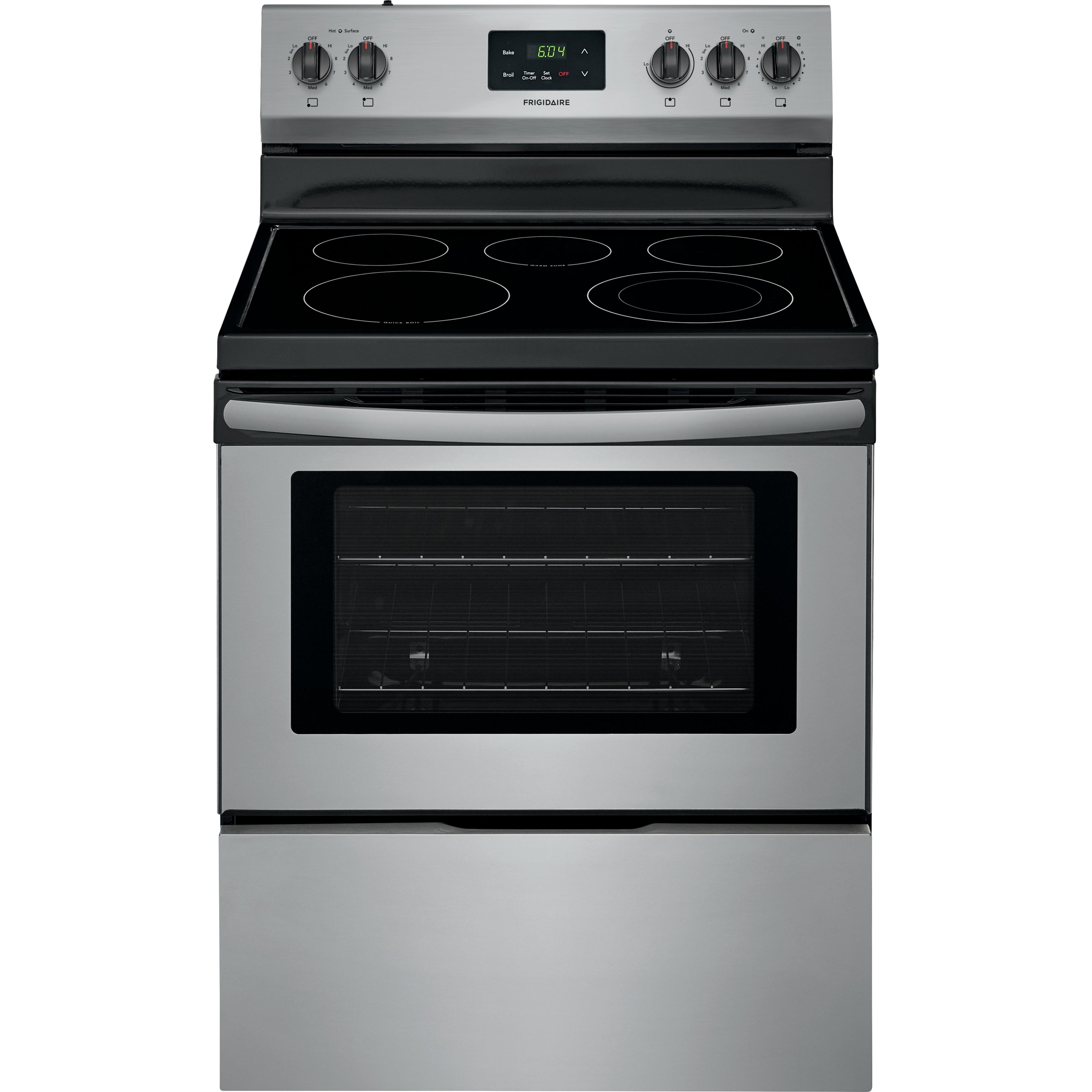

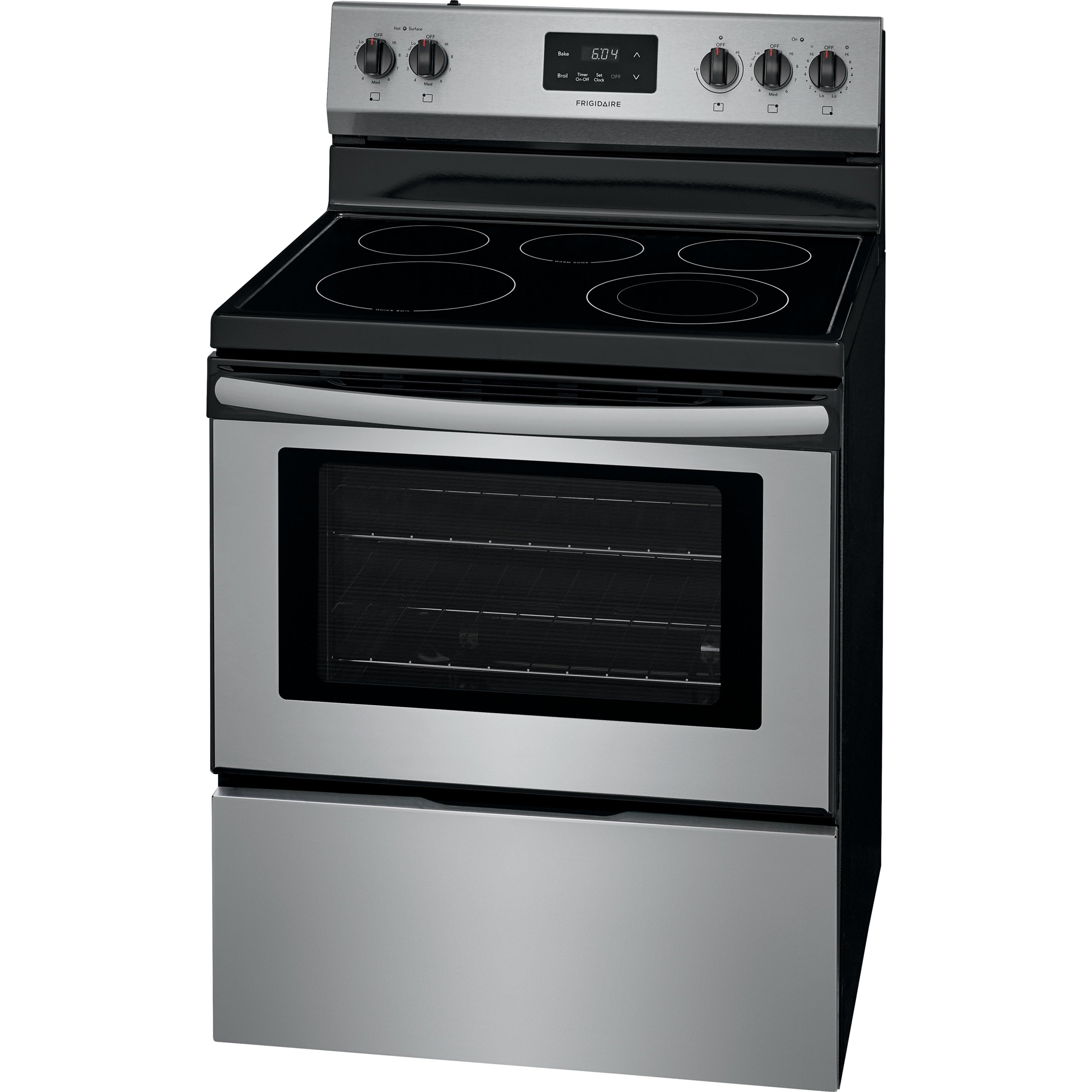

This Frigidaire 30", 4.8 cu. ft. freestanding electric range features 5 elements, flexible elements expand to meet your cooking needs — big or small and Store-More™ storage drawer.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right front: 1400 / 3000 W
• Right rear: 1200 W
• Left front: 3000 W
• Left rear: 1200 W
• Center: 100 W
• Bake element: 2,600W
• Broil element: 3,000W
• Right rear: 1200 W
• Left front: 3000 W
• Left rear: 1200 W
• Center: 100 W
• Bake element: 2,600W
• Broil element: 3,000W

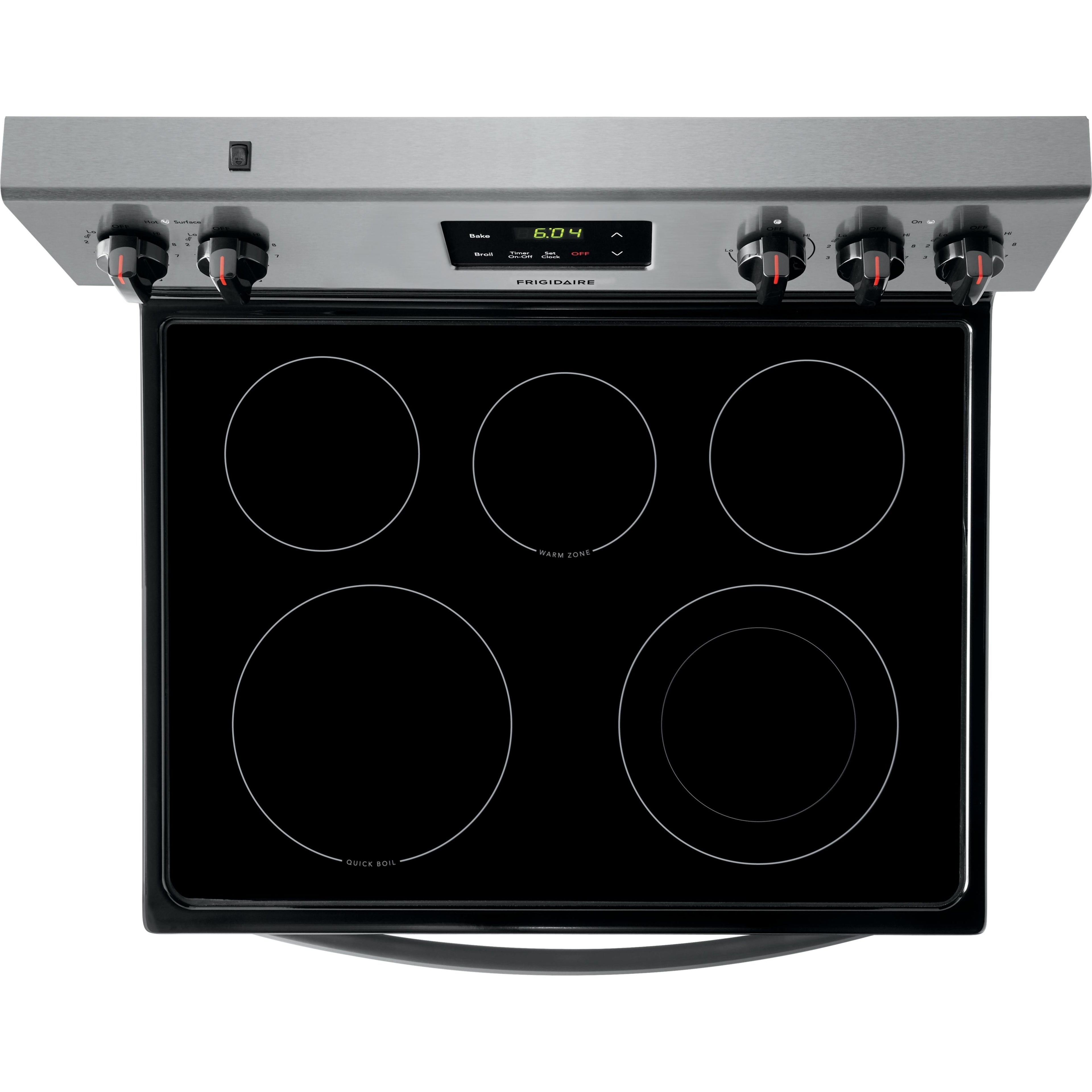

Burner/Element Size
• Right front: 6" / 9"(SpaceWise® expandable)
• Right rear: 6"
• Left front: 9"
• Left rear: 6"
• Center: Keep warm zone
• Right rear: 6"
• Left front: 9"
• Left rear: 6"
• Center: Keep warm zone
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.8
Number of Ovens
Single
Programs
• Bake
• Broil
• Kitchen timer
• Timed cook option
• Broil
• Kitchen timer
• Timed cook option
Features
Technologies
• SpaceWise® expandable element

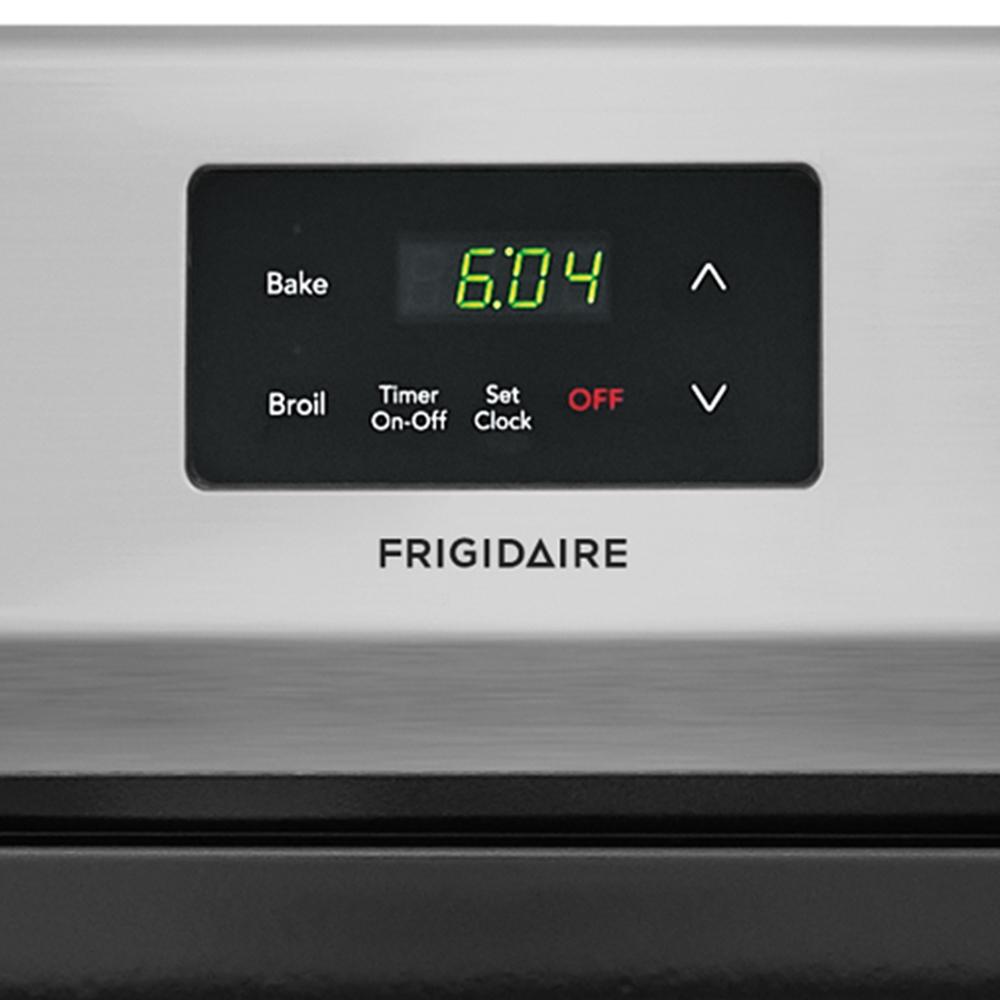

• Ready-Select® controls
• Store-More™ storage drawer
• EasyCare™ stainless steel
• Vari-Broil™ Hi/Lo
• Even baking technology
• Ready-Select® controls
• Store-More™ storage drawer
• EasyCare™ stainless steel
• Vari-Broil™ Hi/Lo
• Even baking technology
Control Lock
No
Delay Bake/Start
No
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Wi-Fi
No
Additional Information
• Black ceramic glass surface
• Extra-large window
• Hot surface indicator light
• Element "On" indicator light
• 1 incandescent oven light
• 2 standard rack configuration
• Extra-large window
• Hot surface indicator light
• Element "On" indicator light
• 1 incandescent oven light
• 2 standard rack configuration
Drawer Features
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
• Voltage rating: 240V / 208V / 60Hz
• Connected load (kW rating) @ 240 / 208 Volts: 12.5 / 9.5
• Minimum circuit required: 40 Amps
• Connected load (kW rating) @ 240 / 208 Volts: 12.5 / 9.5
• Minimum circuit required: 40 Amps
Certifications and Approvals
ADA Compliant
No
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47 inch(es) / 119.38 cm
Depth (Including Handles)
28.5 inch(es) / 72.39 cm
Additional Dimensions
• Oven interior (H x W x D): 19-3/4" x 23" x 18-3/4"
• Depth with door open 90: 45"
• Cabinet cutout height:36"
• Cabinet cutout width: 30"
• Cabinet cutout depth: 24"
• Depth with door open 90: 45"
• Cabinet cutout height:36"
• Cabinet cutout width: 30"
• Cabinet cutout depth: 24"
Shipping Dimensions
Weight
164.99 lb(s) / 74.84 kg
Warranty
Warranty
Limited 1 year parts and labor
Features

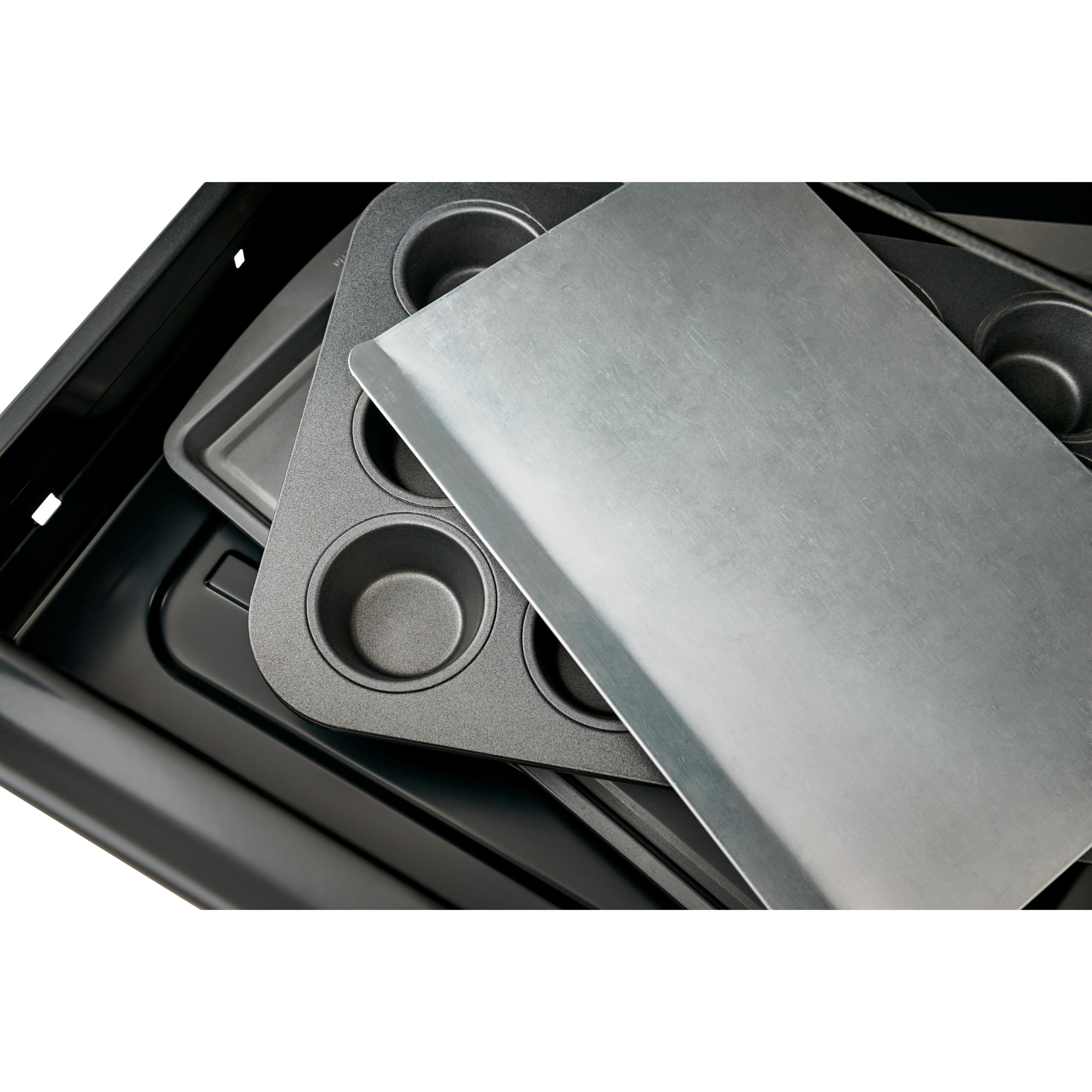

STORE-MORE™ STORAGE DRAWER
The convenient drawer gives you extra storage space in your kitchen.
QUICK BOIL
Get meals on the table faster with a 3,000 W element - water boils faster than the traditional setting.

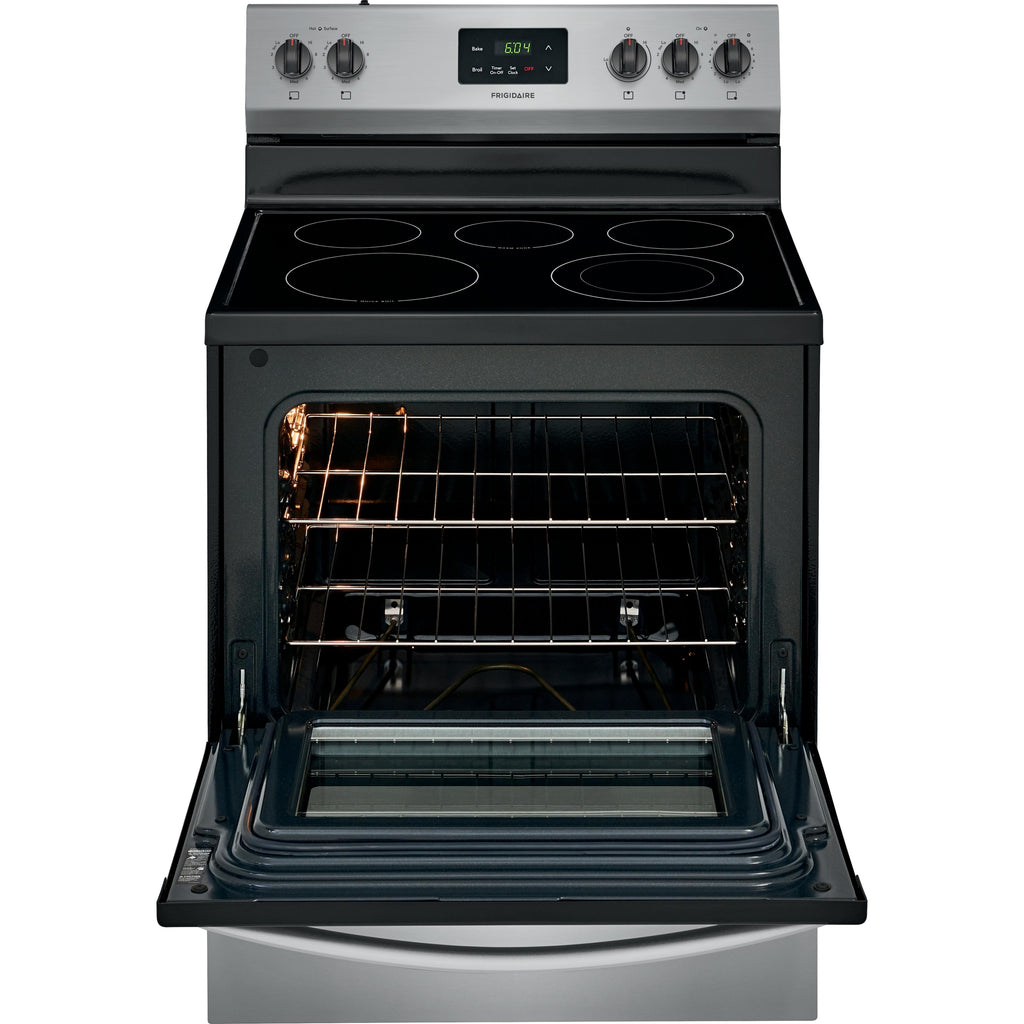

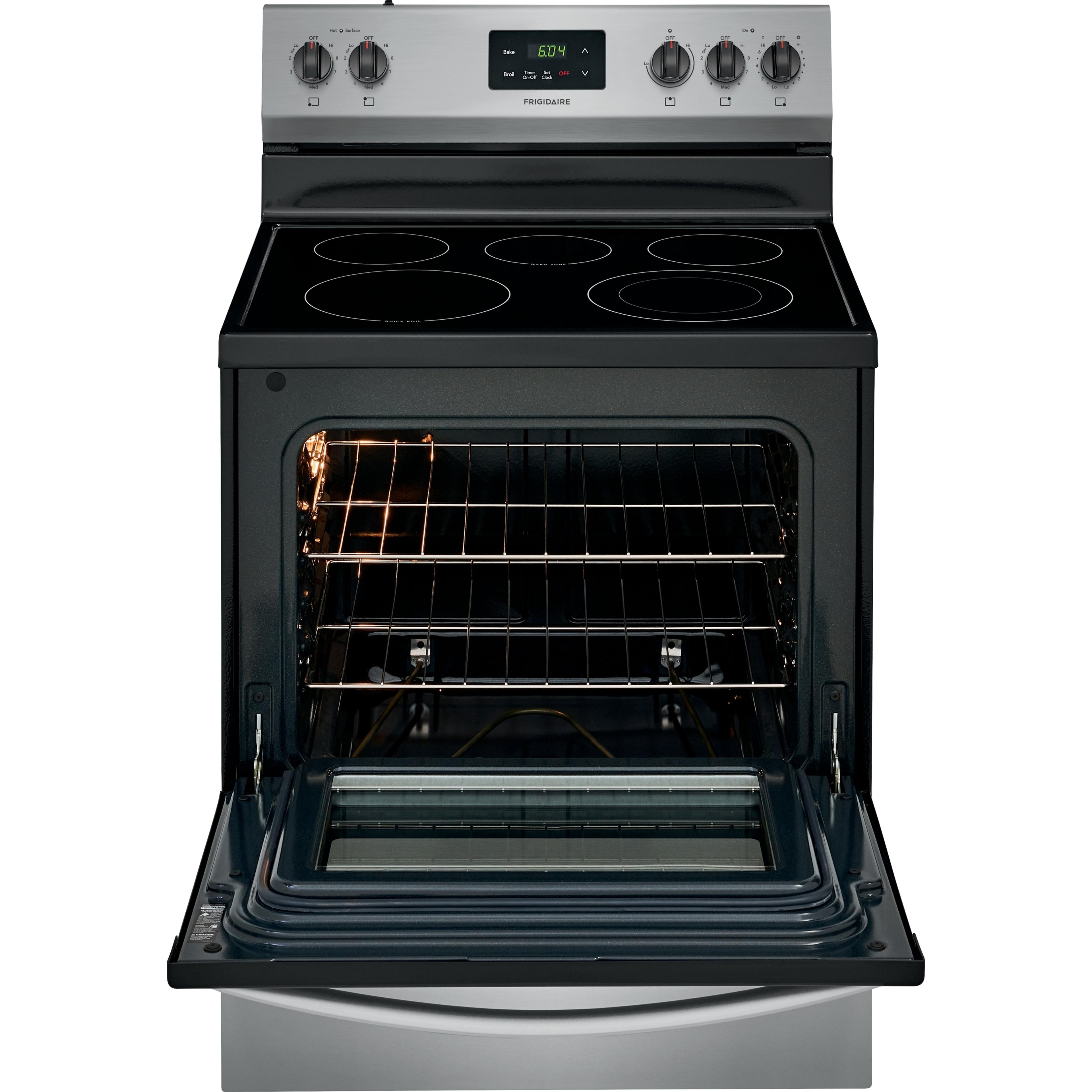

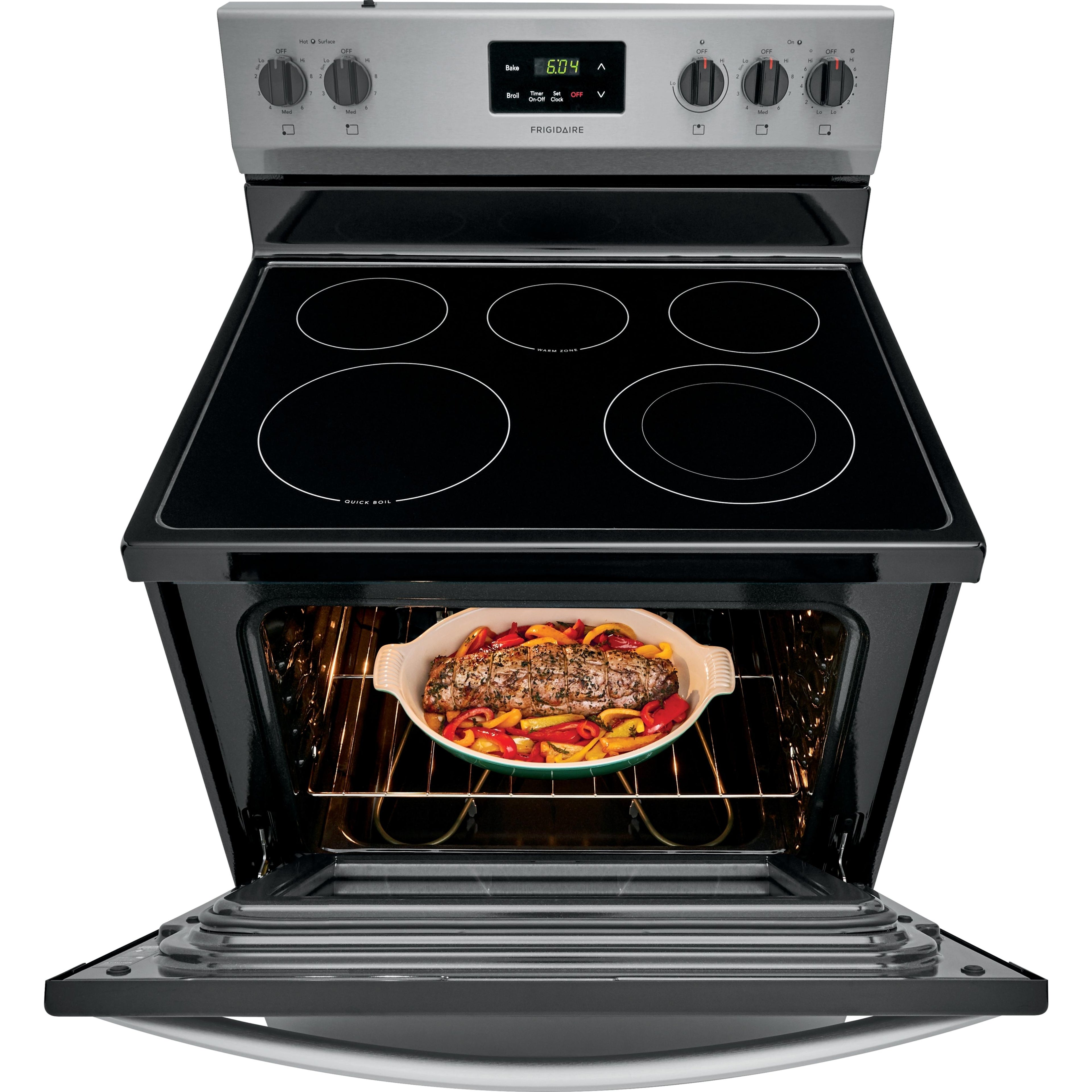

EXTRA-LARGE WINDOW
The extra-large oven window lets you easily see what's inside.
SPACEWISE® EXPANDABLE ELEMENTS
Flexible elements expand to meet your cooking needs - big or small.
Additional Features
KEEP WARM ZONE
Keep food warm until everything — and everyone — is ready.
VARI-BROIL™
Vari-Broil™ temperature control allows you to choose between two heat levels(400F- 550F Degrees).
