Frigidaire 30" drop-in electric range with 4 coil elements. This range features delay clean, Ready-Select® controls and multiple broil options. Its oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Drop-in
Color
Black
Manufacturer Color
Black on black

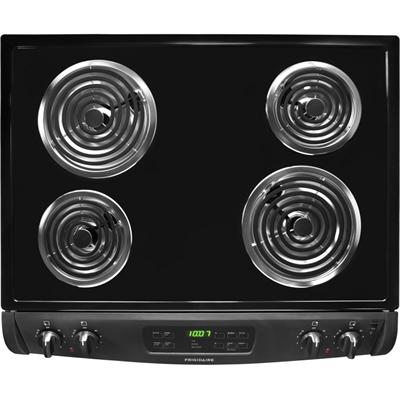

Cooktop
Burners/Elements
4
Burners/Elements Output
• Left front: 1,500 W
• Left rear: 2,600 W
• Right front: 2,600 W
• Right rear: 1,500 W
• Bake: 6 pass 2,750 W
• Broil: 6 pass 3,400 W
• Left rear: 2,600 W
• Right front: 2,600 W
• Right rear: 1,500 W
• Bake: 6 pass 2,750 W
• Broil: 6 pass 3,400 W
Burner/Element Size
• Left front: 8"
• Left rear: 6"
• Right front: 6"
• Right rear: 8"
• Left rear: 6"
• Right front: 6"
• Right rear: 8"
Elements
Coil
Oven
Capacity (cu. ft.)
4.6 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Broil (low and high)
• Broil (low and high)
Features
Technologies
• Even baking technology
• Ready-Select® controls
• Vari-Broil™ Hi/Lo.
• Ready-Select® controls
• Vari-Broil™ Hi/Lo.
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Extra-large window
• Self-clean: 2, 3 hours
• Delay clean: 2, 3 hours
• Slate blue interior oven
• Multiple broil options
• Timed cook option
• Auto oven shut-off: 12 hours
• Chrome drip bowls
• 2 handle racks
• Self-clean: 2, 3 hours
• Delay clean: 2, 3 hours
• Slate blue interior oven
• Multiple broil options
• Timed cook option
• Auto oven shut-off: 12 hours
• Chrome drip bowls
• 2 handle racks
Drawer Features
Indicator Light
No
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
• 240V/208V
• 60Hz
• 40A
• 60Hz
• 40A
Certifications and Approvals
ADA Compliant
Yes
Sabbath/Star-K
No
Accessories
Optional
• Black rear filler kit: 901193-9010
• Black backguard kit: 903046-9010
• Black side trim kit: 903076-9010
• Black bottom trim kit: 903068-9010
• Black backguard kit: 903046-9010
• Black side trim kit: 903076-9010
• Black bottom trim kit: 903068-9010
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
26.5 inch(es) / 67.31 cm
Depth (Without Handles)
28.31 inch(es) / 71.91 cm
Weight
130.01 lb(s) / 58.97 kg
Additional Dimensions
• Oven interior depth: 18-3/4"
• Oven interior height: 17-1/2"
• Oven interior width: 24-1/8
• Depth with door open 90° : 47-9/16"
• Oven interior height: 17-1/2"
• Oven interior width: 24-1/8
• Depth with door open 90° : 47-9/16"
Shipping Dimensions
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
Limited 1-year parts and labor.
UPC
UPC#
012505800450
Features
BUILT WITH AMERICAN PRIDE
Appliances that are high-performing, more accessible, and more innovative than ever—designed, built, and engineered in the U.S.A.

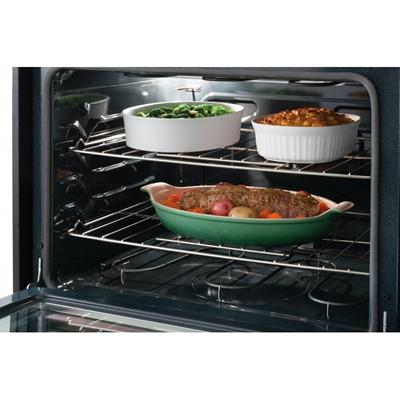

OVEN RACK HANDLES
Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
HI/LO BROIL OPTIONS
Offers two-position broiling and variable temperature control for more control.
EVEN BAKING TECHNOLOGY
Designed to deliver even baking results, every time.
EXTRA-LARGE WINDOW
The extra-large oven window lets you easily see what's inside.
ONE-TOUCH SELF CLEAN
Start the self-cleaning cycle with just the touch of a button.
Additional Features
READY-SELECT CONTROLS
Easily select options with the touch of a button.
DELAY CLEAN
Set the oven to begin cleaning on your schedule.
AUTO SHUT-OFF
As an extra safety measure, the oven will automatically shut off after 12 hours.
DELAY START BAKING OPTION
LARGE CAPACITY
The large capacity oven gives you room to cook more at once.
