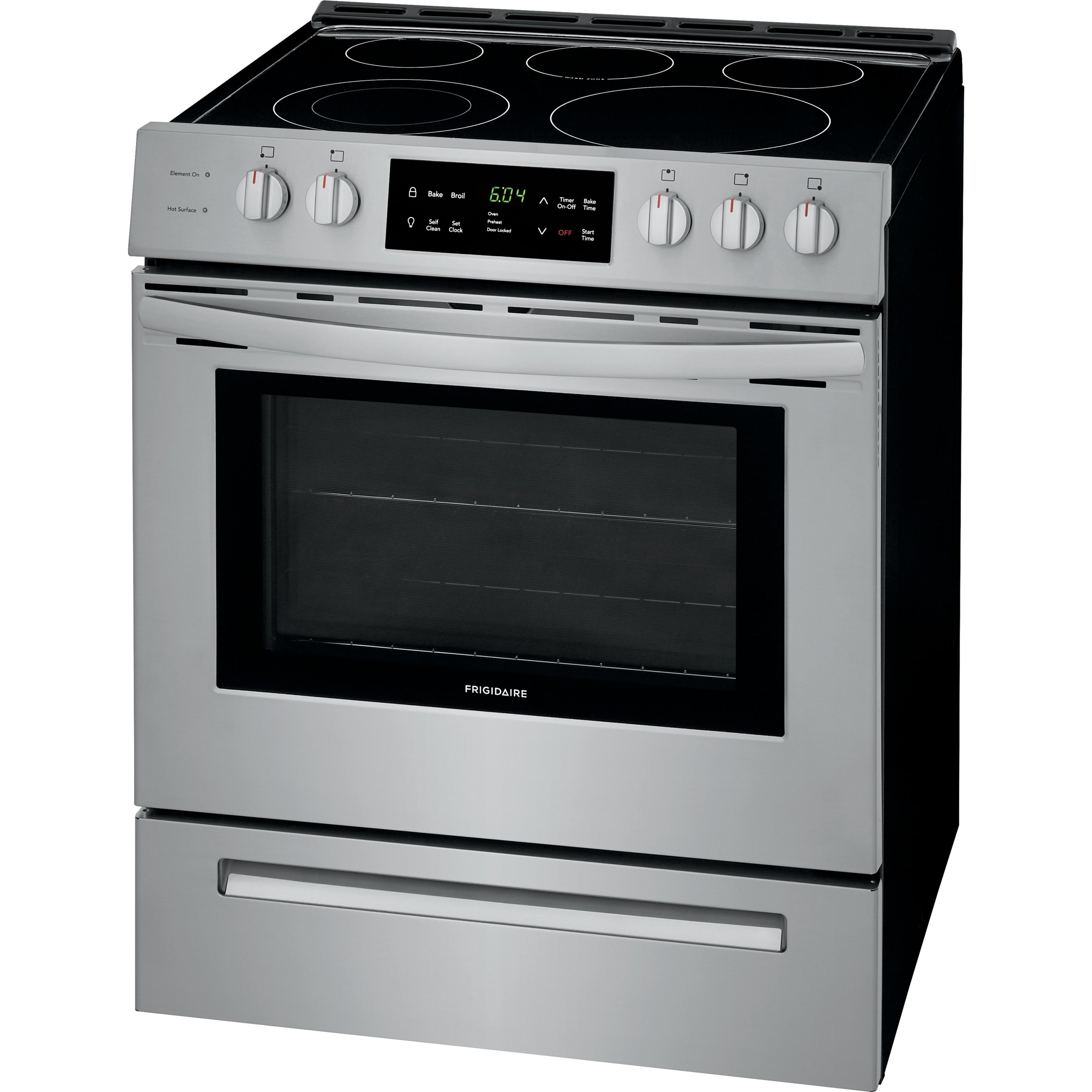

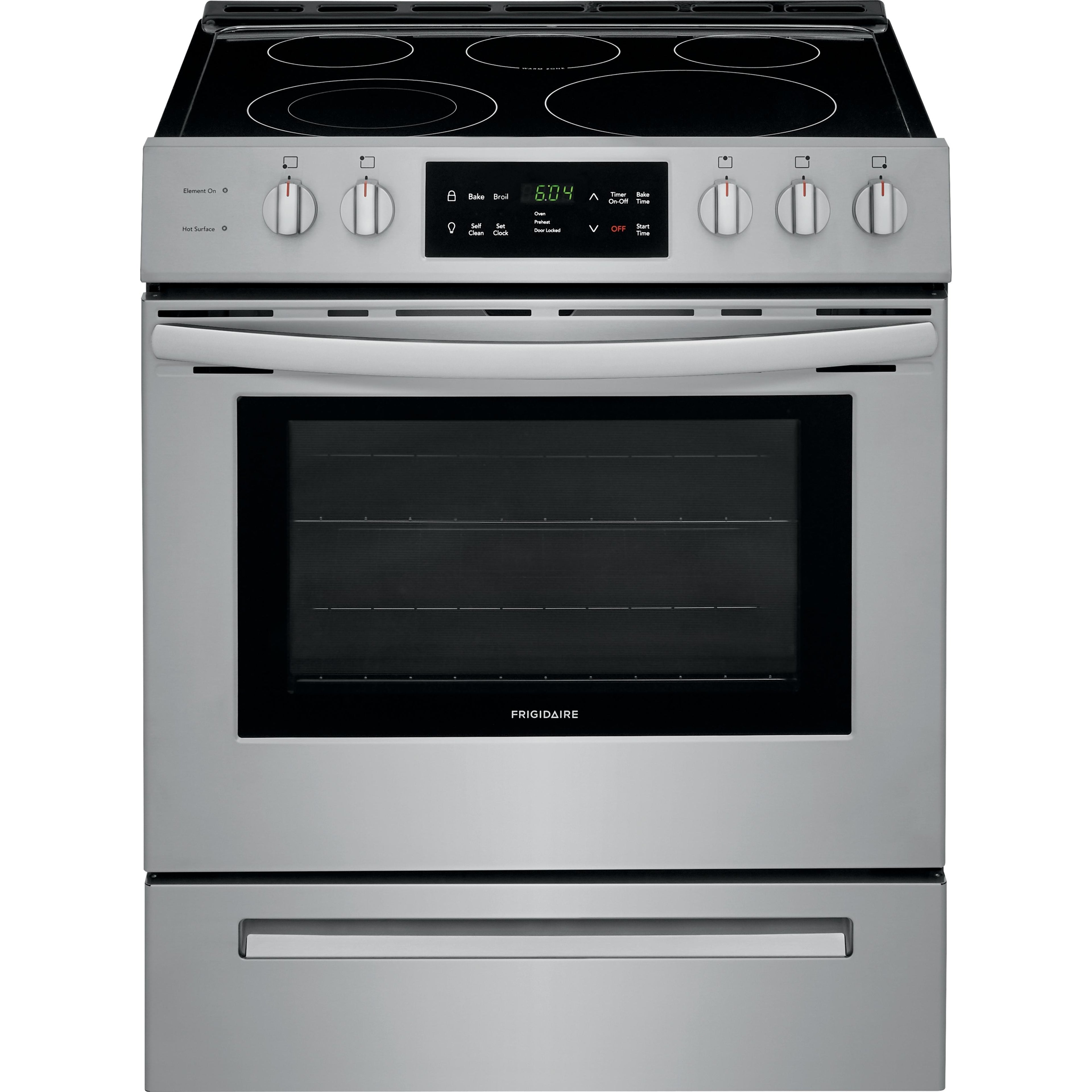

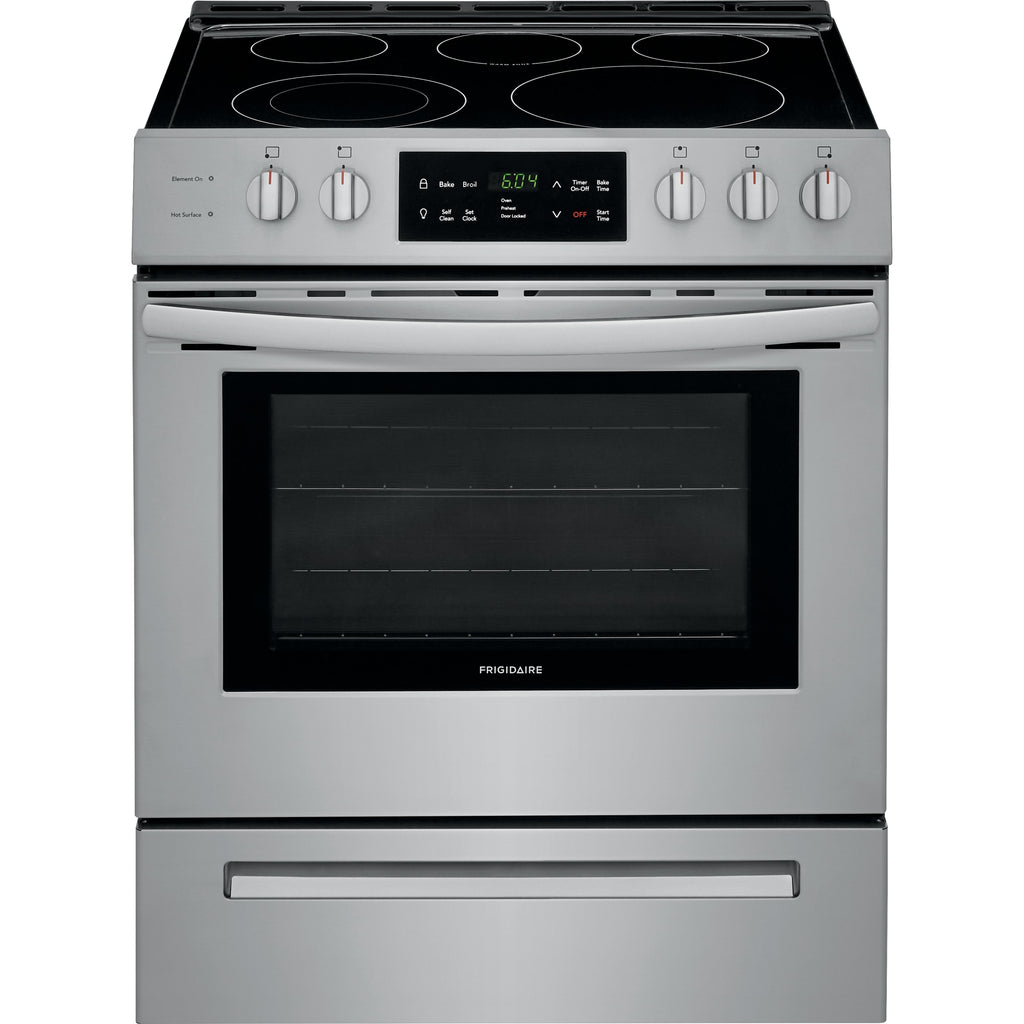

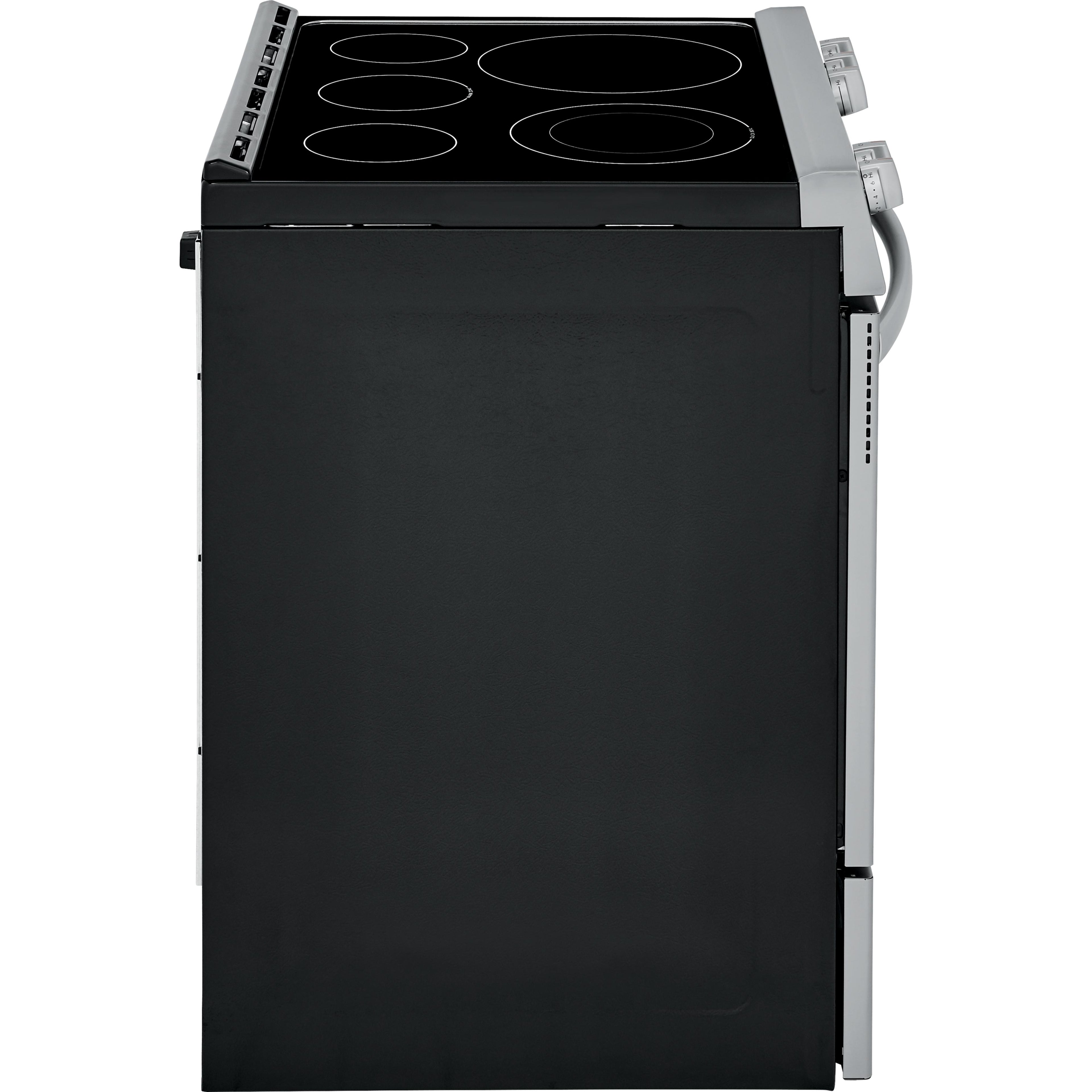

This Frigidaire 30", 5.0 cu. ft. freestanding electric range features 5 elements, flexible elements expand to meet your cooking needs — big or small, Store-More™ storage drawer and one-touch self-clean options available in 2- and 3-hour cycles.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless
Appliance Care
Self clean
Cooktop
Burners/Elements
5
Burners/Elements Output
• Right front: 2700 W
• Right rear: 1200 W
• Left front: 1400 / 3000 W
• Left rear: 1200 W
• Center: 100 W
• Bake element: 3,500W
• Broil element: 3,900W
• Right rear: 1200 W
• Left front: 1400 / 3000 W
• Left rear: 1200 W
• Center: 100 W
• Bake element: 3,500W
• Broil element: 3,900W

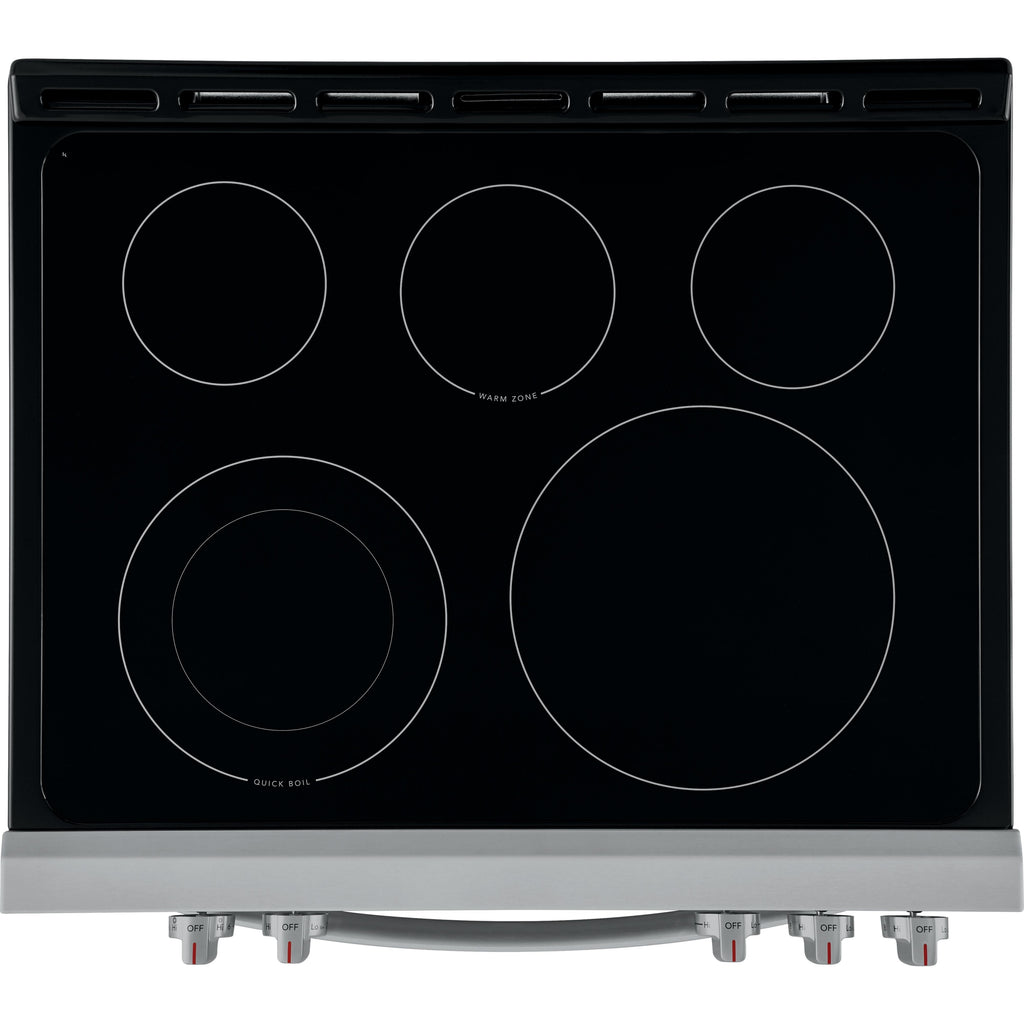

Burner/Element Size
• Right front: 12"
• Right rear: 6"
• Left front: 6"/9" (SpaceWise® expandable)
• Left rear: 6"
• Center: Keep warm zone
• Right rear: 6"
• Left front: 6"/9" (SpaceWise® expandable)
• Left rear: 6"
• Center: Keep warm zone
Elements
Smoothtop
Oven
Capacity (cu. ft.)
5.0
Number of Ovens
Single
Programs
• Bake
• Broil
• Delay bake
• Delay start
• Self-clean: 2, 3 hours
• Delay clean
• Kitchen timer
• Timed cook option
• 12 hours auto oven shut-off
• Oven lock-out
• Broil
• Delay bake
• Delay start
• Self-clean: 2, 3 hours
• Delay clean
• Kitchen timer
• Timed cook option
• 12 hours auto oven shut-off
• Oven lock-out
Features
Technologies
• SpaceWise® expandable element
• Ready-Select® controls
• Store-More™ storage drawer
• EasyCare™ stainless steel
• Vari-Broil™ Hi/Lo
• Even baking technology
• Ready-Select® controls
• Store-More™ storage drawer
• EasyCare™ stainless steel
• Vari-Broil™ Hi/Lo
• Even baking technology
Control Lock
No
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Black ceramic glass surface
• Extra-large window
• Hot surface indicator light
• Element "On" indicator light
• 1 incandescent 40W oven light
• 2 standard rack configuration
• Extra-large window
• Hot surface indicator light
• Element "On" indicator light
• 1 incandescent 40W oven light
• 2 standard rack configuration
Drawer Features
Baking
No
Broiler
No
Storage
Yes
Warming
No
Electrical Information
Information
• Voltage rating: 240V / 208V / 60Hz
• Connected load (kW rating) @ 240 / 208 Volts: 12.5 / 9.5
• Minimum circuit required: 40 Amps
• Connected load (kW rating) @ 240 / 208 Volts: 12.5 / 9.5
• Minimum circuit required: 40 Amps
Certifications and Approvals
ADA Compliant
Yes
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
36.63 inch(es) / 93.03 cm
Depth (Including Handles)
29.19 inch(es) / 74.14 cm
Additional Dimensions
• Oven interior (H x W x D): 18-5/8" x 24-3/8" x 19-1/8"
• Depth with door open 90: 47"
• Cabinet cutout height:36"
• Cabinet cutout width: 30"
• Cabinet cutout depth: 24"
• Depth with door open 90: 47"
• Cabinet cutout height:36"
• Cabinet cutout width: 30"
• Cabinet cutout depth: 24"
Shipping Dimensions
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
12505513503
Features

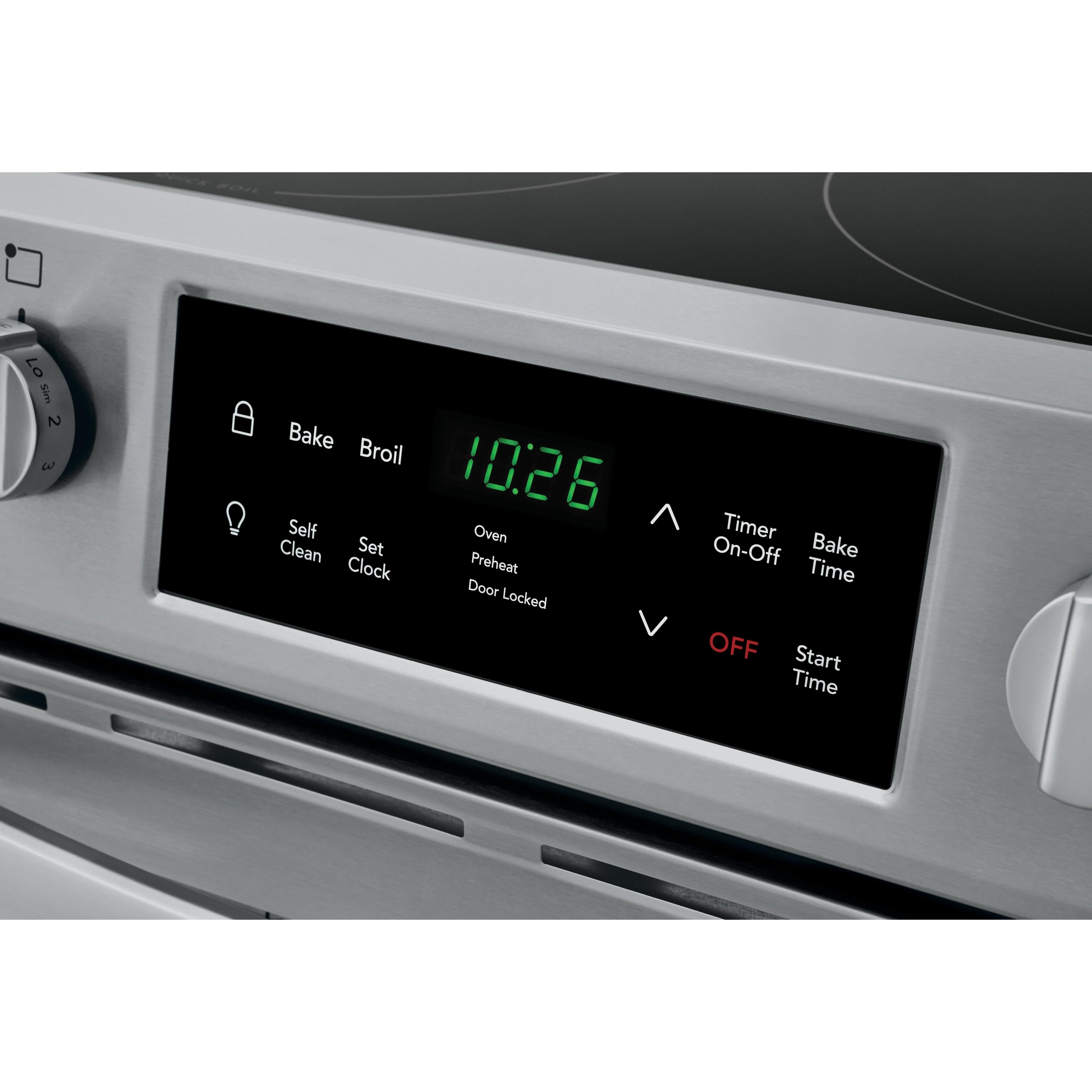

ONE-TOUCH SELF CLEAN
Start the self-cleaning cycle with just the touch of a button.

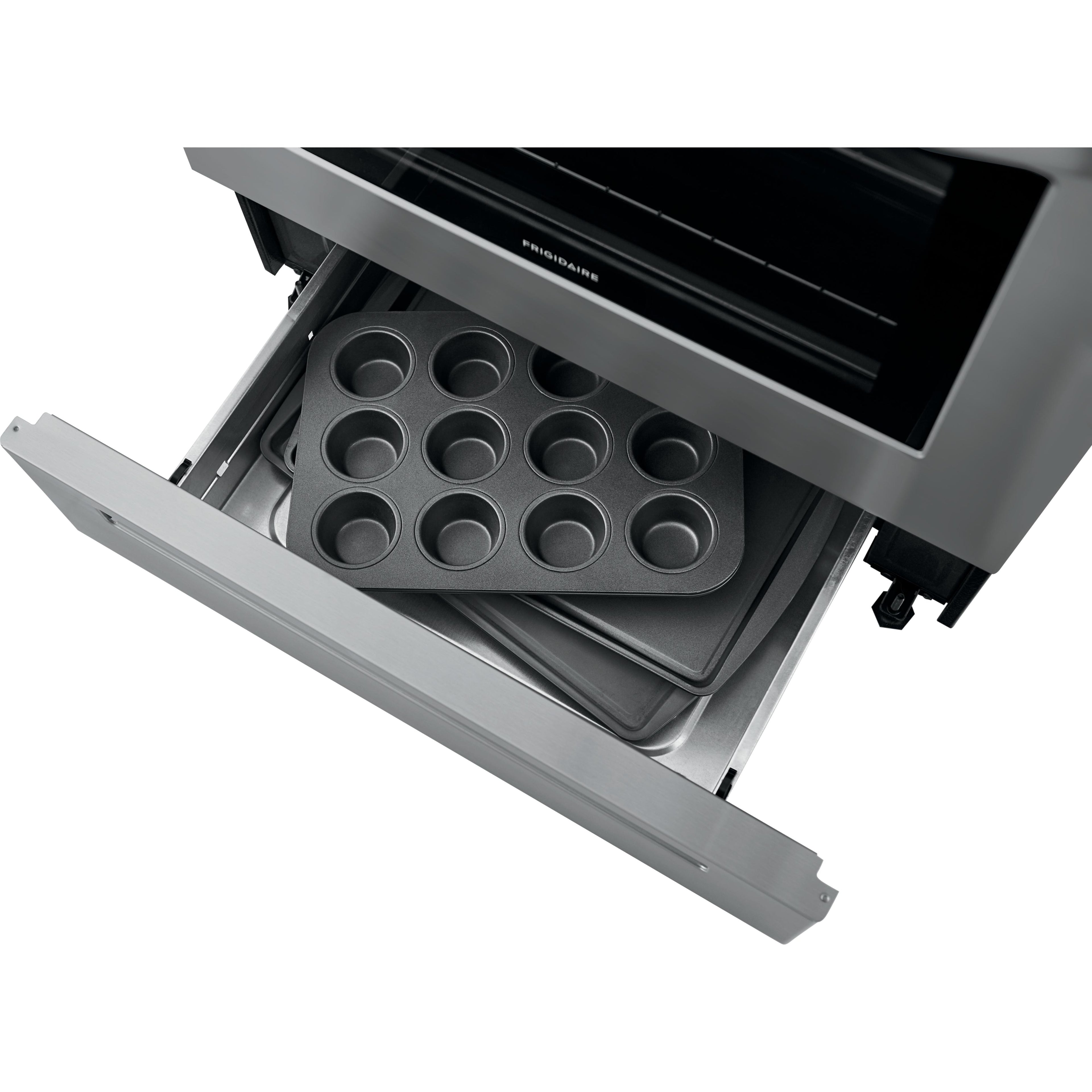

STORE-MORE™ STORAGE DRAWER
The convenient drawer gives you extra storage space in your kitchen.
UPGRADE YOUR KITCHEN WITH A BUILT-IN LOOK
Upgrade your kitchen and get the look of a built-in range, with the fit of a traditional freestanding range. The Frigidaire® front control freestanding range easily fits into a 30" cutout.
QUICK BOIL
Get meals on the table faster with a 3,000 W element - water boils faster than the traditional setting.

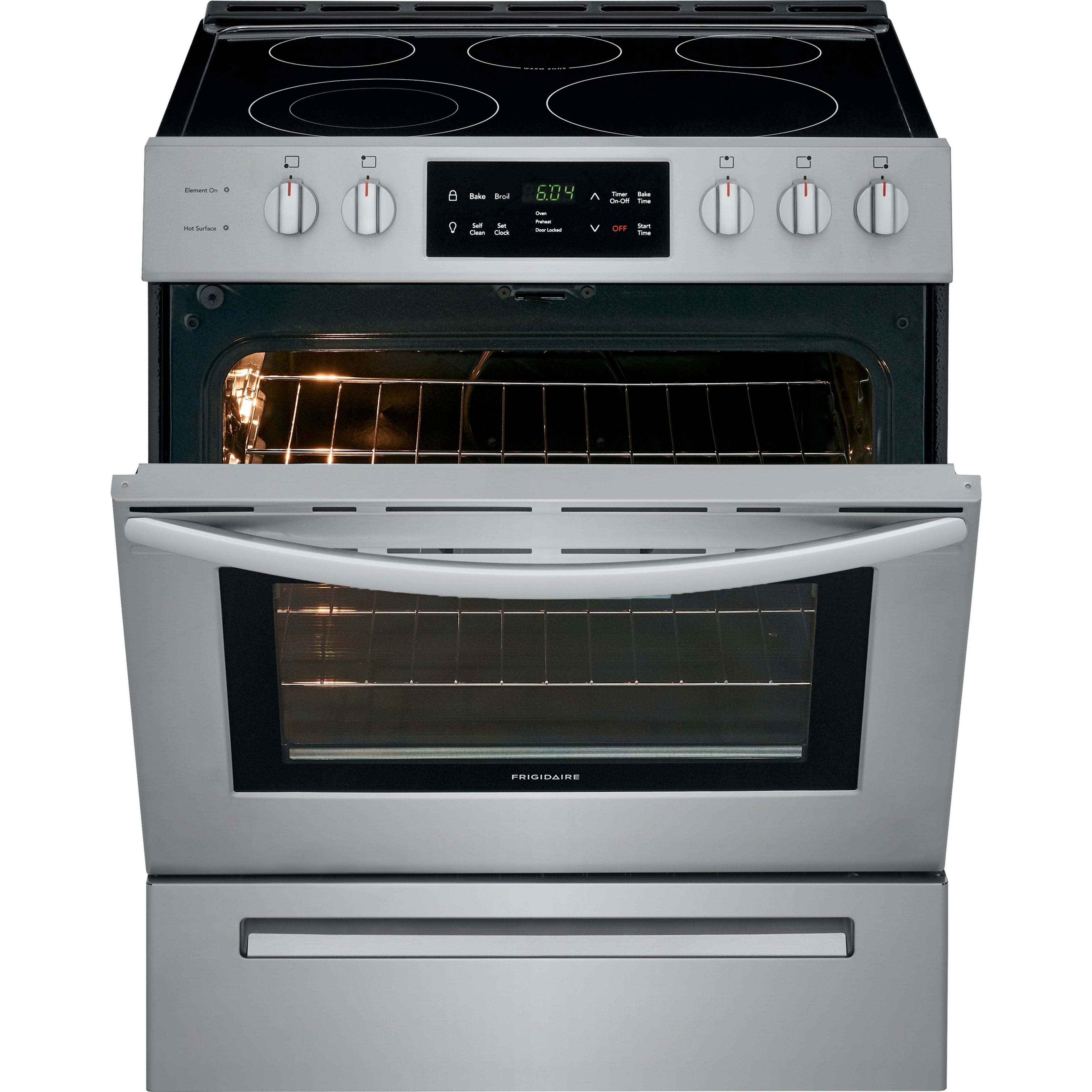

EXTRA-LARGE WINDOW
The extra-large oven window lets you easily see what's inside.
Additional Features

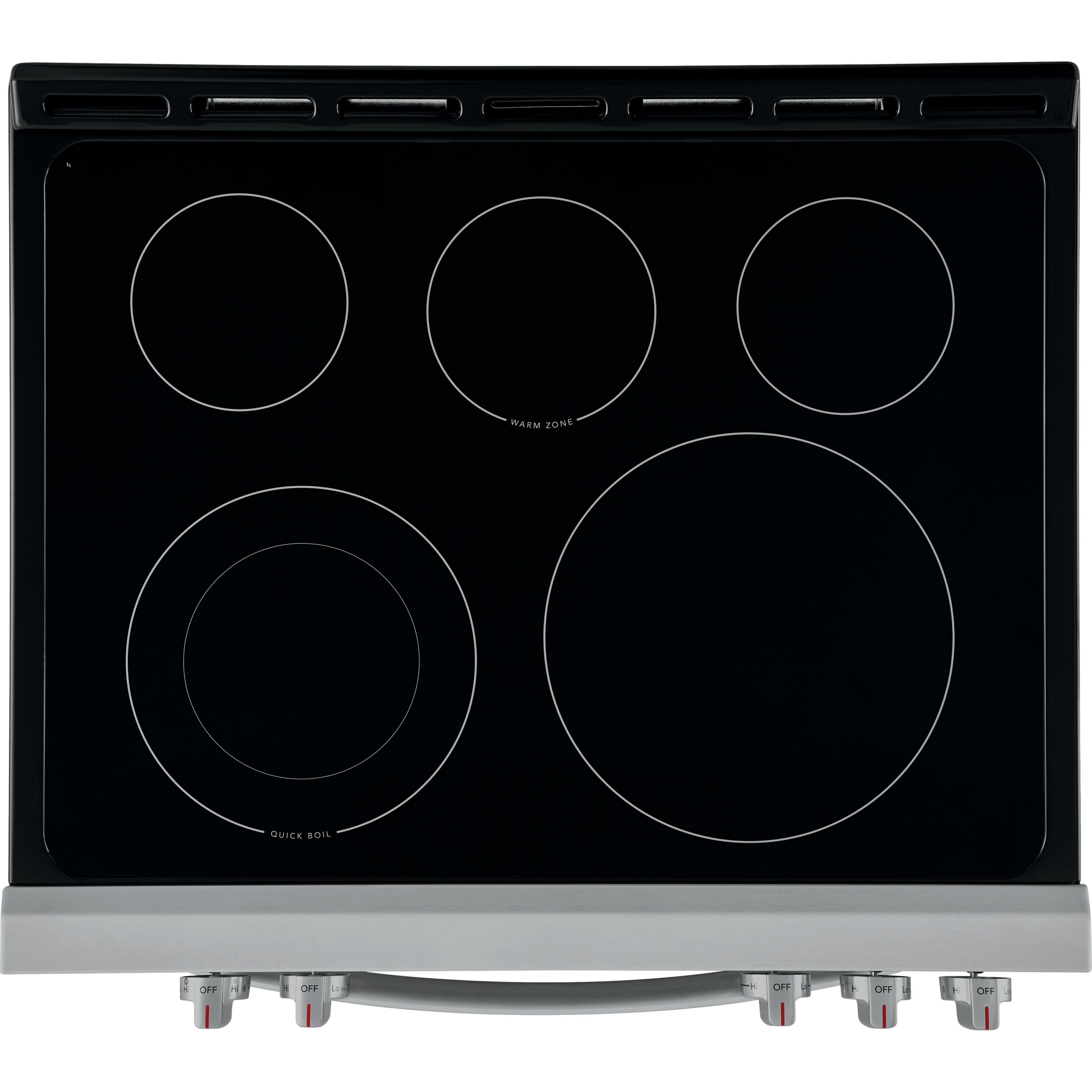

KEEP WARM ZONE
Keep food warm until everything — and everyone — is ready.

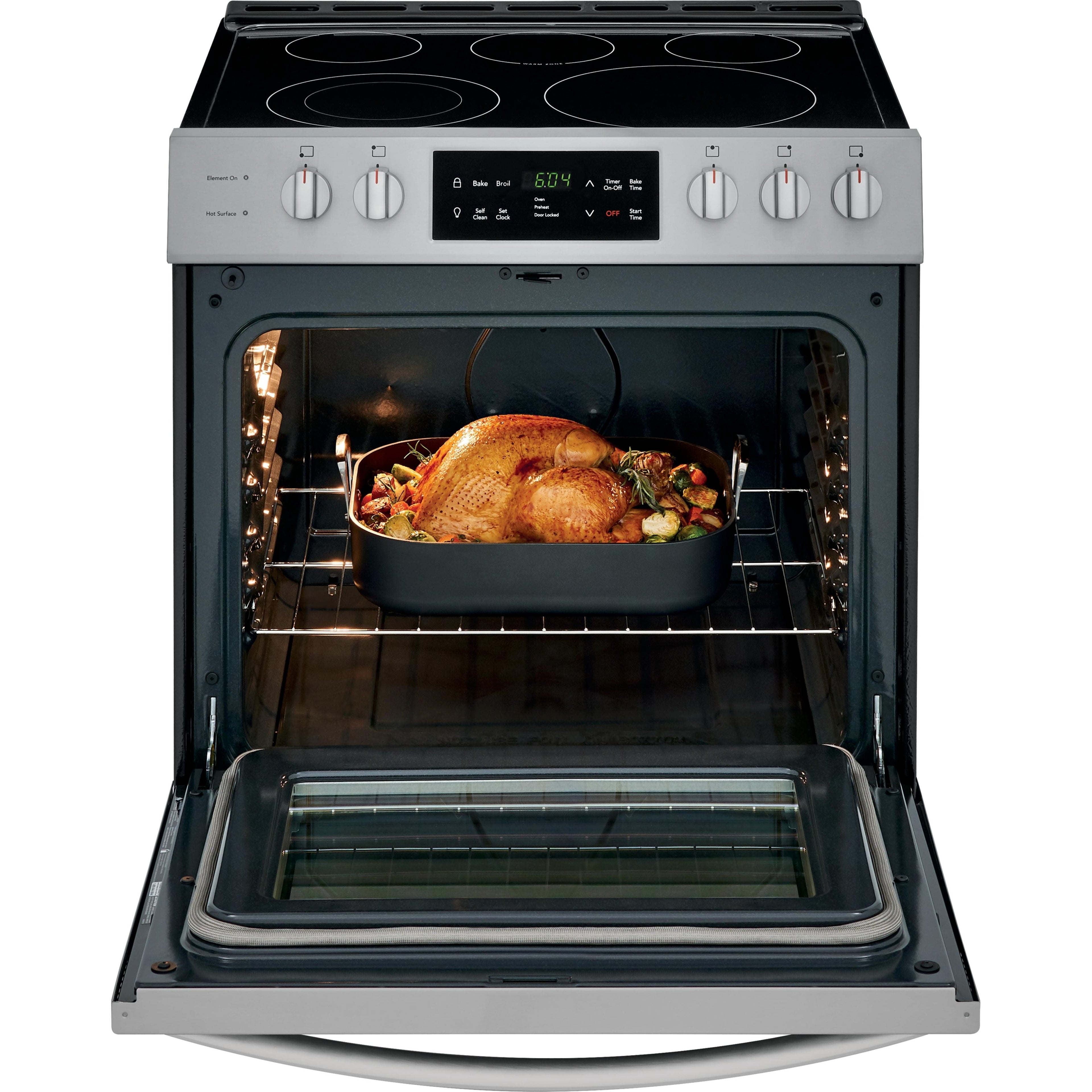

HIDDEN BAKE ELEMENT
Keeping the bottom of your oven clean is easy with a hidden heating element.
EXTRA-LARGE ELEMENT
With our extra-large 12" element, you have more flexibility to fit larger pots and pans.
