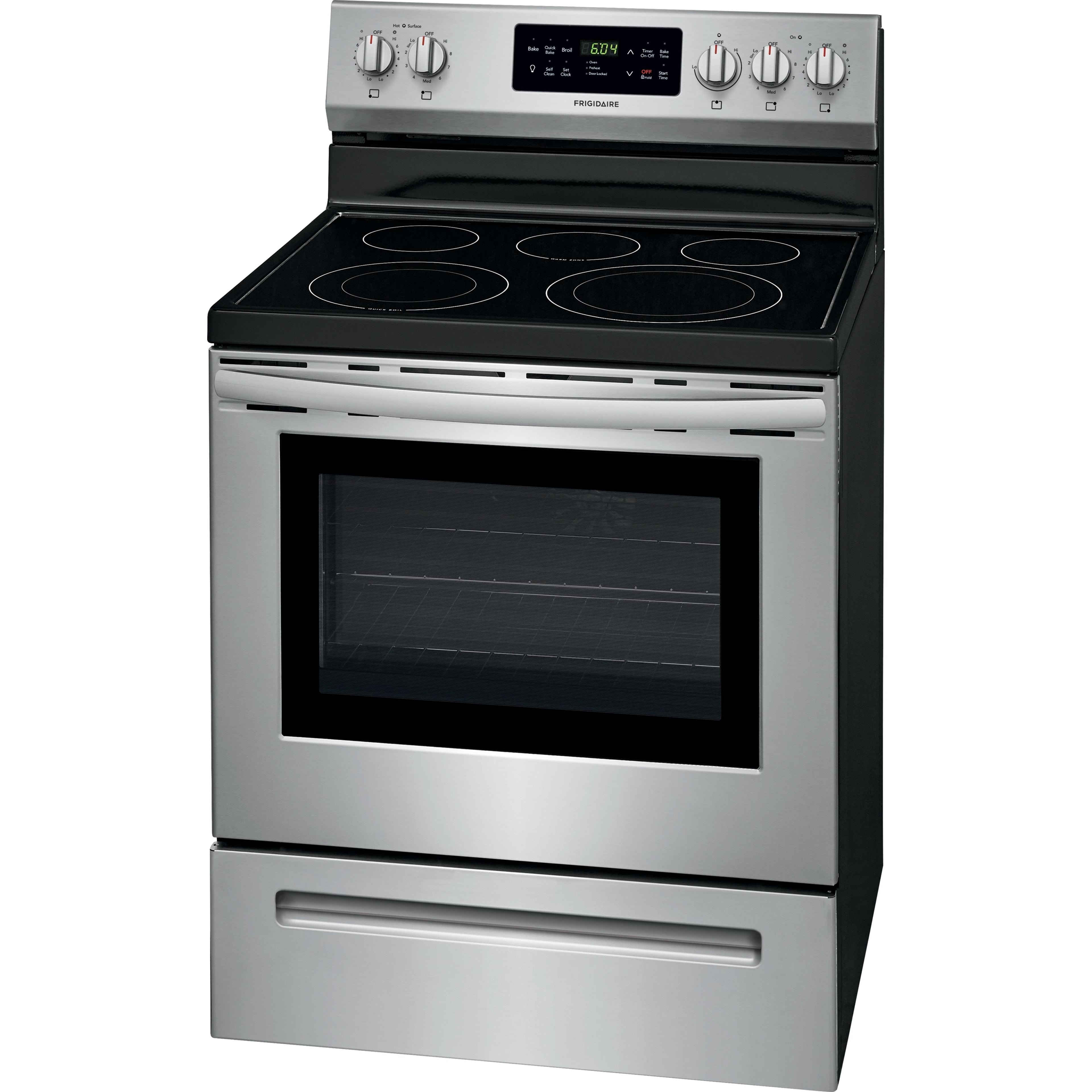

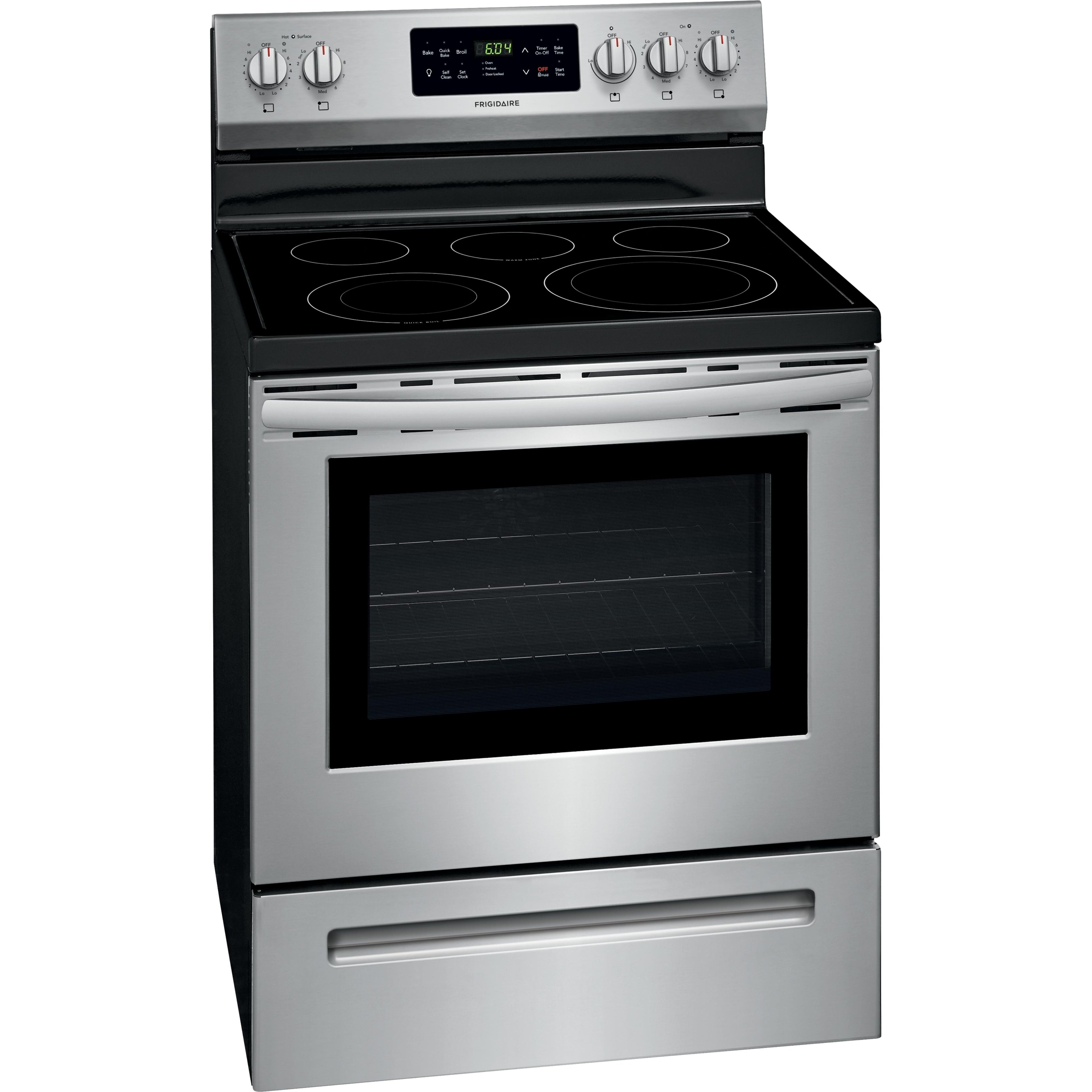

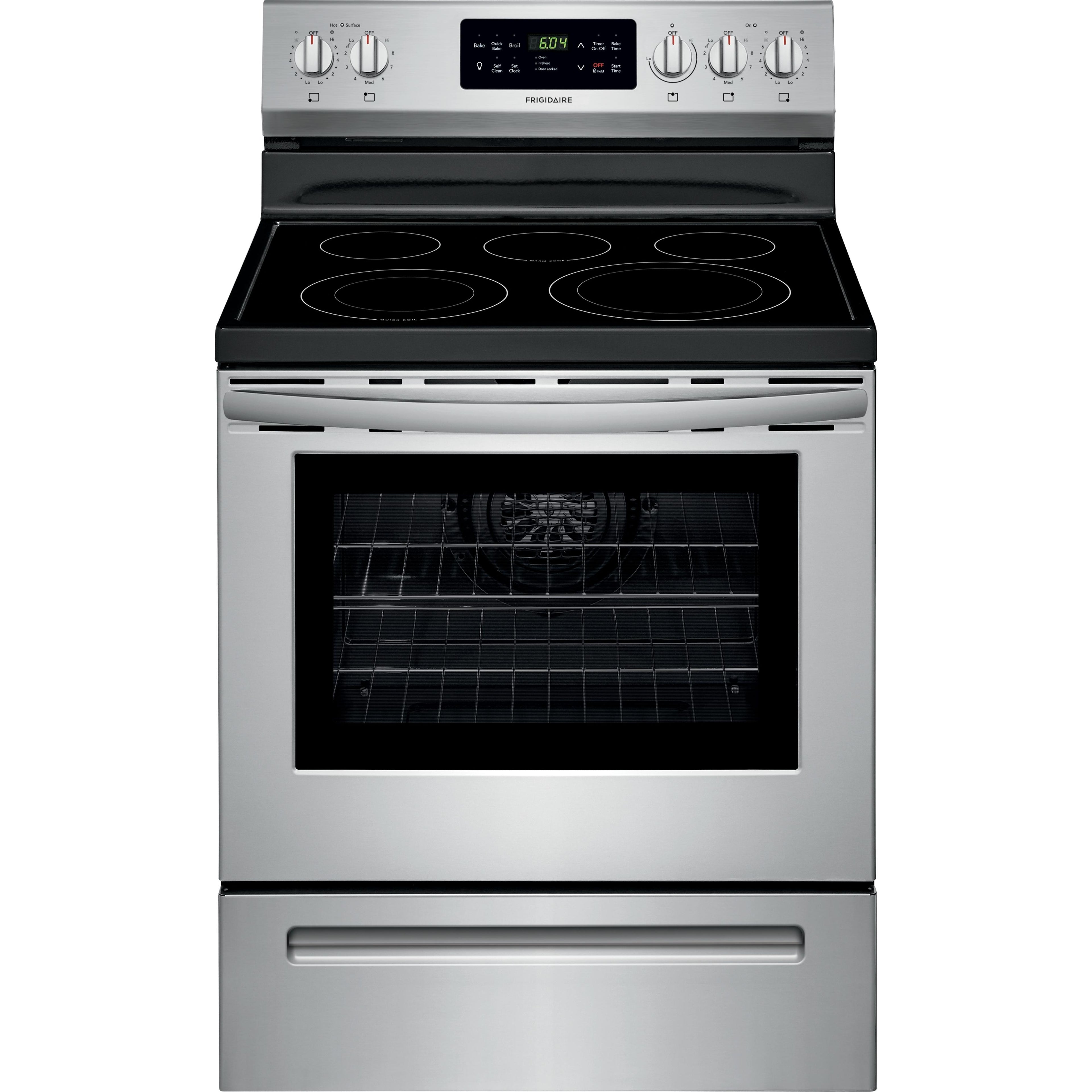

Frigidaire 30" electric range with the Store-More™ storage drawer for extra space to store your cookware. It features the Even Baking Technology, Quick bake convection and SpaceWise® flexible elements that expand to meet your cooking needs - big or small.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
• One-touch self-clean: 2, 3 Hour
• Quick clean option
• Delay clean
• Quick clean option
• Delay clean

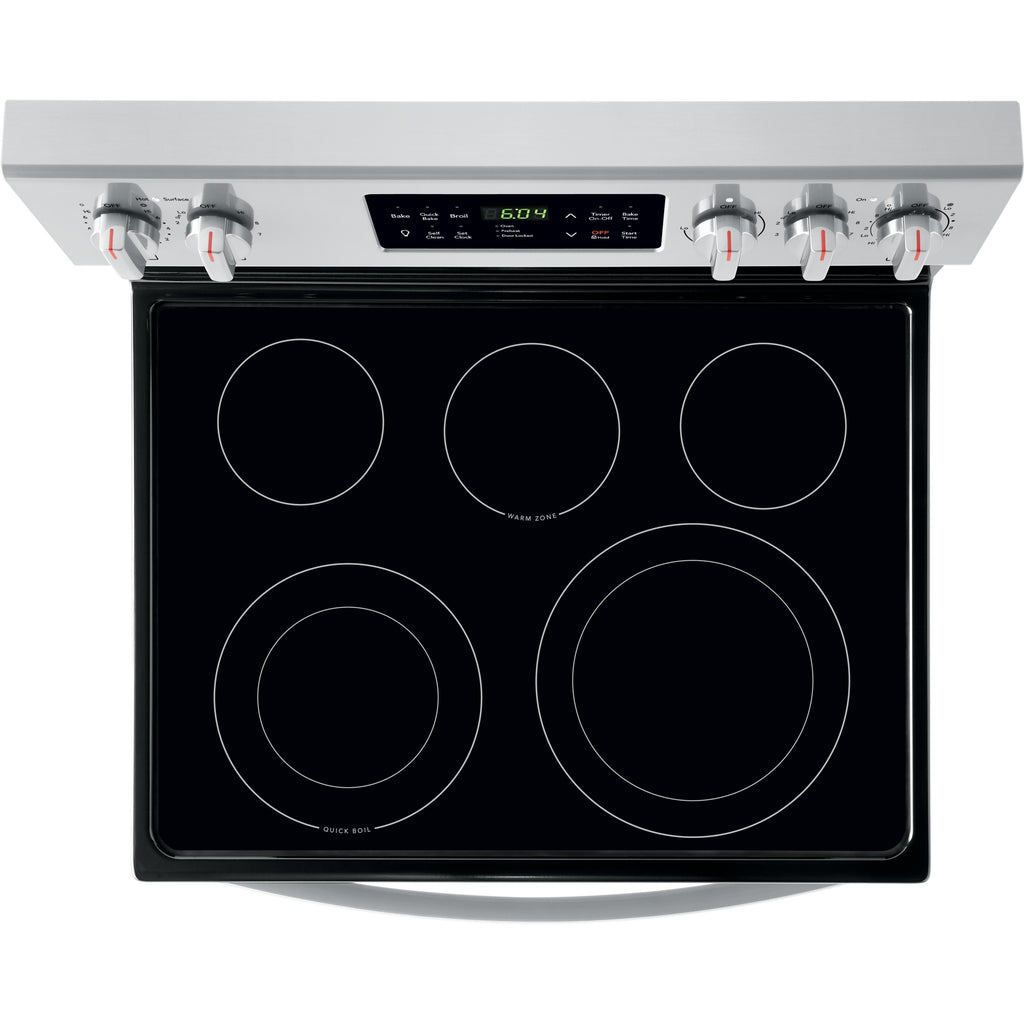

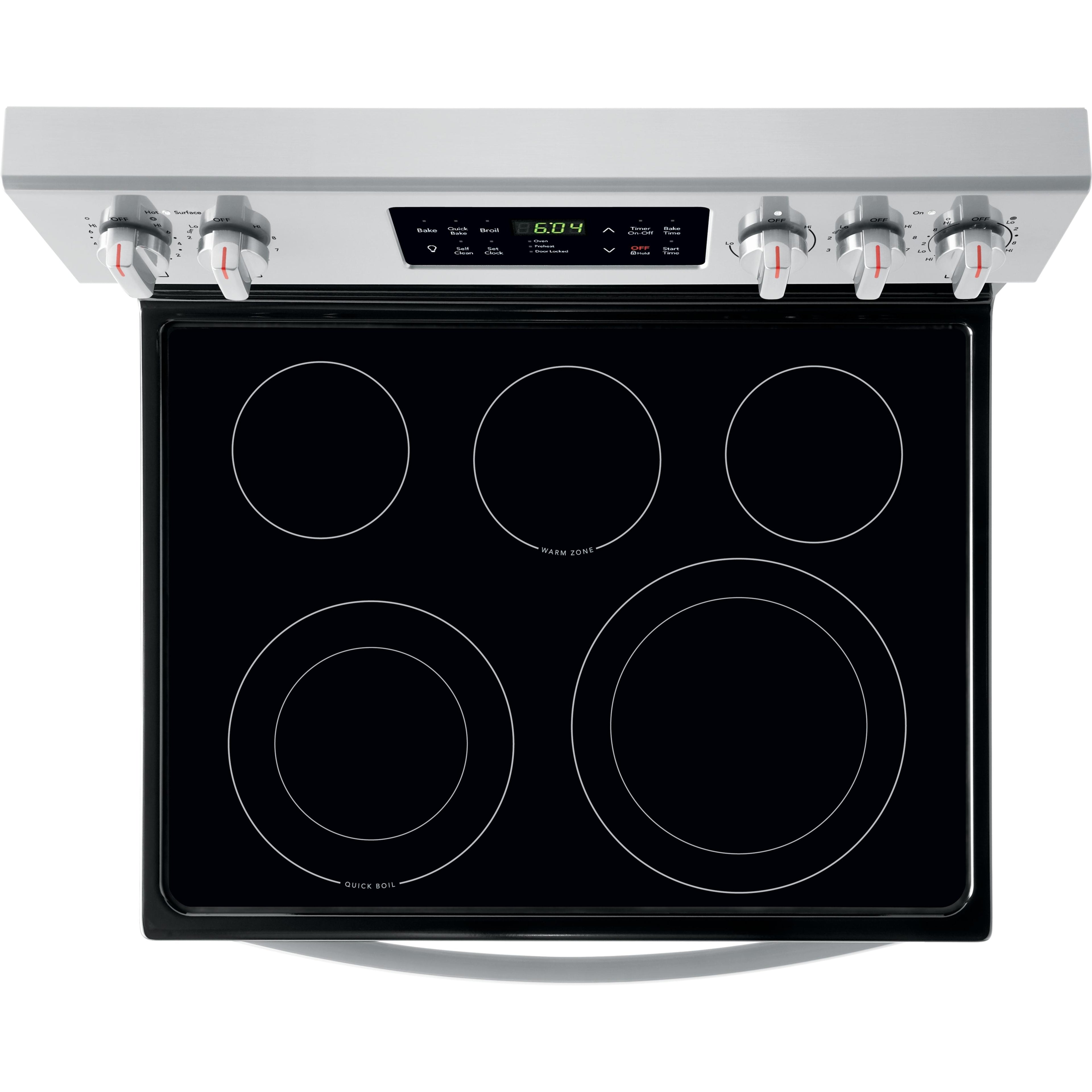

Cooktop
Burners/Elements
5
Burners/Elements Output
• Right front: 1,800 / 3,000W (expandable)
• Right rear: 1,200W
• Left front: 1,400 / 3,000W (expandable)
• Left rear: 1,200W
• Centre: 100W (keep warm zone)
• Right rear: 1,200W
• Left front: 1,400 / 3,000W (expandable)
• Left rear: 1,200W
• Centre: 100W (keep warm zone)
Burner/Element Size
• Right front: 9" / 12" (expandable)
• Right rear: 6"
• Left front: 6" / 9" (expandable)
• Left rear: 6"
• Right rear: 6"
• Left front: 6" / 9" (expandable)
• Left rear: 6"
Elements
Smoothtop

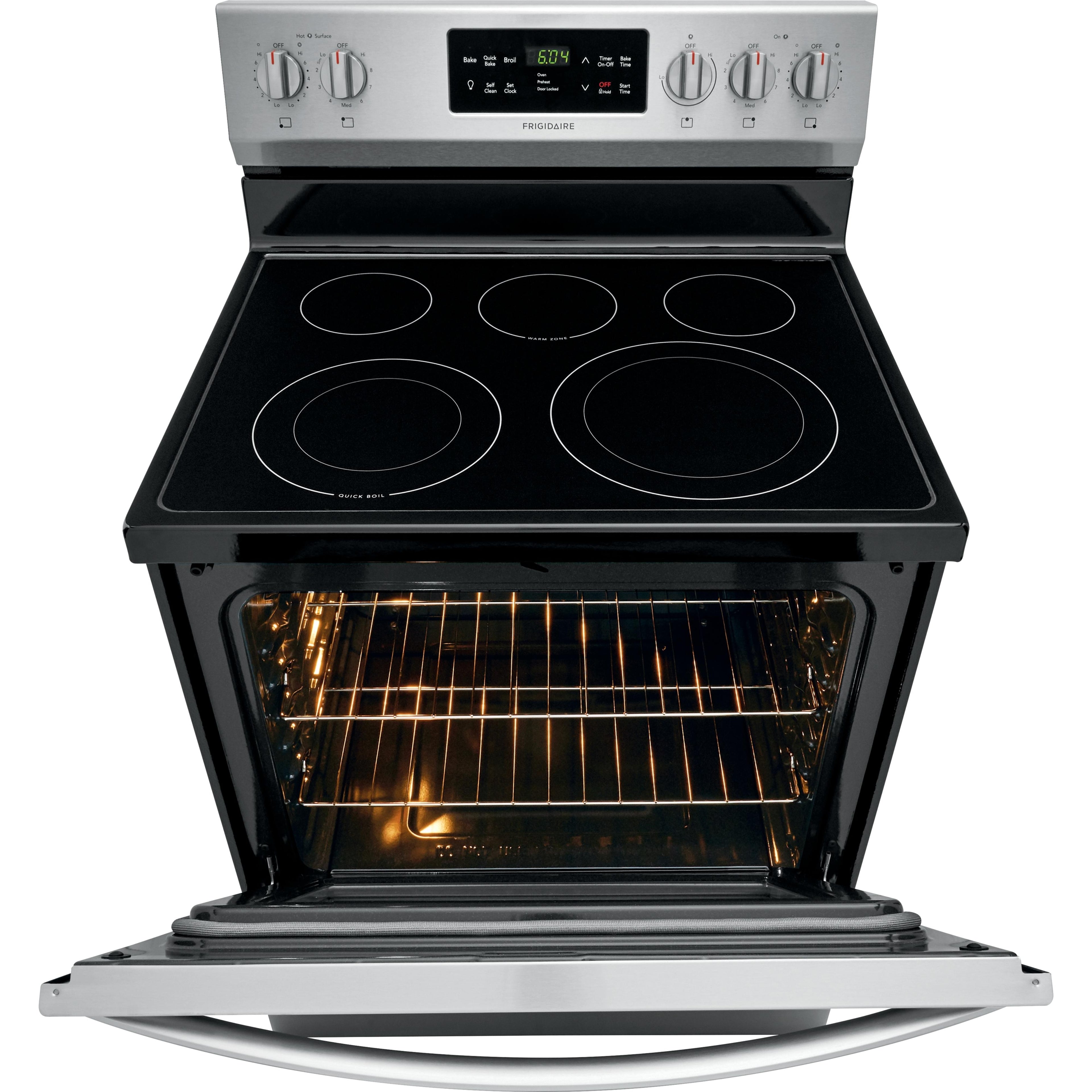

Oven
Capacity (cu. ft.)
5.4
Number of Ovens
Single
Programs
• Bake
• Broil
• Quick Bake convection
• Kitchen timer
• Timed cook option
• Auto oven shut-off: 12 Hours
• Oven lock-out
• Broil
• Quick Bake convection
• Kitchen timer
• Timed cook option
• Auto oven shut-off: 12 Hours
• Oven lock-out
Features
Technologies

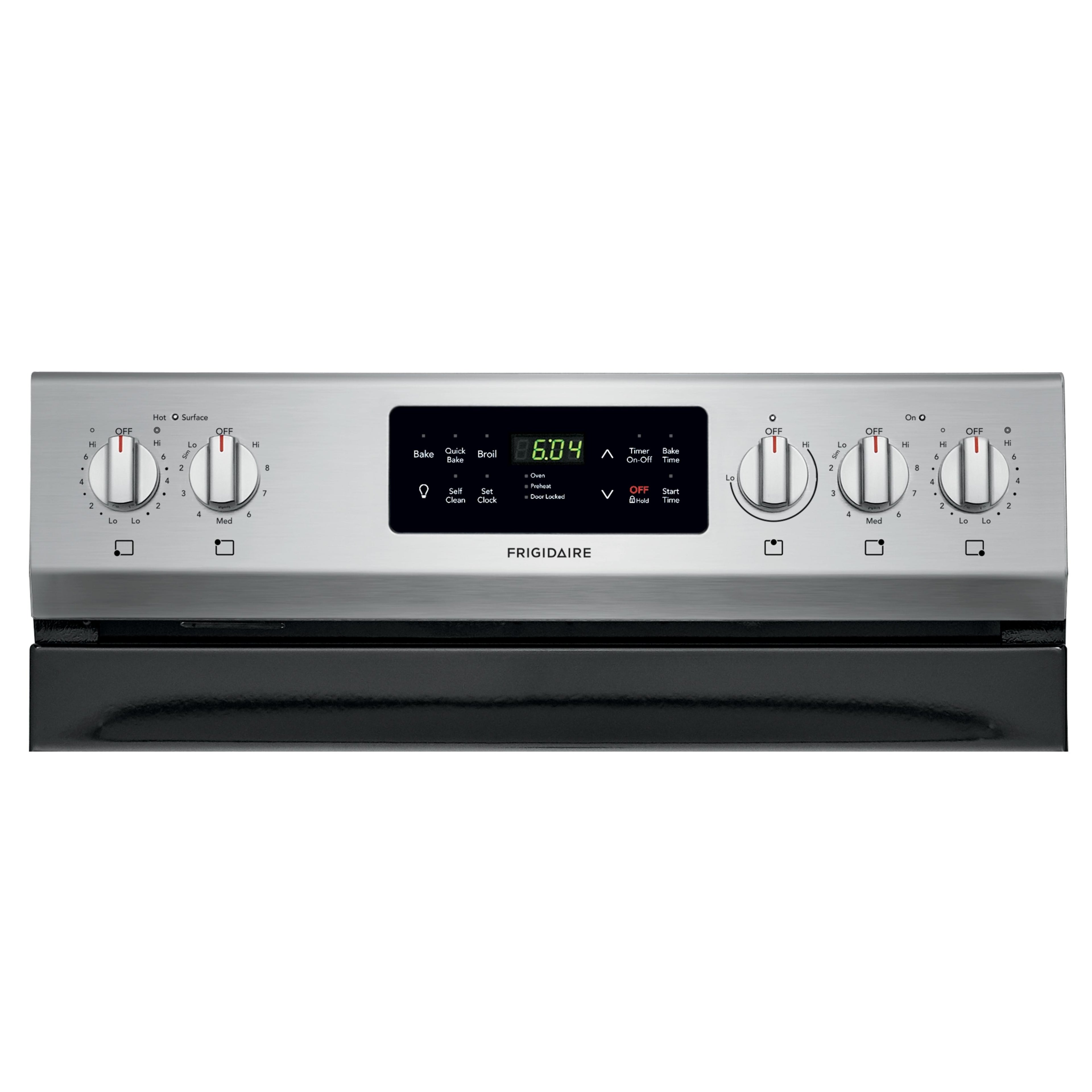

• Ready-Select® controls
• Even baking technology
• Vari-Broil™ (Hi / Lo) broiling system
• SpaceWise® expandable elements
• Extra-large Visualite® window
• Store-More™ storage drawer
• Even baking technology
• Vari-Broil™ (Hi / Lo) broiling system
• SpaceWise® expandable elements
• Extra-large Visualite® window
• Store-More™ storage drawer
Control Lock
Yes
Convection
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Additional Information
• Black ceramic glass
• Hidden bake element
• Hot surface indicator light
• Element "On" indicator light
• Oven light: 1 Incandescent 40W
• Bake element / Broil element: 3,500 / 3,600 W
• 4 Adjustable leveling legs
• Rack configuration: 2 standard
• Rack positions: 6 positions
• Hidden bake element
• Hot surface indicator light
• Element "On" indicator light
• Oven light: 1 Incandescent 40W
• Bake element / Broil element: 3,500 / 3,600 W
• 4 Adjustable leveling legs
• Rack configuration: 2 standard
• Rack positions: 6 positions
Drawer Features
Storage
Yes
Electrical Information
Information
• Voltage rating: 240V / 208V / 60Hz
• Connected load (kW rating) @ 240 / 208 Volts: 13.5 / 10.5
• Minimum circuit required: 40 Amps
• Connected load (kW rating) @ 240 / 208 Volts: 13.5 / 10.5
• Minimum circuit required: 40 Amps
Certifications and Approvals
ADA Compliant
No
Sabbath/Star-K
No
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
47 inch(es) / 119.38 cm
Depth (Without Handles)
29.25 inch(es) / 74.3 cm
Weight
159.99 lb(s) / 72.57 kg
Additional Dimensions
Oven interior (H x W x D): 19-3/4" x 24-3/8" x 19-1/8"
Shipping Dimensions
Weight
170 lb(s) / 77.11 kg
Warranty
Warranty
1-Year parts and labor
Features
QUICK BOIL
Get meals on the table faster with a 3,000 W element - water boils faster than the traditional setting.
EVEN BAKING TECHNOLOGY
Designed to deliver even baking results, every time.
ONE-TOUCH SELF CLEAN
Start the self-cleaning cycle with just the touch of a button.
SPACEWISE® EXPANDABLE ELEMENTS
Flexible elements expand to meet your cooking needs - big or small.
EXTRA-LARGE WINDOW
The extra-large oven window lets you easily see what's inside.
STORE-MORE™ STORAGE DRAWER
The convenient drawer gives you extra storage space in your kitchen.
Additional Features
LARGE CAPACITY
The large capacity oven gives you room to cook more at once.
QUICK BAKE CONVECTION
Bake faster and more evenly with Quick Bake Convection.
KEEP WARM ZONE
Keep food warm until everything — and everyone — is ready.
EXTRA-LARGE ELEMENT
With our extra-large 12" element, you have more flexibility to fit larger pots and pans.
