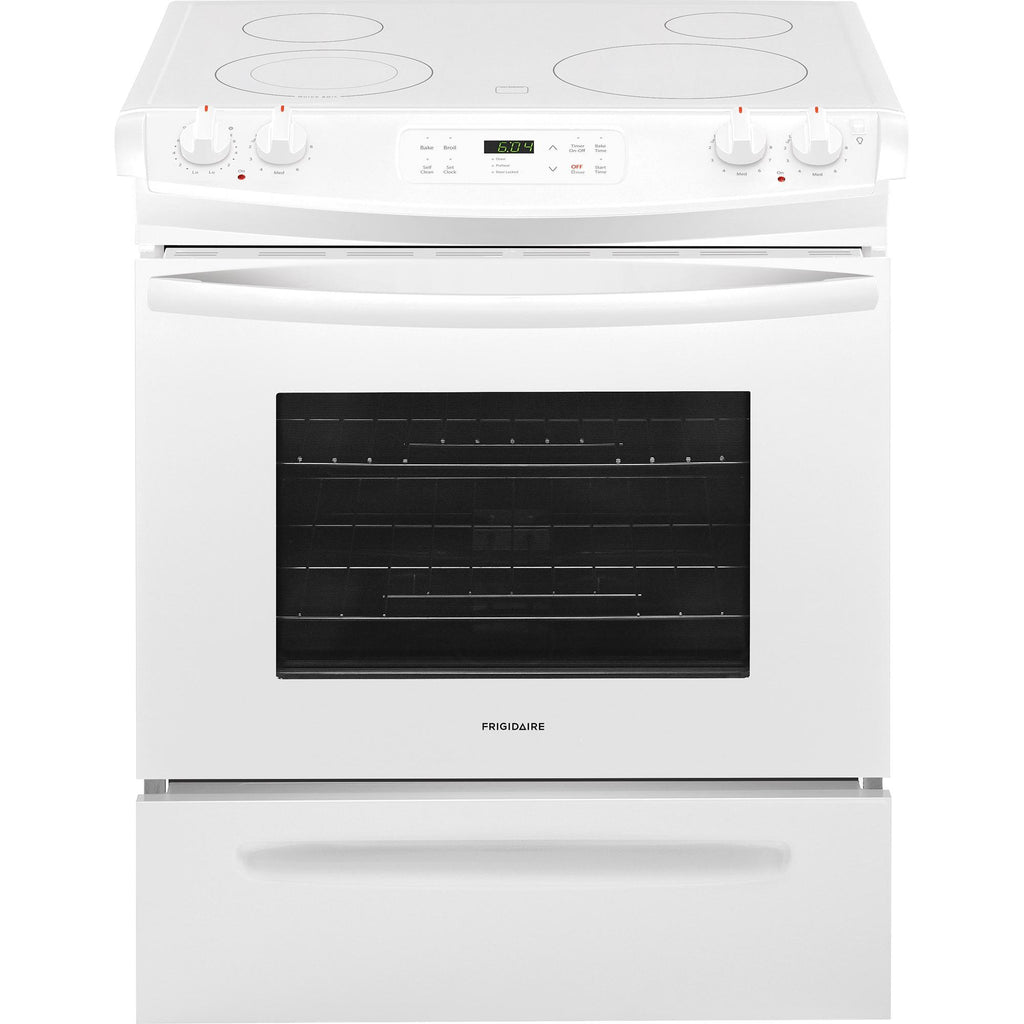

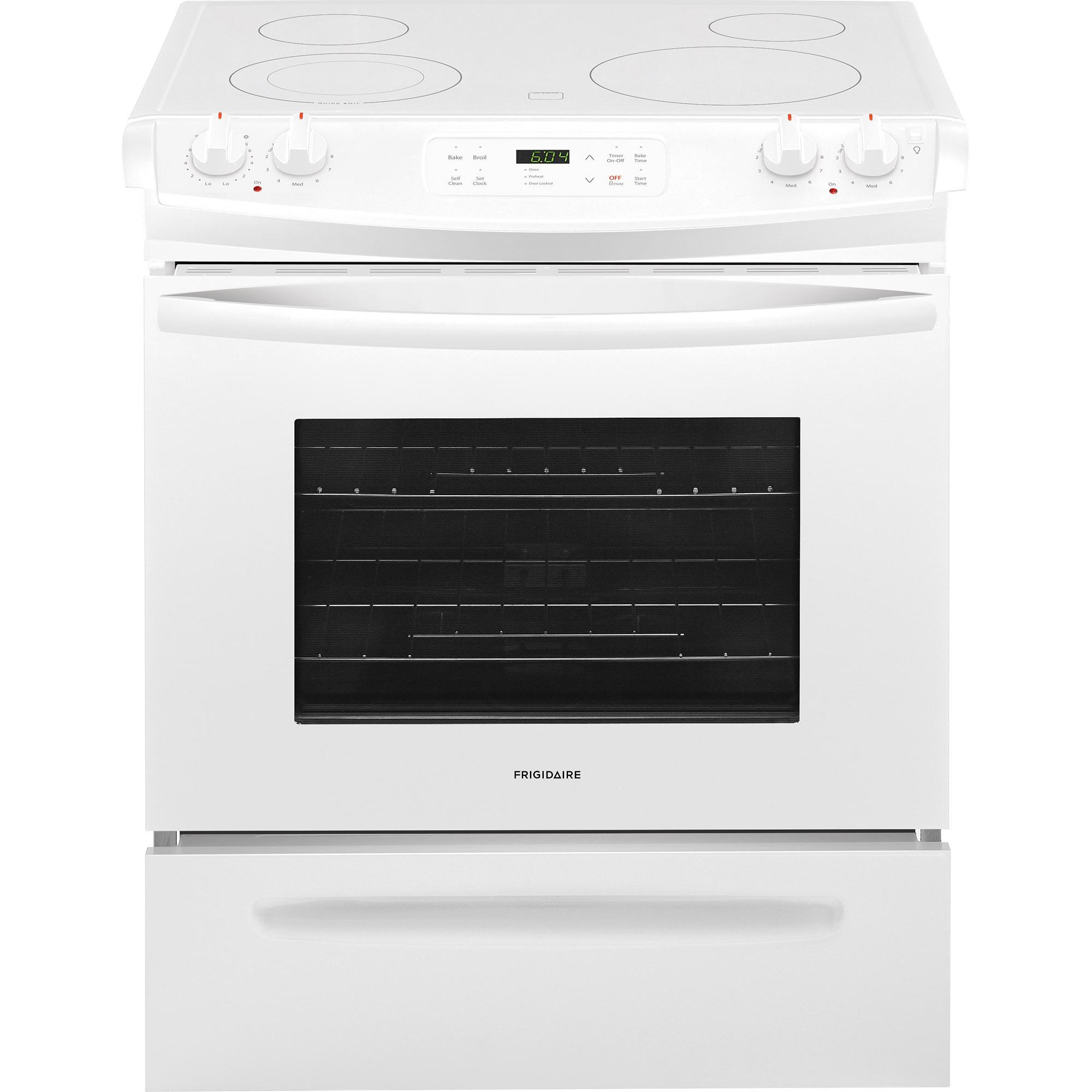

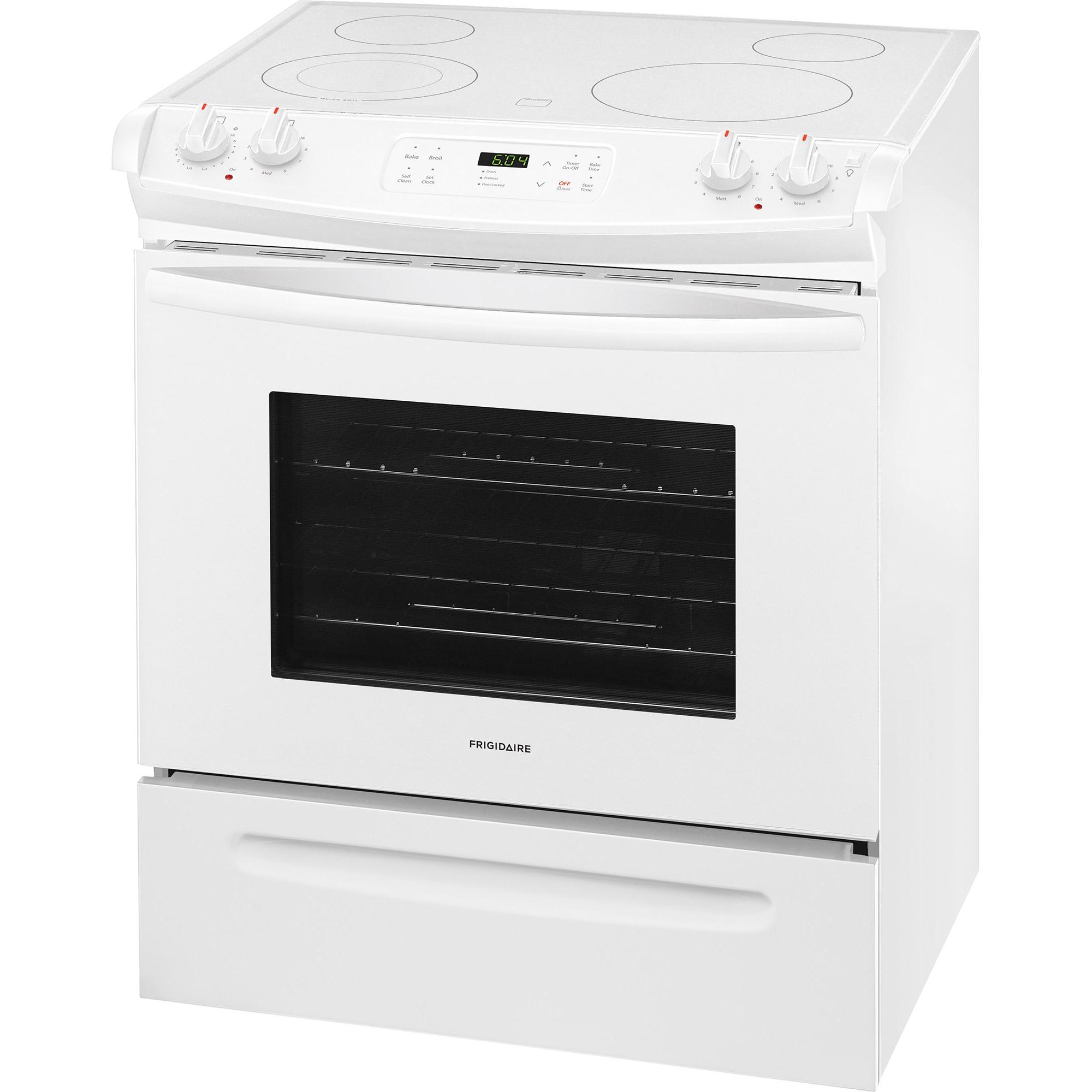

Frigidaire 30" slide-in electric range features 4 elements, storage drawer and glass smoothtop.
$0.00
Specifications
General
Fuel Type
Electric
Installation Type
Slide-in
Color
White
Manufacturer Color
White
Appliance Care
• Self-clean oven
• Delay clean
• Delay clean

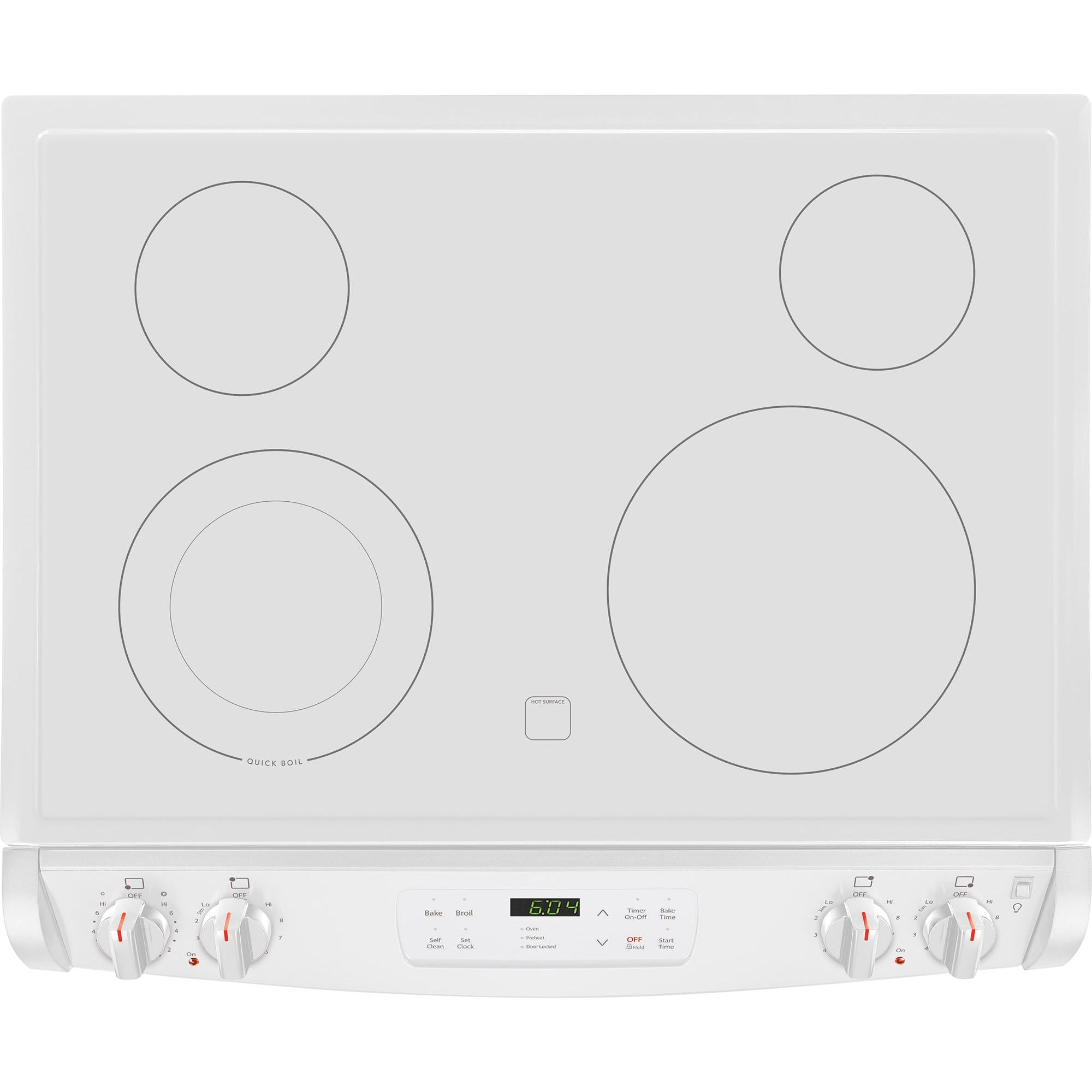

Cooktop
Burners/Elements
4
Burners/Elements Output
• Front right: 2,700W
• Front Left: 1,400W / 3,000W
• Back left: 1,500W
• Back right: 1,200W
• Front Left: 1,400W / 3,000W
• Back left: 1,500W
• Back right: 1,200W
Burner/Element Size
• Front right: 12"
• Front Left: 6"/9"
• Back right: 6"
• Back left: 7"
• Front Left: 6"/9"
• Back right: 6"
• Back left: 7"
Elements
Smoothtop
Oven
Capacity (cu. ft.)
4.6 cu. ft.
Number of Ovens
Single
Features
Technologies
• SpaceWise® Expandable Elements
• Store-More™ Storage Drawer
• Even Baking Technology
• Vari-Broil™
• Store-More™ Storage Drawer
• Even Baking Technology
• Vari-Broil™
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Color-coordinated ceramic glass smoothtop surface
• Bake 2,750W / Broil 3,400W
• Extra-large window
• Oven rack with handle
• Quick boil
• Extra-large 12" element
• Bake 2,750W / Broil 3,400W
• Extra-large window
• Oven rack with handle
• Quick boil
• Extra-large 12" element
Drawer Features
Storage
Yes
Electrical Information
Information
• 240 Volts
• 60 Hertz
• 40 Amps
• 60 Hertz
• 40 Amps
Certifications and Approvals
ADA Compliant
Yes
Accessories
Optional
• Rear filler kit: 901193-9011
• Side panel kit: PN# 903074-9011
• Backguard kit: PN# 903046-9011
• Side trim kit: PN# 903075-9011
• Side panel kit: PN# 903074-9011
• Backguard kit: PN# 903046-9011
• Side trim kit: PN# 903075-9011
Dimensions
Class Width
30"
Width
30 inch(es) / 76.2 cm
Height
36.63 inch(es) / 93.03 cm
Depth (Without Handles)
25.5 inch(es) / 64.77 cm
Depth (Including Handles)
28.31 inch(es) / 71.91 cm
Weight
175 lb(s) / 79.38 kg
Additional Dimensions
• Depth with door open 90 degrees: 47-9/16"
• Oven interior (H x W x D): 17-1/2" x 24-1/8" x 18-3/4"
• Cutout height (Min - Max): 35-7/8" - 36-5/8"
• Cutout width (Min - Max): 29-15/16" - 30-1/16"
• Cutout depth (Min - Max): 21-3/4" - 22-1/8"
• Oven interior (H x W x D): 17-1/2" x 24-1/8" x 18-3/4"
• Cutout height (Min - Max): 35-7/8" - 36-5/8"
• Cutout width (Min - Max): 29-15/16" - 30-1/16"
• Cutout depth (Min - Max): 21-3/4" - 22-1/8"
Shipping Dimensions
Weight
200 lb(s) / 90.72 kg
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
012505804663
Features
EVEN BAKING TECHNOLOGY
Designed to deliver even baking results, every time.
ONE-TOUCH SELF CLEAN
Start the self-cleaning cycle with just the touch of a button.
QUICK BOIL
Get meals on the table faster with a 3,000 W element - water boils faster than the traditional setting.
SPACEWISE® EXPANDABLE ELEMENTS
Flexible elements expand to meet your cooking needs - big or small.
STORE-MORE™ STORAGE DRAWER
The convenient drawer gives you extra storage space in your kitchen.

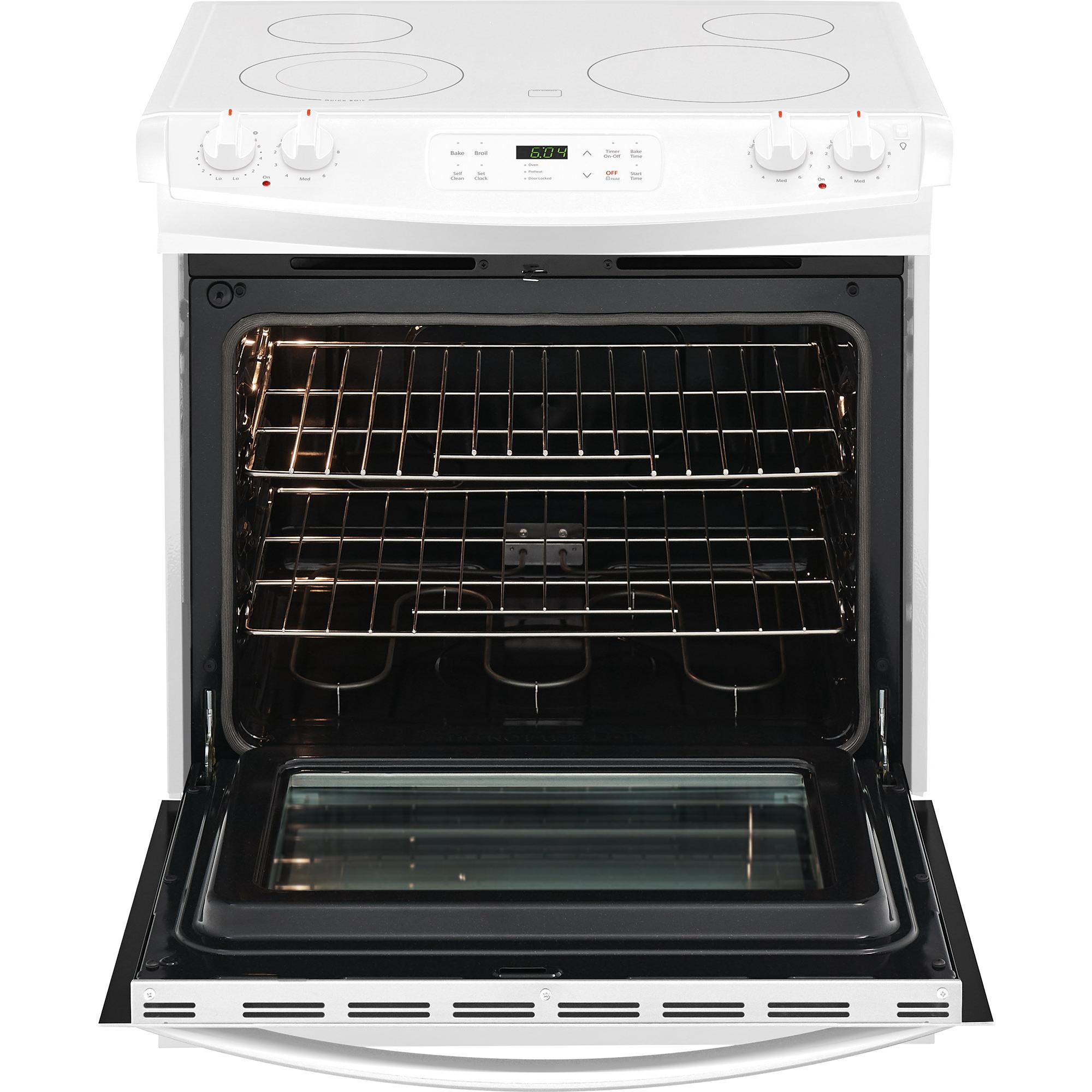

EXTRA-LARGE WINDOW
The extra-large oven window lets you easily see what's inside.
OVEN RACK HANDLES
Oven racks are designed with space for you to easily pull out the racks, even when wearing an oven mitt.
Additional Features
EXTRA-LARGE ELEMENT
With our extra-large 12" element, you have more flexibility to fit larger pots and pans.
DELAY CLEAN
Set the oven to begin cleaning on your schedule.
