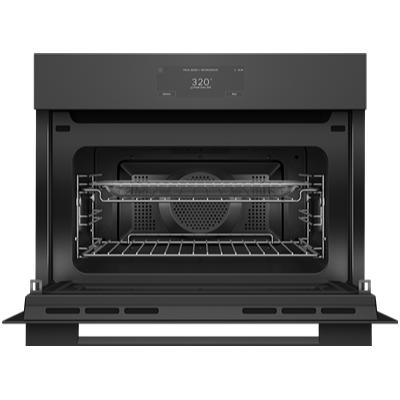

 Fisher & Paykel 24-inch, 1.7 cu. ft. Built-in Speed Oven with Convection Technology OM24NMUB5 IMAGE 1
Refined and minimal, this compact oven combines the speed of microwave and the versatility of convection with method-led cooking.

Specifications

General
Series Name
Series 9 Minimal
Fuel Type
Electric
Color
Black
Manufacturer Color
Black Glass
Total Capacity
1.7 cu. ft.
Appliance Care
• Acid resistant graphite enamel
• Drying cycle
• Removable side ladders
Oven Specifications
Technologies
• WiFi and the SmartHQ™ app
• ActiveVent™ system
• AeroTech™ technology
• Automatic rapid pre-heat
Air Fry
Yes
Clock
Yes
Control Lock
Yes
Convection
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Speed Oven
Capacity
1.7 cu. ft.
Microwave Power
900 W
Programs
• Aero Bake
• Aero Broil + Microwave
• Aero Broil
• Air Fry
• Bake
• Classic Fan
• Dehydrate
• Maxi Broil
• Maxi Broil + Microwave
• Melt
• Microwave
• Quick Start
• Roast
• Roast + Microwave
• Slow Cook
• True Aero + Microwave
• True Aero
• Vent Bake

• Methods:
• Air Fry
• Bake
• Broil
• Defrost
• Dehydrate
• Melt
• Microwave
• Proof
• Reheat
• Reverse Sear
• Roast
• Slow Cook
• Warm
Additional Information
• Create perfect results with precise cooking methods, including Microwave and Broil, via the large 6.8" touchscreen • Combi-Microwave cooking provides fast, even results, with a wired temperature sensor for ultimate control • Designed to match our Minimal style appliances, for the ultimate kitchen solution • With WiFi and the SmartHQ™ app, you can remotely monitor cooking progress and control key functions • Shelf positions: 4 • Total capacity: 1.7 cu ft • Usable capacity: 1.3 cu ft • Alerts and notifications • Education and onboarding • Monitoring • Remote operation • Software updates • Broil power: 3000W • Method cooking • Adjustable audio and display settings • Audio feedback • Automatic cooking/minute timer • Automatic pre-set temperatures • Celsius/Fahrenheit temperature • Delay start • Electronic oven control • Guided touchscreen cooking • Halogen lights • Interface type: 6.8" touchscreen • Intuitive touchscreen display • Multi-language display • Sabbath mode with Star K certification • Smart Appliance • Soft close door • Voice control • Wireless temperature sensor compatible
Certifications
Certifications
ADA compliant
Electrical Information
Information
• Connection type: Hard-wired
• Dedicated circuit: 20A
• Rated power: 3300 / 3900W
• Supply frequency: 60Hz
• Supply voltage: 208 / 240V
Accessories
Included
• Broil rack: 1
• Glass tray: 1
• Step down wire shelf: 1
• Wire shelf: 1
• Wired temperature sensor: 1
Dimensions
Class Width
24"
Width
23.43 inch(es) / 59.5 cm
Height
17.99 inch(es) / 45.7 cm
Depth
22.24 inch(es) / 56.5 cm

Features

EXCEPTIONAL PERFORMANCE (SPEED OVEN)
Offering Microwave, Convection, or a combination of both, this oven provides exceptional versatility for every cooking style. Guided by a deep understanding of the Science of Cooking, we've mastered the balance of heat, humidity and airflow to deliver precise cooking methods, from Microwave to Broil, that bring out the full potential of every ingredient. With ActiveVent™ to manage humidity levels, it delivers consistently perfect results in every dish.
EXCEPTIONAL PERFORMANCE (SPEED OVEN)
EFFICIENT AND DELICIOUS
Microwave Assist combines the speed of microwave energy with the power of convection heat to accelerate cooking and enhance the development of colour. Microwaves gently warm from within, allowing food to cook evenly while retaining its natural moisture. A 3.3 lb Chicken roasts 30-40% faster compared to convection alone, with a golden and crisp skin and succulent meat beneath, while root vegetables caramelise beautifully, tender inside with deep and concentrated flavour.
EFFICIENT AND DELICIOUS
CONSIDERED DESIGN MINIMALISTE
Every detail of our Minimal style appliances has been meticulously designed. With a black glass finish, refined handle, and intuitive 6.8" touchscreen, every element aligns beautifully. Create your ultimate kitchen solution with our range of ovens and companion products, creating a seamless and cohesive look when installed side by side or stacked‚ with perimeter gaps as small as 1/16". The perfect pairing of style and precision for your kitchen
CONSIDERED DESIGN MINIMALISTE
MASTERY OF TEMPERATURE
Whether you want to Reverse Sear an Eye Fillet, Proof Sourdough, or Dehydrate Citrus, each of our precise cooking methods has been carefully calibrated with the optimal combination of heat, temperature, and humidity to help preserve texture, retain nutrients, and enhance flavour. With additional guidance for multi-shelf cooking and Temperature Sensors, it brings true mastery of temperature to every dish.
 MASTERY OF TEMPERATURE
QUICKSTART FOR EASY OPERATION
For everyday convenience in an instant, Quickstart Microwave delivers fast, precise results. Simply select the duration and power level, and it's ready to go. Intuitive and effortless, it combines the speed of microwave cooking with the performance and reliability of a premium appliance.
QUICKSTART FOR EASY OPERATION
GENEROUS CAPACITY (1.7 CU.FT.)
The rectangular cavity and absence of a turntable make it easy to cook large dishes, maximising the oven's full 1.7 cu ft capacity. Microwave-safe metal side ladders provide even cooking across all levels, giving you flexibility and consistent results every time.
GENEROUS CAPACITY (1.7 CU.FT.)
CONNECT AND CONTROL.
Connected cooking brings intelligence and ease to your kitchen. With Wi-Fi and the SmartHQ™ app, you can monitor and control your oven remotely, receive real time notifications, and access helpful guidance. Software updates are delivered through the app to keep your appliance current with the latest features and functionality. Voice control with Google Assistant offers hands free convenience ‚ simply speak to a connected device to open the door. For precise and confident cooking, our temperature sensors provide guidance to help you achieve perfect results.
CONNECT AND CONTROL.
ENGINEERED FOR LIFE.
Built for enduring performance, our Ovens undergo intensive testing equivalent to 7,300 hours or 20 years of real-world use, delivering durability you can rely on.
ENGINEERED FOR LIFE.
