Fisher & Paykel 24-inch, 3 cu. ft. Combi-Steam Built-in Wall Oven with AeroTech™ Technology OS24SAMHUNG5 IMAGE 1
  • Fisher & Paykel 24-inch, 3 cu. ft. Combi-Steam Built-in Wall Oven with AeroTech™ Technology OS24SAMHUNG5 IMAGE 1

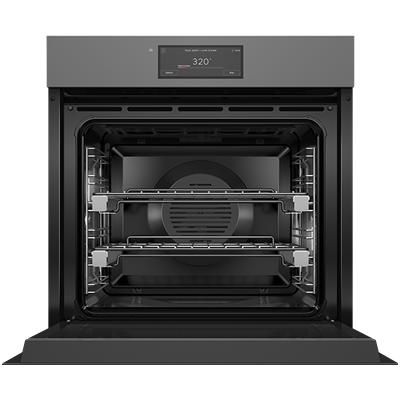

  • Fisher & Paykel 24-inch, 3 cu. ft. Combi-Steam Built-in Wall Oven with AeroTech™ Technology OS24SAMHUNG5 IMAGE 2

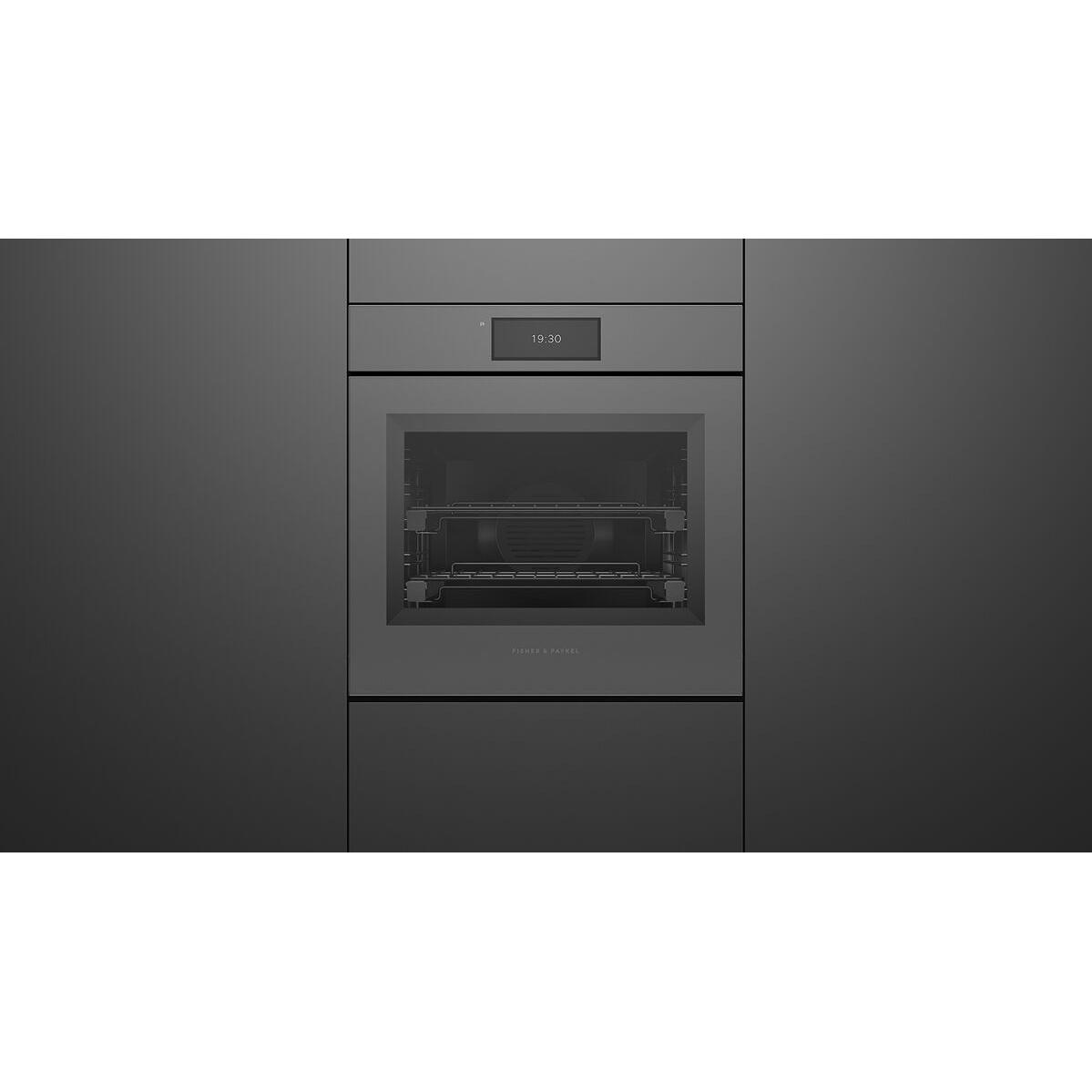

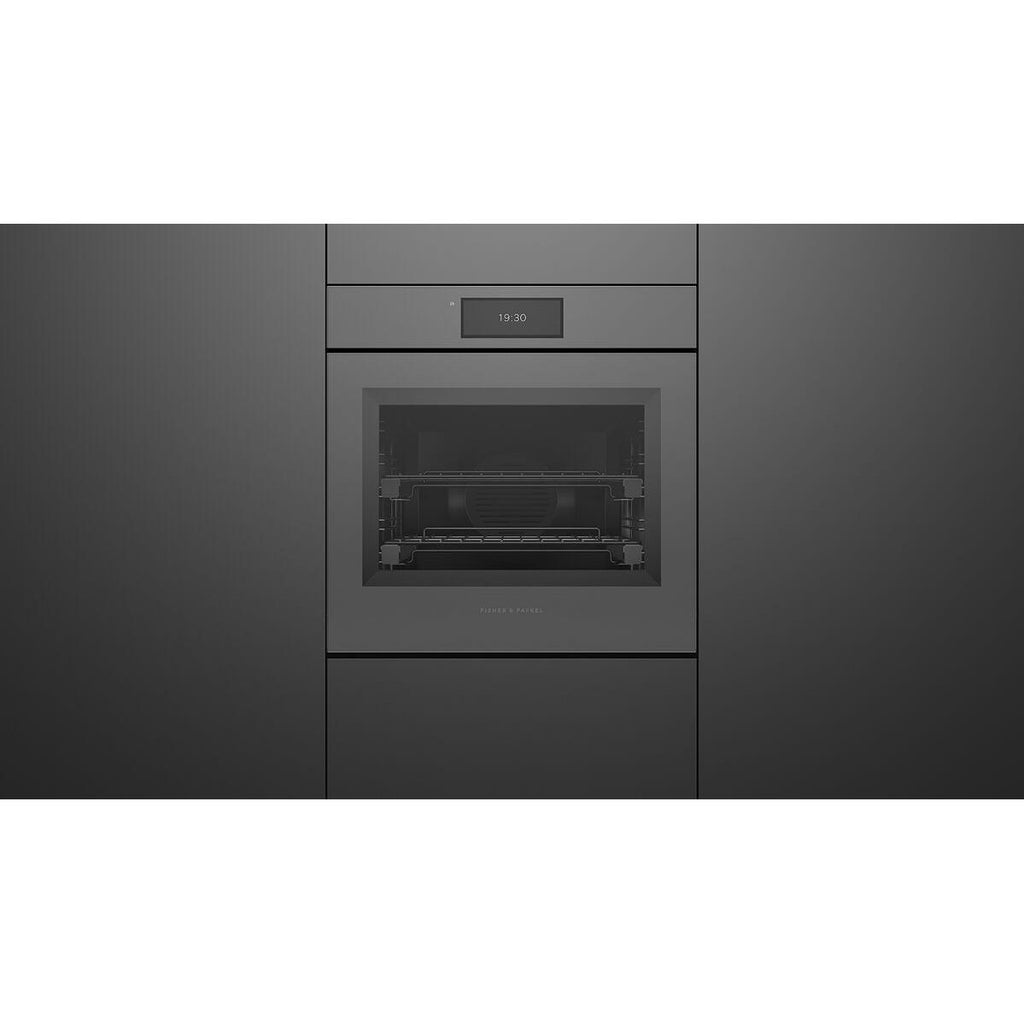

  • Fisher & Paykel 24-inch, 3 cu. ft. Combi-Steam Built-in Wall Oven with AeroTech™ Technology OS24SAMHUNG5 IMAGE 3
Fisher & Paykel 24-inch, 3 cu. ft. Combi-Steam Built-in Wall Oven with AeroTech™ Technology OS24SAMHUNG5
$0.00
With its elegant handleless design, this Combi-Steam oven offers steam cooking, convection cooking, or a combination of both - with method-led cooking. Offering Steam, Convection, or a combination of both, this oven provides exceptional versatility for every cooking style. Guided by a deep understanding of the science of cooking, we've mastered the balance of heat, humidity and airflow to deliver precise cooking methods, from Sous Vide to Crisp Regenerate, that bring out the full potential of every ingredient. The generous 3 cu ft capacity, six shelf positions, and full-extension sliding shelves make family feasts and entertaining effortless, while ActiveVent™ manages humidity for consistently perfect dishes every time.

Specifications

General
Series Name
Series 11 Minimal
Fuel Type
Electric
Color
Grey
Manufacturer Color
Grey Glass
Total Capacity
3.0 cu. ft.
Main Oven Capacity
3.0 cu. ft.
Appliance Care
• Acid resistant graphite enamel
• Descale cycle
• Drying cycle
• Removable oven door
• Removable side ladders
• Removable water tank
• Steam clean
Oven Specifications
Technologies
• ActiveVent™ System
• AeroTech™ Technology
• Air Fry Technology
• Convection Technology
• Wi-Fi and the SmartHQ™ app
Programs
• Aero Bake
• Aero Broil
• Air Fry
• Bake
• Classic Bake
• Classic Fan
• Crisp Regenerate
• Eco Slow Cook
• Maxi Broil
• Roast
• Slow Cook
• Sous Vide
• Steam
• Steam Regenerate
• True Aero + High Steam
• True Aero + Low Steam
• True Aero + Medium Steam
• True Aero
• Vent Bake

• Methods:
• Air Fry
• Bake
• Broil
• Defrost
• Proof
• Regenerate
• Reverse Sear
• Roast
• Slow Cook
• Sous Vide
• Steam
• Warm
Air Fry
Yes
Clock
Yes
Control Lock
Yes
Convection
Yes
Steam Oven
Yes
Delay Bake/Start
Yes
Digital Temperature Display
Yes
Oven Light
Yes
Wi-Fi
Yes
Additional Information
• Create perfect results with precise cooking methods, including Sous Vide and Crisp Regenerate, via the large 6.8" touchscreen
• Simple maintenance with a Dry Cycle to remove moisture inside the oven after steaming
• Multi-Functional Air Fry Tray and two full-extension sliding shelves for greater flexibility and easy handling
• With Wi-Fi and the SmartHQ™ app, you can remotely monitor cooking progress and control key functions
• Shelf positions: 6
• Total capacity: 3 cu ft
• Usable capacity: 2.5 cu ft
• Water tank capacity: 47 fl oz
• Alerts and notifications
• Education and onboarding
• Monitoring
• Remote operation
• Software updates
• Adjustable audio and display settings
• Audio feedback
• Automatic cooking/minute timer
• Automatic pre-set temperatures
• Celsius/Fahrenheit temperature
• Delay start
• Electronic oven control
• Guided touchscreen cooking
• Halogen lights
• Interface type: 6.8" touchscreen
• Intuitive touchscreen display
• Multi-language display
• Sabbath mode with Star K certification
• Smart Appliance
• Soft close door
• Voice control
• Wireless temperature sensor compatible
• Automatic rapid pre-heat
• Broil power: 3000W
• Method cooking
• Steam assist
• SteamTechnology
• Temperature range: 95°F - 445°F
Certifications
Certifications
• ADA compliant
• Sabbath mode with Star K certification
Electrical Information
Information
• Connection type: Hard-wired
• Dedicated circuit: 20A
• Rated power: 3200 / 4200W
• Supply frequency: 60Hz
• Supply voltage: 208 / 240V
Accessories
Included
• Descale solution: 2 sachets, Part 580925
• Full extension sliding shelves: 2
• Large steam dish: 1
• Multi-functional Air Fry tray: 1
• Perforated large dish: 1
• Perforated small dish: 1
• Roasting pan: 1
• Wired temperature sensor: 1
Dimensions
Class Width
24"
Width
23.43 inch(es) / 59.5 cm
Height
23.54 inch(es) / 59.8 cm
Depth
22.25 inch(es) / 56.52 cm

Features

ENHANCE FLAVOUR, PRESERVE NUTRIENTS
Cooking with Steam creates a gentle, precisely controlled environment that preserves delicate textures. With a generous 47 fl oz water tank, Salmon proteins stay relaxed, keeping fillets glossy and full of natural flavour, while the cell walls of Asparagus are softened just enough to retain a crisp bite and vibrant colour. To finish, Creme Caramel is surrounded with even heat for a smooth, silky texture and uniform colour.
ENHANCE FLAVOUR, PRESERVE NUTRIENTS
MASTERY OF TEMPERTURE (STEAM)
Whether you want to Steam Rice, Air Fry Chicken, or Sous Vide Lamb, each of our precise cooking methods has been carefully calibrated with the optimal combination of heat, temperature, and humidity to help preserve texture, retain nutrients, and enhance flavour. With additional guidance for using the Temperature Sensor, it brings true mastery of temperature to every dish.
MASTERY OF TEMPERTURE (STEAM)
EFFORTLESS CLEANING.
With Steam Clean, gentle steam lifts away stubborn spills, while the Dry Cycle efficiently removes residual moisture, leaving the oven ready for your next dish.
EFFORTLESS CLEANING.
MULTI-FUNCTIONAL ACCESSORIES (SERIES 11)
Thoughtfully designed accessories expand your cooking possibilities. Designed to fit seamlessly into the side ladders, each accessory sits securely in place for confident cooking. The Multi-Functional Air Fry Tray promotes even airflow for crisp, golden results, while three Steam Dishes cater for everything from delicate vegetables to steaming full meals, plus a Roasting Dish that works seamlessly with your oven. The Wired Temperature Sensor helps achieve precise cooking results by monitoring food temperature in real time.
MULTI-FUNCTIONAL ACCESSORIES (SERIES 11)
CONNECT AND CONTROL.
Connected cooking brings intelligence and ease to your kitchen. With Wi-Fi and the SmartHQ™ app, you can monitor and control your oven remotely, receive real time notifications, and access helpful guidance. Software updates are delivered through the app to keep your appliance current with the latest features and functionality. Voice control with Google Assistant offers hands free convenience ‚ simply speak to a connected device to open the door. For precise and confident cooking, our temperature sensors provide guidance to help you achieve perfect results.
CONNECT AND CONTROL.
ENGINEERED FOR LIFE.
Built for enduring performance, our Ovens undergo intensive testing equivalent to 7,300 hours or 20 years of real-world use, delivering durability you can rely on.
ENGINEERED FOR LIFE.
CONSIDERED DESIGN (HANDLELESS - GREY GLASS)
Every detail of our Minimal style appliances has been meticulously designed. With a grey glass finish, handleless design, hidden water tank, and intuitive 6.8" touchscreen, every element aligns beautifully. Create your ultimate kitchen solution with our range of ovens and companion products, creating a seamless and cohesive look when installed side by side or stacked, with perimeter gaps as small as 1/16". The perfect pairing of style and precision for your kitchen.
CONSIDERED DESIGN (HANDLELESS - GREY GLASS)

Documents

Installation Guide
Owners Manual
Product Specifications
Dimensions Sheet
