Fisher & Paykel 36" panel ready single DishDrawer™. This ergonomic solution to dishwashing offers kitchen design flexibility and superior results. This dishdrawer features SmartDrive™ technology, 2 cutlery baskets and 9 place settings.
$0.00
Specifications
General
Type
Built-In
Color
Panel Ready
Manufacturer Color
Panel Ready
Place Settings
9
Tub Material
Polymer
Cycle Information
Number of Cycles
9
Wash Cycles
• Delicate
• Delicate eco
• Fast
• Fast eco
• Heavy
• Heavy eco
• Normal
• Normal eco
• Rinse
• Delicate eco
• Fast
• Fast eco
• Heavy
• Heavy eco
• Normal
• Normal eco
• Rinse
Features
Technologies
SmartDrive™ Technology
Delay Start Information
Up to 12 hours
Delay Start
Yes
3rd Rack System
No
Control Lock
Yes
Cutlery Tray
No
Filtration System
Yes
Silverware Basket
Yes
Wi-Fi
No
Additional Information
• Electronic fault / Diagnostic indicator
• End of cycle beeps
• Energy saving delay start option up to 12 hrs
• Internal wash selector
• One button start
• Rinse aid indicator light
• Wireless remote
• Eco options
• 2 cutlery baskets
• Fan assisted drying
• Flow through detergent dispenser
• Quiet operation
• End of cycle beeps
• Energy saving delay start option up to 12 hrs
• Internal wash selector
• One button start
• Rinse aid indicator light
• Wireless remote
• Eco options
• 2 cutlery baskets
• Fan assisted drying
• Flow through detergent dispenser
• Quiet operation
Electrical Information
Information
• 249 kWh/year
• Amp draw: 9.6 A
• 15 A
• 60 Hz
• 120 V
• Amp draw: 9.6 A
• 15 A
• 60 Hz
• 120 V
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Optional
DishDrawer™ dishwashers come with a choice of two handle profiles — round or square
Dimensions
Class Width
36"
Width
33.66 inch(es) / 85.5 cm
Height (Min.)
18.03 inch(es) / 45.8 cm
Depth (Without Handle)
21.77 inch(es) / 55.3 cm
Weight
89.95 lb(s) / 40.8 kg
Warranty
Warranty
Limited 1 year parts and labor
Features
DISHDRAWER™ TECHNOLOGY
It combines compact technologies to provide a space efficient dishwasher in a drawer. The combination of the unique SmartDrive™ motor technology with intelligent electronics and simple mechanics means more space for dishes, greater reliability and better performance. The DishDrawer™ dishwasher's internal microprocessor controls how the wash mechanism operates based on the load and wash cycle. The spray arm rotates at different speeds depending on the wash cycle selected to deliver better dish care.
SMARTDRIVE™ WASH FUNCTION
The unique brushless DC motor acts as both a wash pump and a drain pump, which means less moving parts and greater reliability. The pump brings water into the spray arm, which rotates at different speeds depending on the wash cycle selected to deliver a superior clean and better dish care.
ERGONOMIC

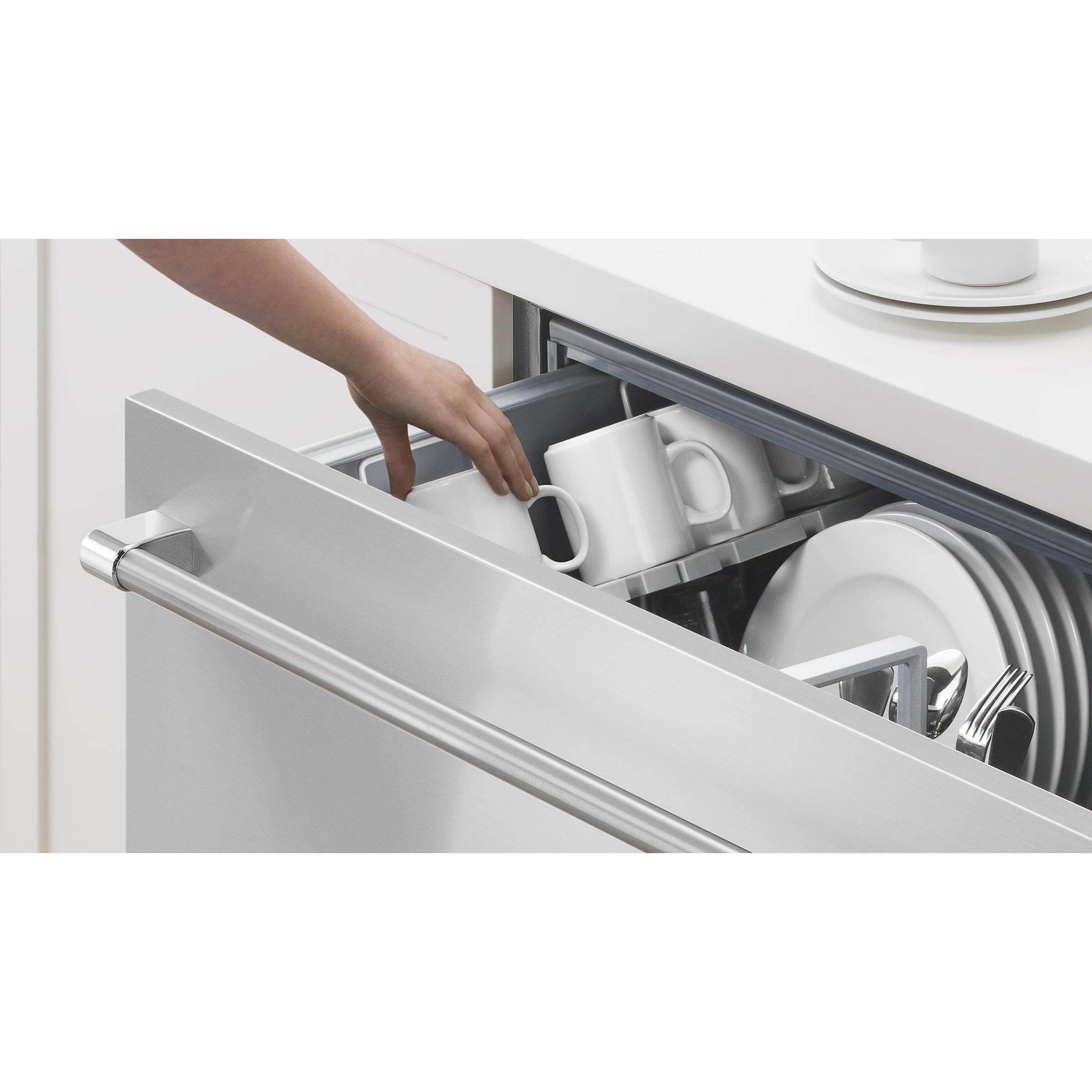

The DishDrawer™ is as easy to open and close as a kitchen drawer and conveniently positioned at bench height so loading and unloading requires minimal bending. Easy-to-use folding tines allow you to place large pots, platters and bowls into the drawer with ease.
SUPERIOR WASH PERFORMANCE (9 CYCLES)
From heavy duty to delicate; the nine wash cycles offer variable wash (or water) pressure combined with the world’s first flow-through detergent dispenser. 163°F sanitizing temperature and fan-assisted drying ensure superior results.
SEAMLESS INTEGRATION
Enhanced venting, a fully adjustable door and a wireless remote on panel-ready models eliminates the need for an external interface allowing seamless integration with cabinetry.
