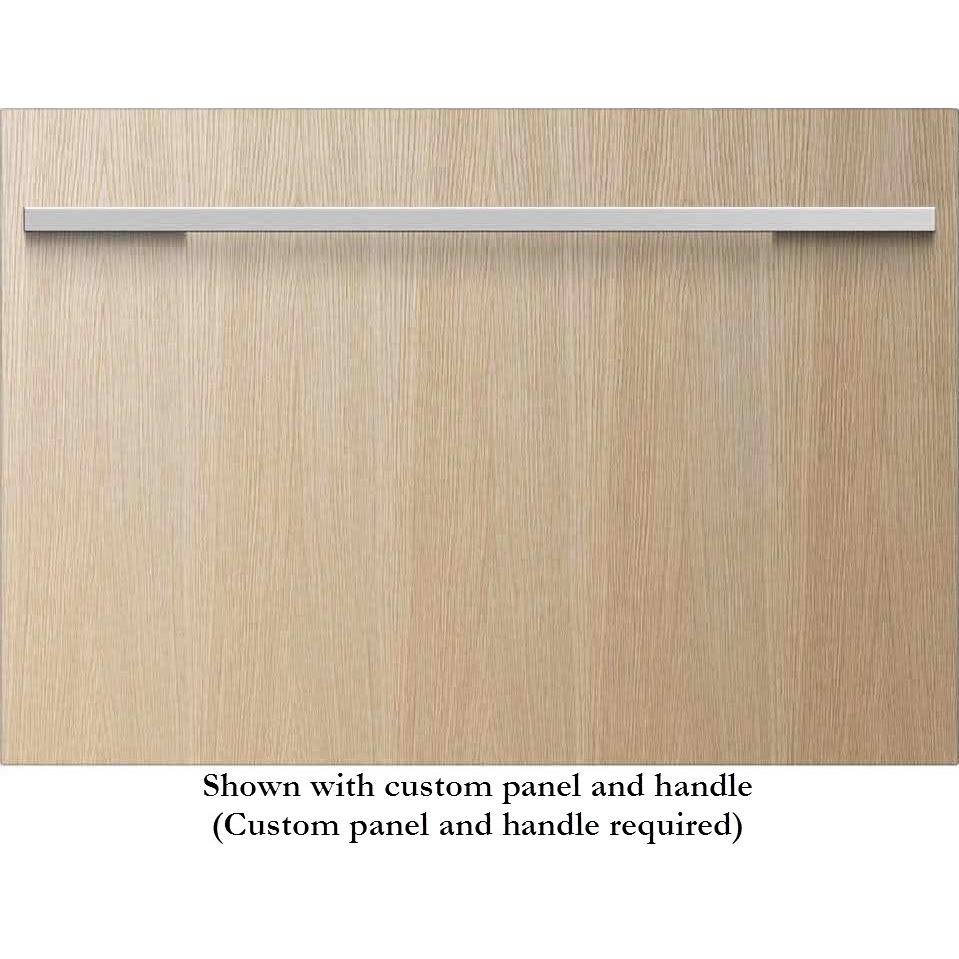

 Fisher & Paykel Built-In Dishwasher DD24SI7 IMAGE 1
Fisher & Paykel 24" panel ready single DishDrawer™ dishwasher featuring full flex racking, an innovative flow-through dispenser and is ergonomic by conveniently being positioned at countertop height so loading and unloading requires minimal bending.

Specifications

General
Type
Built-In
Color
Panel Ready
Manufacturer Color
Custom Panel
Place Settings
7
Silence Rating
46 dB
Cycle Information
Number of Cycles
9
Wash Cycles
• Delicate
• Delicate eco
• Fast
• Fast eco
• Heavy
• Heavy eco
• Normal
• Normal eco
• Rinse
Features
Technologies
• DishDrawer™ technology
• SmartDrive™ motor technology
Delay Start Information
Up To 12 Hours
Delay Start
Yes
Control Lock
Yes
Filtration System
Yes
Silverware Basket
Yes
Additional Information
• Can fit plates up to 11.5" in diameter and long stemmed wine glasses
• Racking and fold down tines are adjustable for different wash requirements
• Electronic fault/Diagnostic indicator
• End of cycle beeps
• Internal Wash Selector
• Rinse aid indicator light
• Wireless Remote
• Fan assisted drying
• Flow through detergent dispenser
• Water Usage: 1.69 gallons per cycle
• Water connection: Max 140°F
• Water pressure: 0.03 Mpa - 1 Mpa (4.3-145 psi)
Electrical Information
Information
• 120 Volts
• 15 Amps
• 60 Hertz
Certifications and Approvals
Energy Star Certified
Yes
ADA Compliant
Yes
Accessories
Included
Knife clip & Multipurpose clip
Dimensions
Class Width
24"
Width
23.74 inch(es) / 60.3 cm
Height (Min.)
16.1 inch(es) / 40.9 cm
Depth (Without Handle)
22.48 inch(es) / 57.1 cm
Warranty
Warranty
Limited 1 year parts and labor
UPC
UPC#
822843886326

Features

DISHDRAWER™ TECHNOLOGY
It combines compact technologies to provide a space efficient dishwasher in a drawer. The combination of the unique SmartDrive™ motor technology with intelligent electronics and simple mechanics means more space for dishes, greater reliability and better performance. The DishDrawer™ dishwasher's internal microprocessor controls how the wash mechanism operates based on the load and wash cycle. The spray arm rotates at different speeds depending on the wash cycle selected to deliver better dish care.
DISHDRAWER™ TECHNOLOGY
SMARTDRIVE™ WASH FUNCTION
The unique brushless DC motor acts as both a wash pump and a drain pump, which means less moving parts and greater reliability. The pump brings water into the spray arm, which rotates at different speeds depending on the wash cycle selected to deliver a superior clean and better dish care.
SMARTDRIVE™ WASH FUNCTION
FLOW THROUGH DETERGENT DISPENSER
The DishDrawer™ detergent dispenser ensures that undissolved detergent does not drop into the tub, but instead is mixed as the machine fills with water. This not only cleans each load better but also reduces the possibility of damaging delicate items such as aluminum, cutlery or porcelain glazes.
FLOW THROUGH DETERGENT DISPENSER
NINE WASH OPTIONS
All DishDrawer™ dishwashers feature nine wash programmes tailored to different washing requirements: Rinse, Fast Eco, Fast, Delicate Eco, Delicate, Normal Eco, Normal, Heavy Eco, Heavy. The range of settings enables DishDrawer™ to wash everything from fine glass and crystal to heavily soiled pots and pans at the touch of a button. Primary and secondary controls provide a simple interface for programme selection and operation while the delay start setting means the dishes can be done when it's most convenient.
NINE WASH OPTIONS
SAFE
DishDrawer™ dishwasher incorporates unique safety features such as Child Lock which both locks the drawer to prevent opening as well as disabling the buttons. In addition it includes three stage flood protection; the high strength hose withstands water pressure several times greater than normal, overfill detection cuts the water supply if limits are exceeded and the back-up switch activates the drain pump to remove any excess water.
SAFE
SUPERIOR FILTRATION
One of the challenges in all dishwashers is a robust filter system that removes debris and avoids blocking. The kidney filter and overmoulded filter plate creates a firm seal to ensure that debris does not enter the wash mechanism and cause backflow. It is designed to be removable for easy and hygienic cleaning.
SUPERIOR FILTRATION
ADJUSTABLE RACKING
DishDrawer™ includes a range of flexible and adjustable racking options for different wash requirements. The flexible cutlery basket can be customised for different utensils and incorporates a separate small item container for easy loading and unloading. Pitch adjustable folding tines allow greater flexibility to customise loads. Tines can be folded flat to accommodate a full load of pots and pans or fold up to hold delicate glassware and crystal. Pitch adjustable racks can accommodate normal plates or simply slide and the rack can conveniently stack deep bowls. Wine glass holders ensure delicate glasses are secure throughout the wash and all side racking is fully adjustable to accommodate short stem and long stem glasses. Added retainer clips are ideal for holding chopping boards and plastic containers in position during wash cycles.
ADJUSTABLE RACKING
