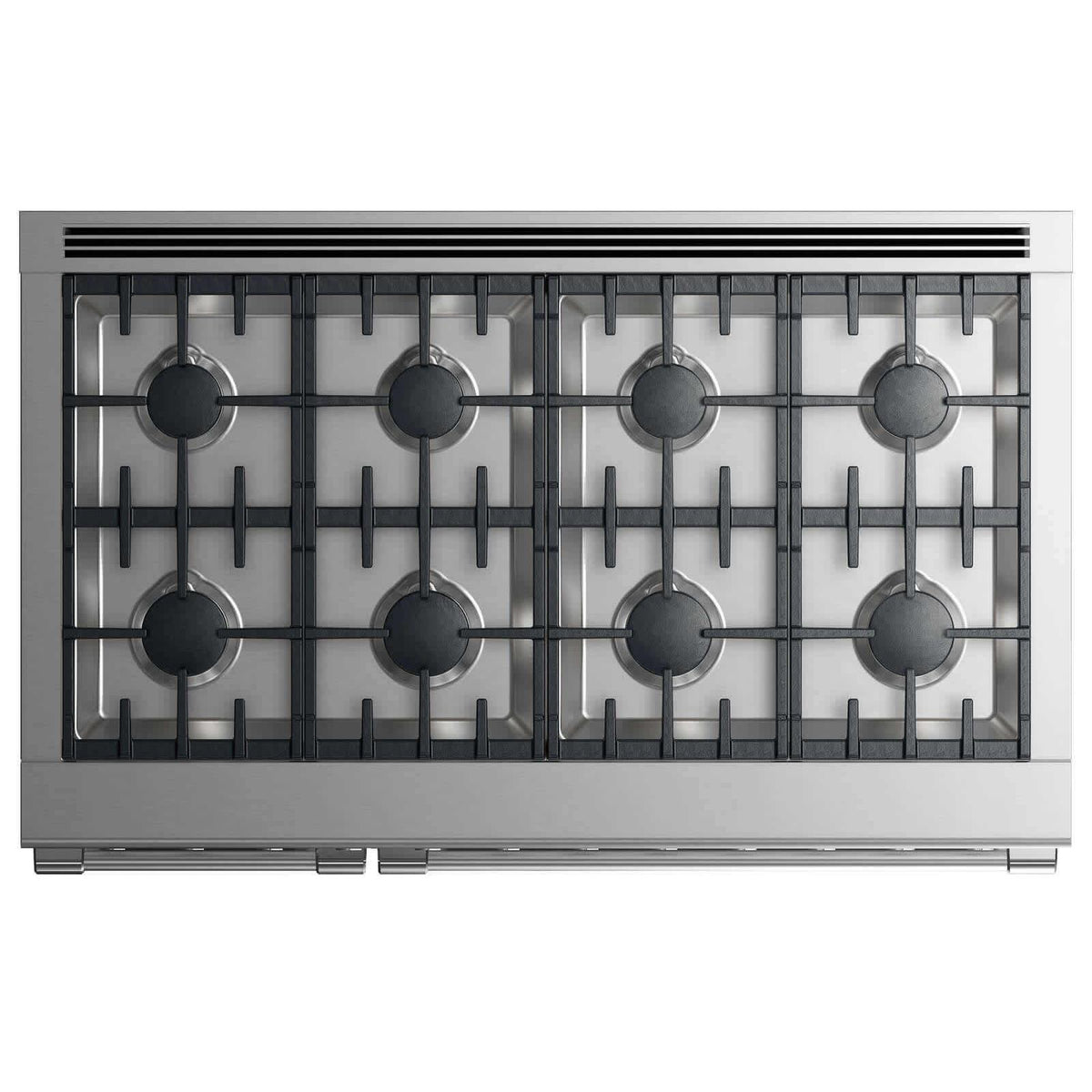

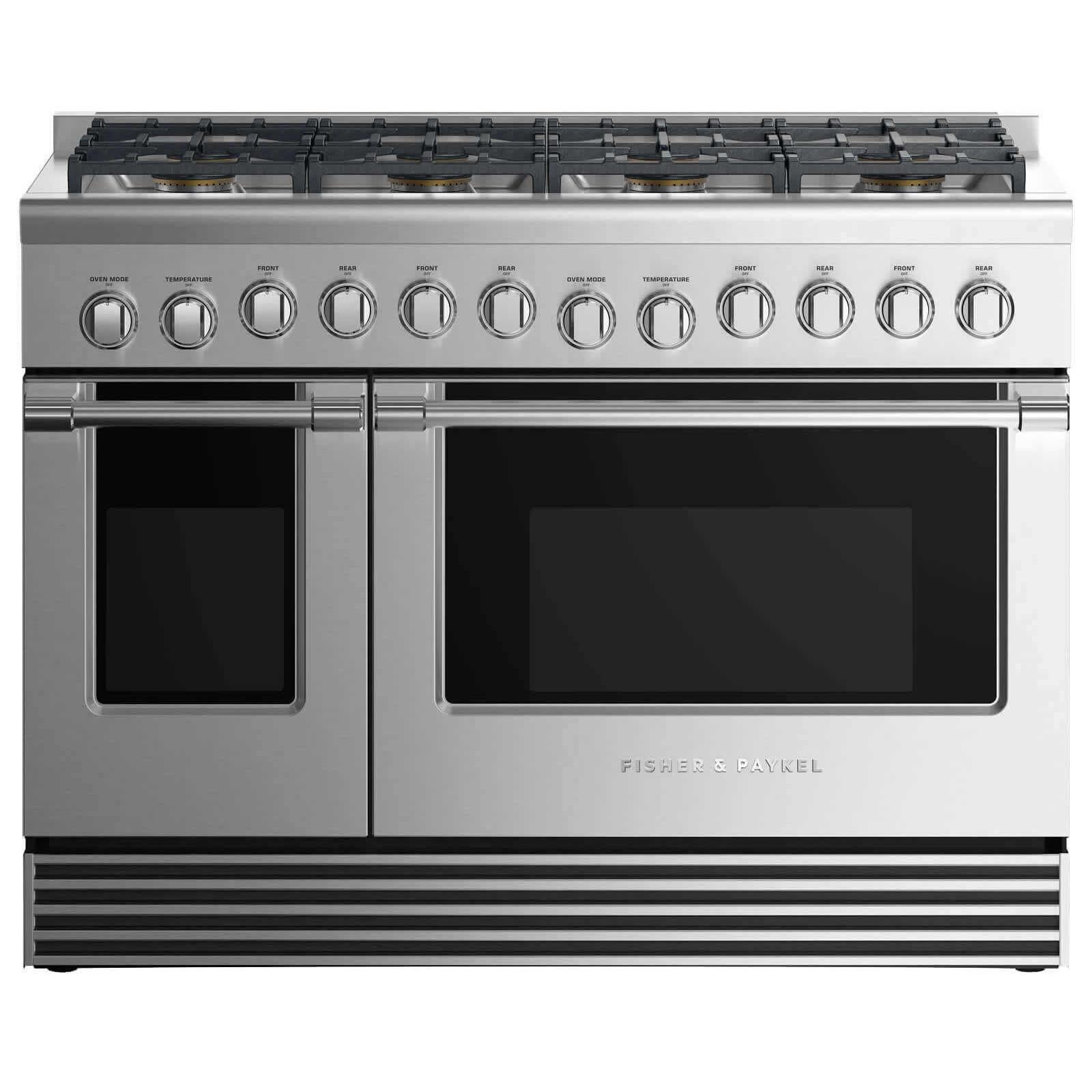

This 48" Fisher & Paykel freestanding range gives you enough space to cook multiple dishes at once across eight high power burners and two oven cavities.
$0.00
Specifications
General
Series Name
Professional
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Dishwasher proof trivets
Cooktop
Burners/Elements
8
Burners/Elements Output
• Total cooktop power: 120,000 BTU
• Simmer on all Burners: 140 °F
• Back centre: 13,000 BTU
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Front centre: 15,000 BTU
• Left Front: 19,000 BTU
• Front right: 19,000 BTU
• Simmer on all Burners: 140 °F
• Back centre: 13,000 BTU
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Front centre: 15,000 BTU
• Left Front: 19,000 BTU
• Front right: 19,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
• Total Capacity: 7.7 cu. ft.
• Large Oven: 5.3 cu. ft.
• Small Oven: 2.4 cu. ft.
• Large Oven: 5.3 cu. ft.
• Small Oven: 2.4 cu. ft.
Number of Ovens
Double
Programs
• Main oven: Bake, Broil, Convection bake
• Secondary oven: Bake and Proof
• Secondary oven: Bake and Proof
Features
Technologies
Dual Flow Burners™
Convection
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Wi-Fi
No
Additional Information
• Main oven- Bake: 22,000 BTU
• Main oven- Broil: 19,000 BTU
• 3 x Full extention telescopic racks (main oven)
• LED Halo control dials
• Flat vent trim
• Main oven- Broil: 19,000 BTU
• 3 x Full extention telescopic racks (main oven)
• LED Halo control dials
• Flat vent trim
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Optional
• VS48-48" Pro Hood
• Square handle: AH-R48
• Square handle: AH-R48
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36.75 inch(es) / 93.35 cm
Depth (Without Handles)
29.13 inch(es) / 73.98 cm
Additional Dimensions
• Max. overall height of range: 36 3/4"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
Warranty
Warranty
Limited 2 Years parts and labor
UPC
UPC#
822843713516
Features
DUAL FLOW BURNERS™
Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
HANDLE OPTION
Customise your Professional Fisher & Paykel kitchen appliance to suit your kitchen style by purchasing our square handle option.
INSTANT VISIBLILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
