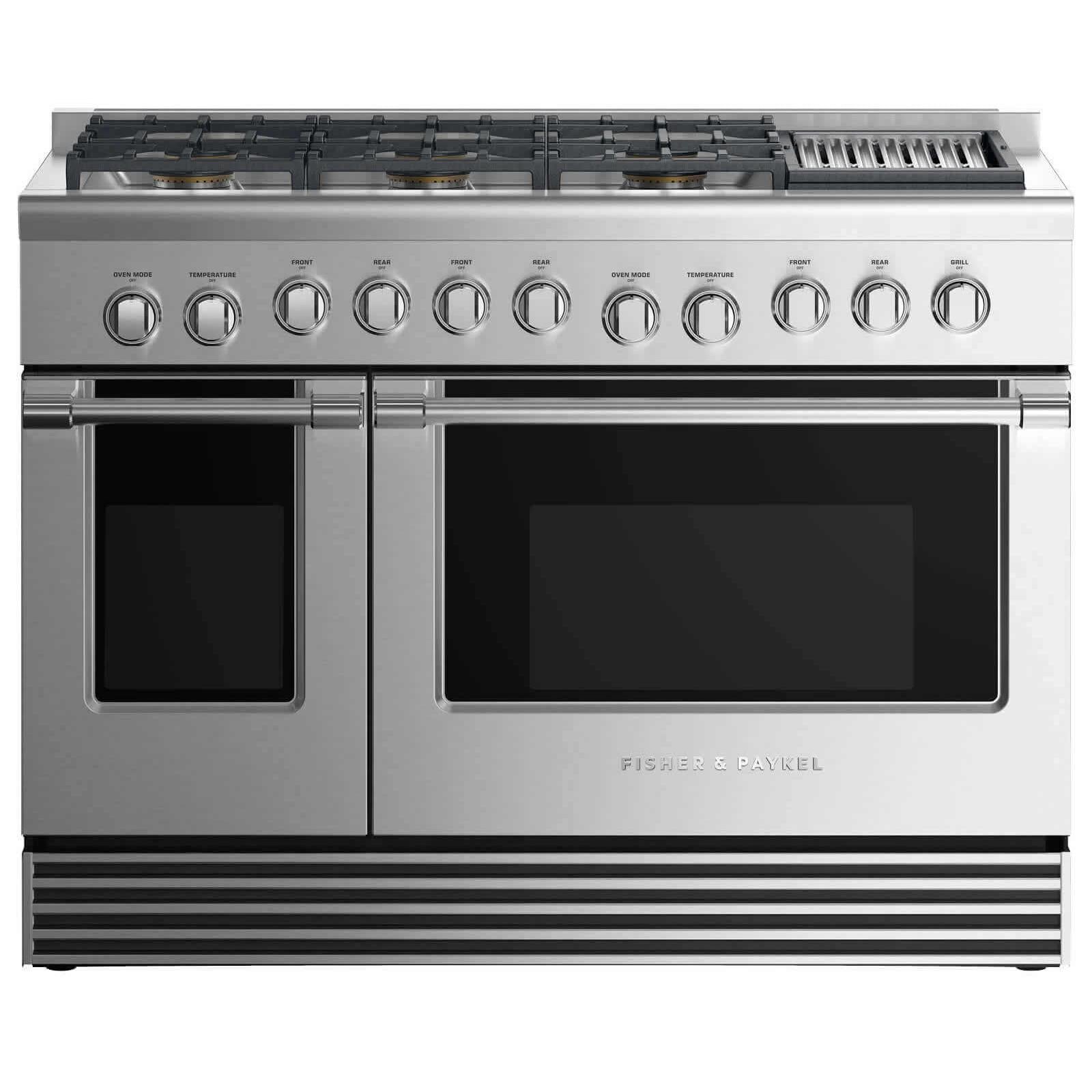

This 48" Fisher & Paykel freestanding range gives you plenty of space when cooking for a crowd across the six burner gas cooktop, grill and two oven cavities.
$0.00
Specifications
General
Series Name
Professional
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Appliance Care
Dishwasher proof trivets
Cooktop
Burners/Elements
6
Burners/Elements Output
• Total Power: 98,000 BTU
• Simmer on all Burners: 140 °F
• Back centre: 13,000 BTU
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Front centre: 15,000 BTU
• Left Front: 19,000 BTU
• Front right: 15,000 BTU
• Grill: 10,000 BTU
• Simmer on all Burners: 140 °F
• Back centre: 13,000 BTU
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Front centre: 15,000 BTU
• Left Front: 19,000 BTU
• Front right: 15,000 BTU
• Grill: 10,000 BTU
Burners
Sealed
Other
Grill
Oven
Capacity (cu. ft.)
• Total Capacity: 7.7 cu. ft.
• Large Oven: 5.3 cu. ft.
• Small Oven: 2.4 cu. ft.
• Large Oven: 5.3 cu. ft.
• Small Oven: 2.4 cu. ft.
Number of Ovens
Double
Programs
• Main oven: Bake, Broil, Convection bake
• Secondary oven: Bake and Proof
• Secondary oven: Bake and Proof
Features
Technologies
• Dual Flow Burners™
• Grease Management System™
• Grease Management System™
Convection
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
No
Wi-Fi
No
Additional Information
• Main oven- Bake: 22,000 BTU
• Main oven- Broil: 19,000 BTU
• 3 x Full extention telescopic racks (main oven)
• LED Halo control dials
• Flat vent trim
• Main oven- Broil: 19,000 BTU
• 3 x Full extention telescopic racks (main oven)
• LED Halo control dials
• Flat vent trim
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Optional
• VS48-48" Pro Hood
• Square handle: AH-R48
• Square handle: AH-R48
Dimensions
Class Width
48"
Width
47.87 inch(es) / 121.6 cm
Height
36.75 inch(es) / 93.35 cm
Depth (Without Handles)
29.13 inch(es) / 73.98 cm
Additional Dimensions
• Max. overall height of range: 36 3/4"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
Warranty
Warranty
Limited 2 Years Parts & Labor
UPC
UPC#
822843713493
Features
DUAL FLOW BURNERS™
Sealed Dual Flow Burners™ deliver cooktop power up to 22,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
HANDLE OPTION
Customise your Professional Fisher & Paykel kitchen appliance to suit your kitchen style by purchasing our square handle option.
INSTANT VISIBLILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.

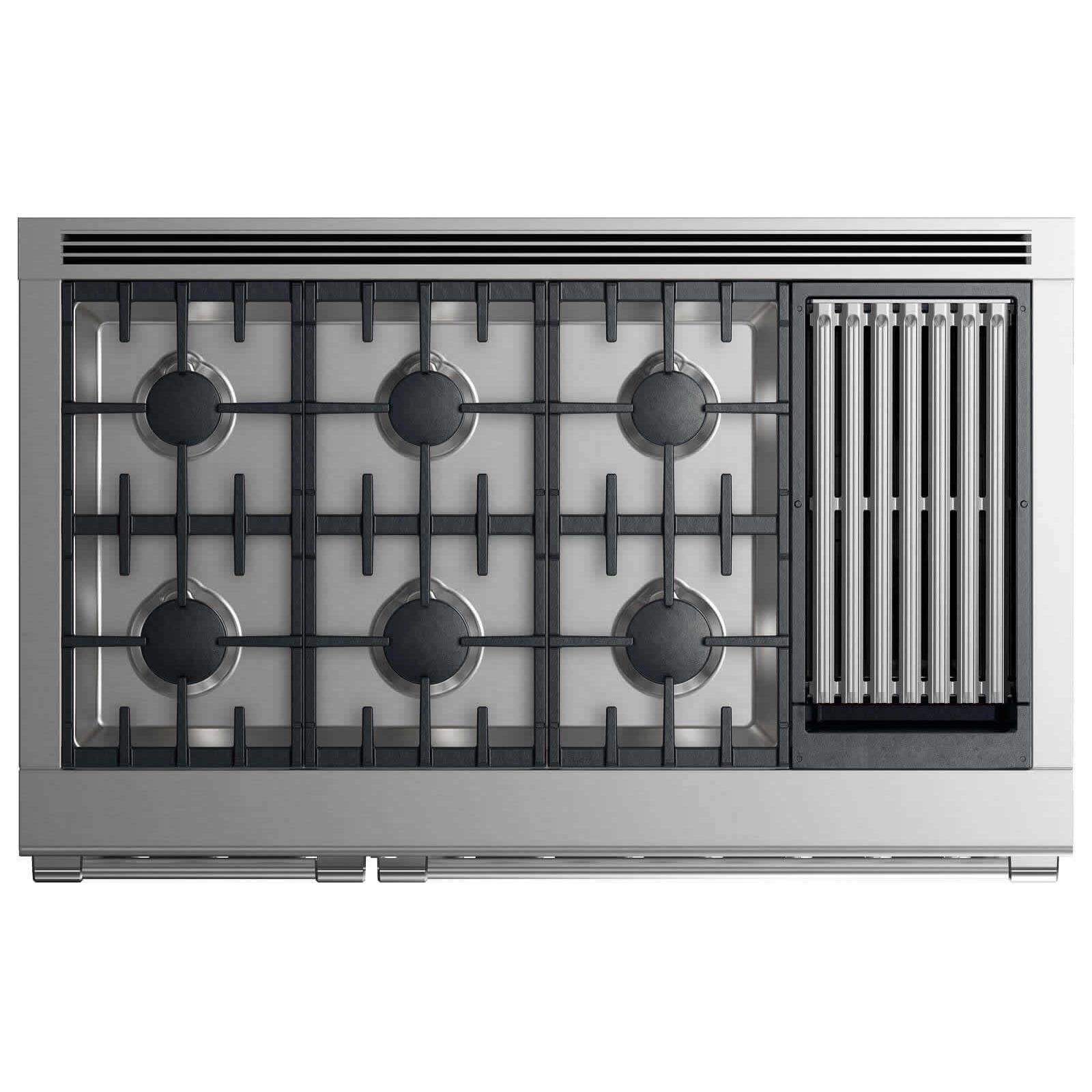

COOKING FLEXIBILITY - DUAL FUEL/GAS RANGES
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
