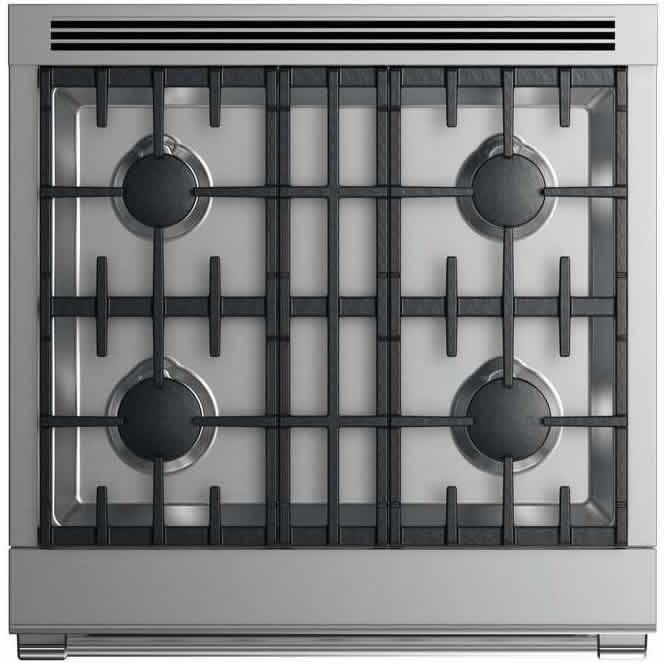

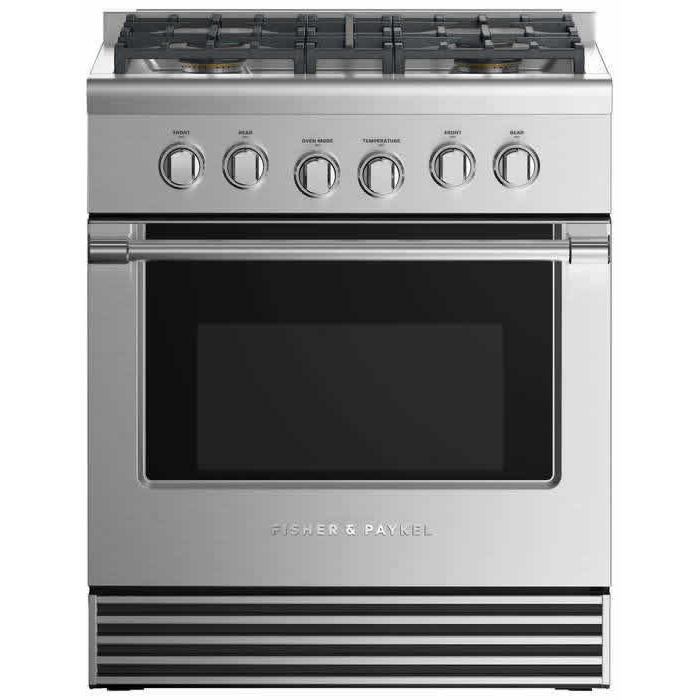

This 30" Fisher & Paykel freestanding range has four high power gas burners that give you precise control from a rapid boil to a gentle simmer.
$0.00
Specifications
General
Series Name
Professional
Fuel Type
Liquid Propane
Installation Type
Freestanding
Color
Stainless Steel
Manufacturer Color
Stainless Steel
Cooktop
Burners/Elements
4
Burners/Elements Output
• Total cooktop power: 60,000 BTU
• Simmer on all Burners: 140 °F
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Left Front: 19,000 BTU
• Front right: 15,000 BTU
• Simmer on all Burners: 140 °F
• Back left: 13,000 BTU
• Back right: 13,000 BTU
• Left Front: 19,000 BTU
• Front right: 15,000 BTU
Burners
Sealed
Oven
Capacity (cu. ft.)
4.6 cu. ft.
Number of Ovens
Single
Programs
• Bake
• Broil
• Convection Bake
• Broil
• Convection Bake
Features
Technologies
Dual Flow Burners™
Convection
Yes
Downdraft Ventilation
No
Oven Light
Yes
Self-Cleaning
Yes
Wi-Fi
No
Additional Information
• Bake: 22000BTU
• Broil: 19000BTU
• Dishwasher proof trivets
• 3 x Full extention telescopic racks
• LED Halo control dials
• Easy to Clean
• Flat vent trim
• Broil: 19000BTU
• Dishwasher proof trivets
• 3 x Full extention telescopic racks
• LED Halo control dials
• Easy to Clean
• Flat vent trim
Drawer Features
Baking
No
Broiler
No
Storage
No
Warming
No
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Optional
• VS30 / ES30 -30" Pro / Traditional Hood
• Square handle: AH-R30
• Square handle: AH-R30
Dimensions
Class Width
30"
Width
29.87 inch(es) / 75.88 cm
Height
35.75 inch(es) / 90.81 cm
Depth (Without Handles)
29.13 inch(es) / 73.98 cm
Additional Dimensions
• Max. overall height of range: 36 3/4"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
• Depth from rear of chassis to cabinetry face - projecting control panel: 25 1/8"
• Depth from rear of chassis to cabinetry face - flush control panel: 27 11/16"
• Height from top of countertop to top of pan supports: 1 9/16"
• Height from top of countertop to top of - vent trim (if fitted) 1 3/4", angled vent trim (if fitted) 3 1/2"
• Height from top of countertop to bottom of chassis: 35 1/4"
• Adjustable feet height (min - max): 1/2" - 1 1/2"
• Depth of open door to front control panel: 19 1/8"
Warranty
Warranty
Limited 2 Years parts and labor
UPC
UPC#
822843713578
Features
COOKING FLEXIBILITY
This freestanding gas range has four functions with pre-set temperatures, including Bake, Broil and Convection Bake allowing you to use a variety of cooking styles.
EASY CLEANING - COOKTOPS
Cleaning is quick and simple. The cooktop is easy to clean as it is made from a single piece of stainless steel that contains spills. The oven door and its inner pane of glass can be removed for easy cleaning.
INSTANT VISIBLILITY
Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.
TOTAL CONTROL
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
