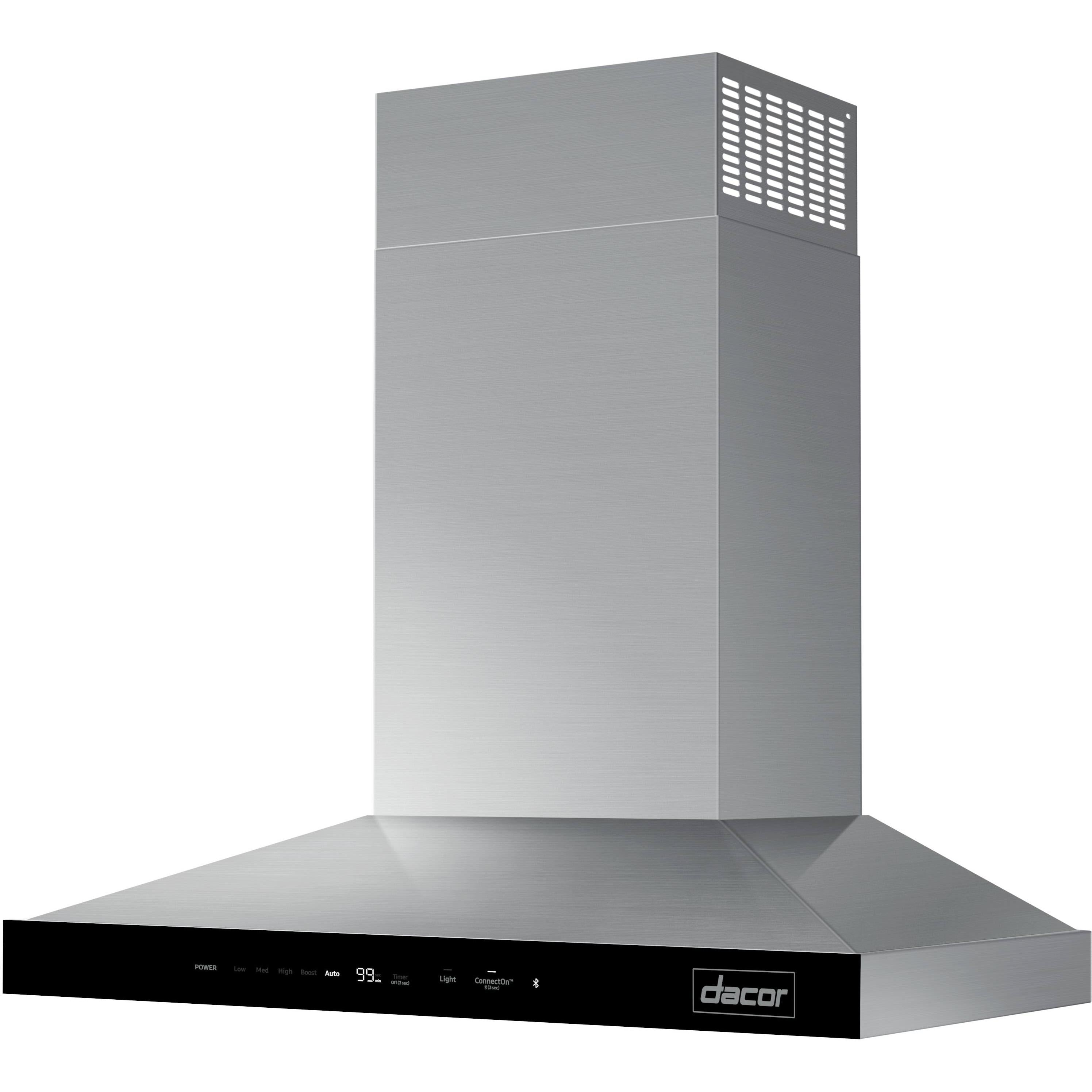

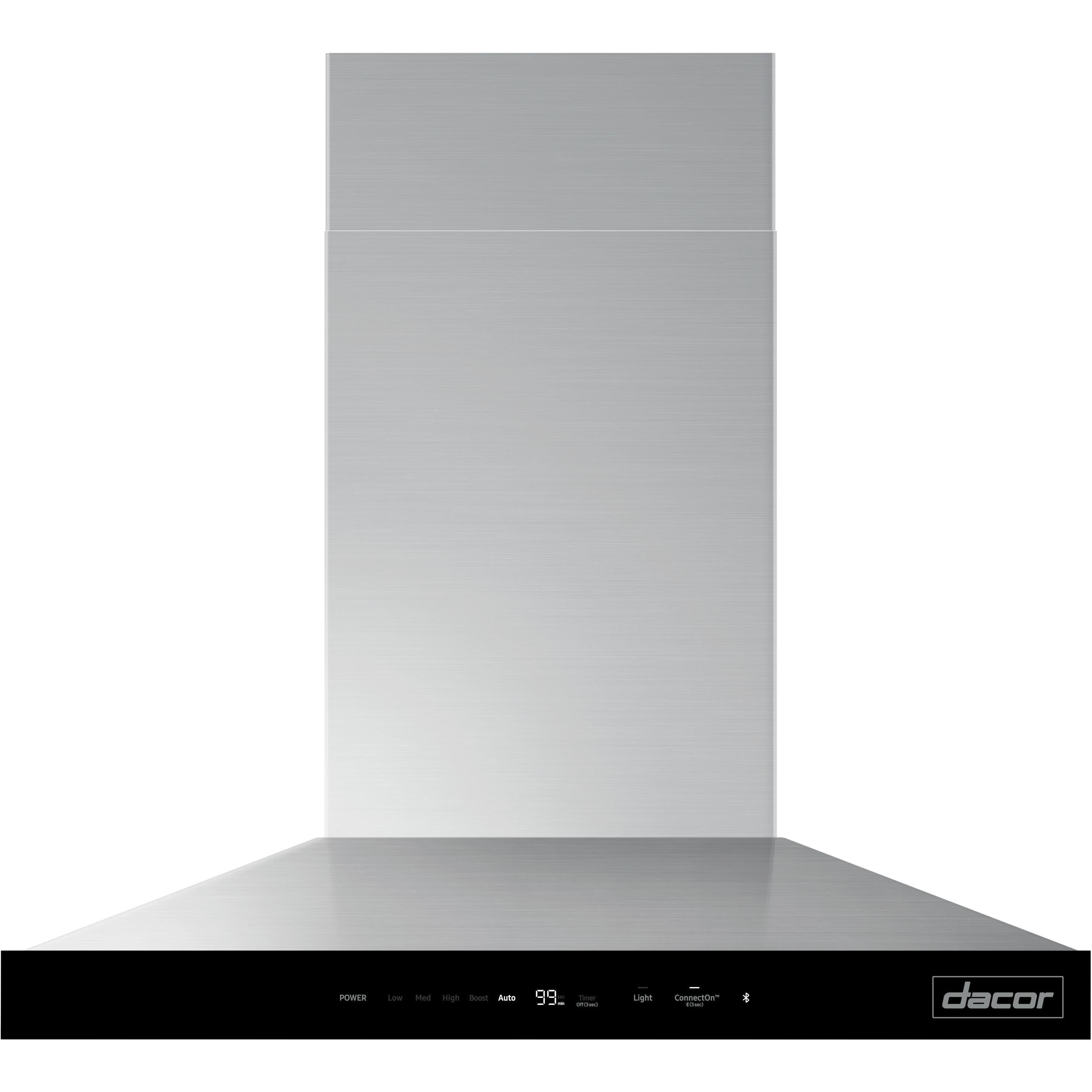

The 30" Chimney Wall Hood is designed to make your life easier by seamlessly pairing to your compatible Dacor cooking product. Bluetooth automatically starts ventilation when you start cooking and adjusts intensity when necessary to ensure smoke and odor are removed from the air with minimal noise. SmartThings connectivity allows you to control your ventilation from your mobile device. Powerful yet quiet, internal blowers draw air into the ventilation system to dissipate cooking odors, even when all burners are lit. Designed with elegant lines, sophisticated glass touch control, and LED strip lighting that will illuminate your cooking area in an elegant glow.
$2,599.99
Specifications
General
Blower Included
Yes
Airflow
600 CFM
Style
Chimney
Color
Silver
Manufacturer Color
Silver Stainless Steel
Installation
Wall Mount
Features
Wi-Fi
Yes
Technologies
• Bluetooth
• Wi-Fi
• Wi-Fi
Speeds
4 (3 Step + Booster)
Additional Information
• Auto Sensing (Heat Sensor)
• Strip LED Lighting

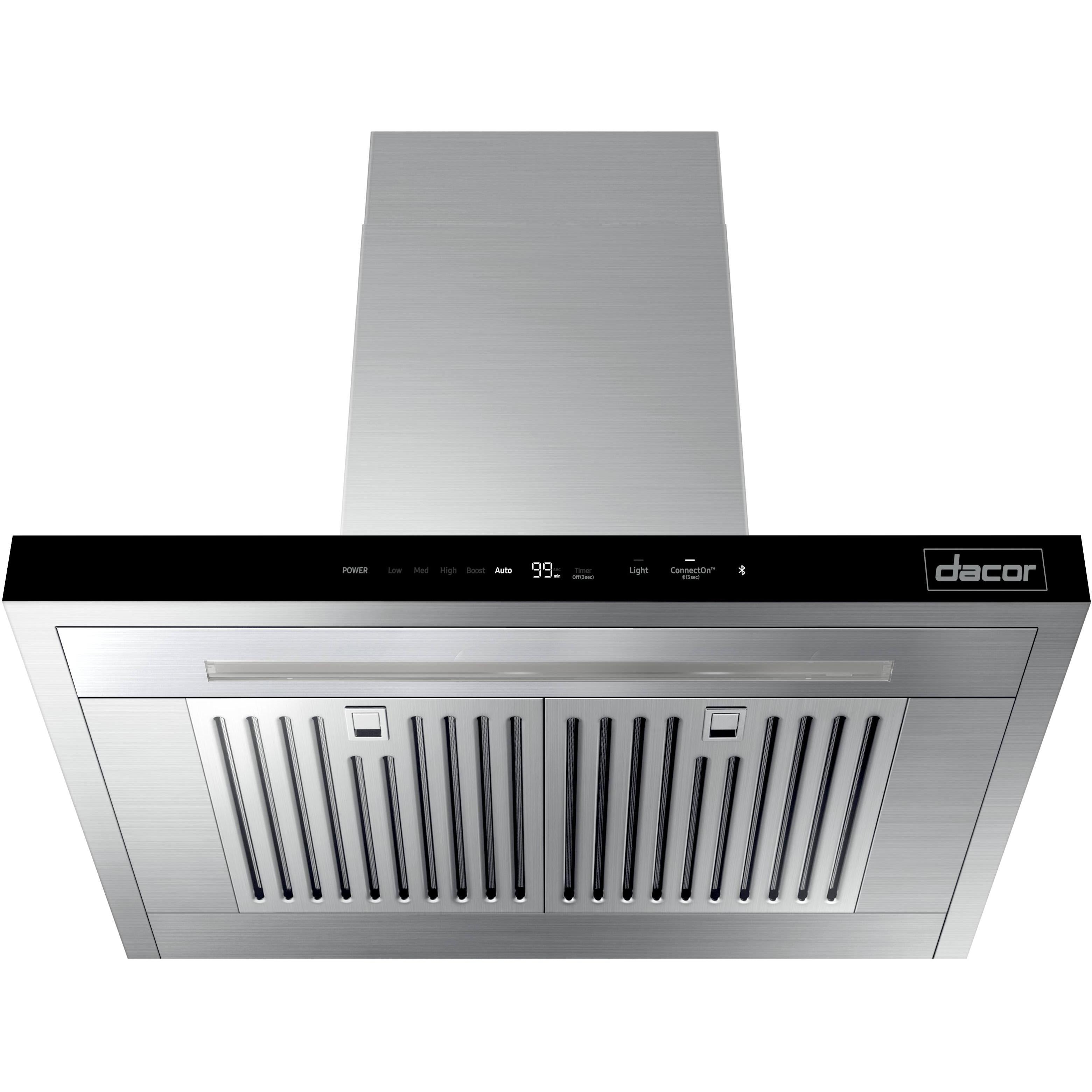

• Removable Baffle Filter
• Lighting On/Off
• Strip LED Lighting
• Removable Baffle Filter
• Lighting On/Off
Electrical Information
Information
• 120 V
• 60 Hz
• 15 A
• 60 Hz
• 15 A
Accessories
Optional
• AMEK705M - Extension Kit, Graphite Stainless
• AMRK030 - Recirculation Kit
• AMCF050 - Charcoal Filter
• AMRK030 - Recirculation Kit
• AMCF050 - Charcoal Filter
Dimensions
Class Width
30"
Width
29.92 inch(es) / 76.0 cm
Height
25.39 inch(es) / 64.5 cm
Depth
19.84 inch(es) / 50.4 cm
Weight
42.99 lb(s) / 19.5 kg
Shipping Dimensions
Weight
56 lb(s) / 25.4 kg
Warranty
Warranty
Limited 2 Years Parts and Labor
Features
AUTO CONNECTED HOOD
Activate and adjust the hood with Bluetooth and ConnectOn auto-responsive technology. Turns on the ventilation in conjunction with the cooktop, and ramps up the speed as necessary.
LED LIGHTING
Cloaks the cooking area, and your creations, in an elegant glow.
FOUR-SPEED FAN
Powerful performance with minimal noise.

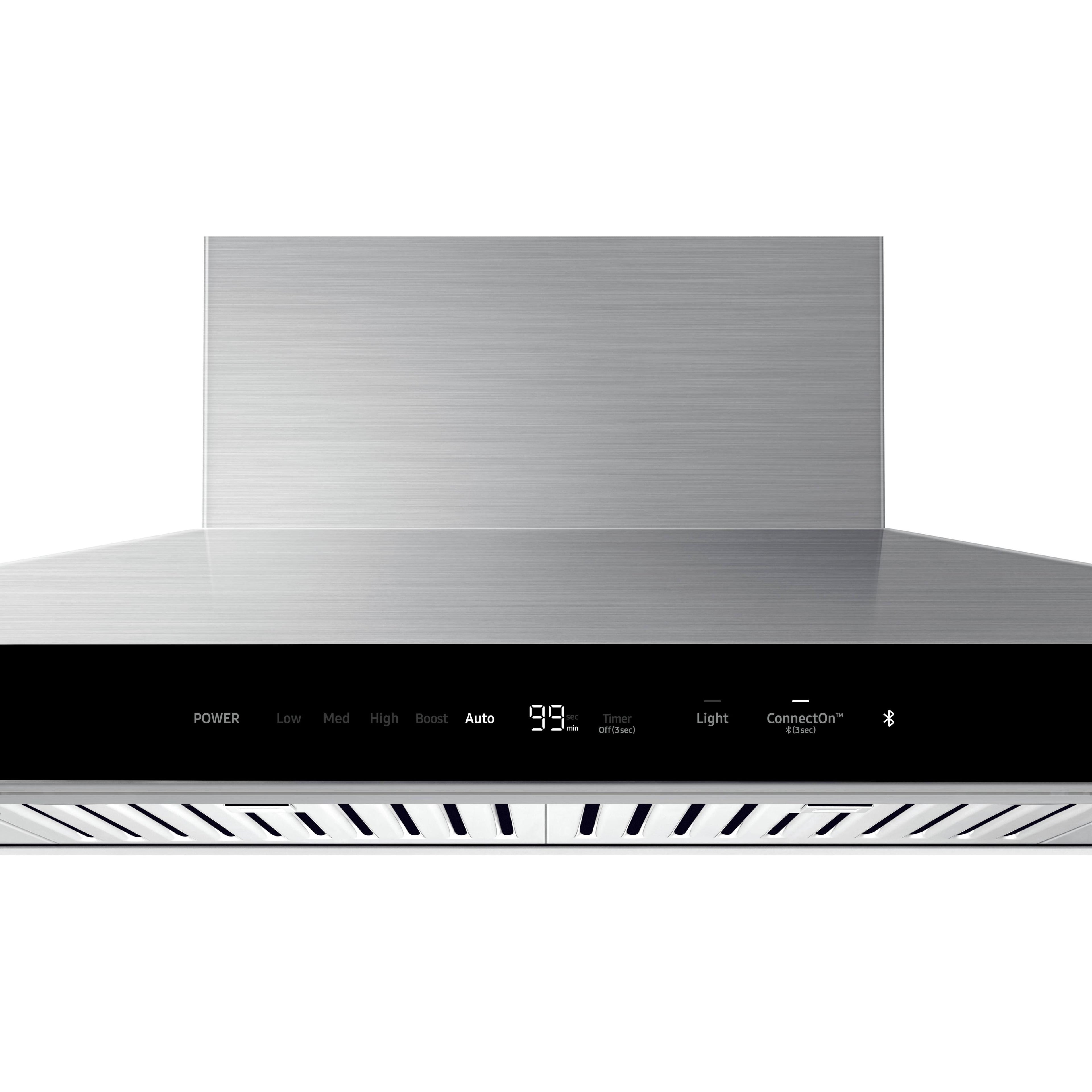

ELECTRONIC CONTROL PANEL
Full capacitive touch control behind glass finish provides clean design for any kitchen.
