Product Dimensions 8"h x 47.88"w x 27.88"d
Dacor rangetops offer refined looks and a visionary performance that come together perfectly with a lineup of features that ignite the imagination – turn up the heat on what’s possible.Read More
Dacor Buy More, Save More
Save up to 20% on eligible Dacor purchases Ends Dec 31
Shop eligible itemsBuy 1
Save 10%
Buy 2
Save 15%
Buy 3+
Save 20%
Buy $10K
Save 10%

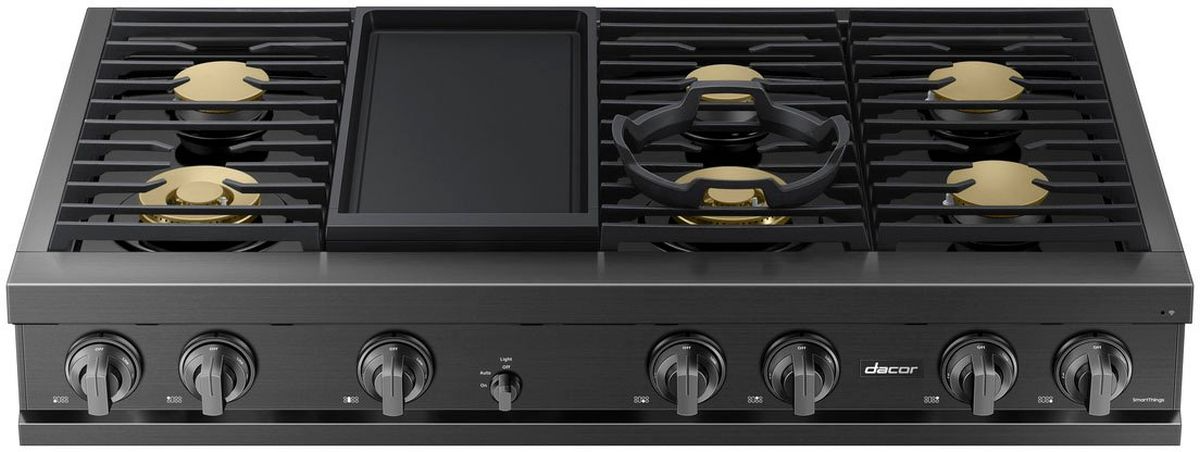

Cook delicious meals with ease and precision. Quickly boil water with 22,000 BTU of power or maintain a gentle simmer at 750 BTU with the all-brass, Dual Valve, Dual Ring Burner.
A 6 Pass, built-in 1,400W Griddle provides even heat distribution. And the scratch-resistant, cast-aluminum griddle is coated with a non-stick ceramic surface to keep your kitchen pristine.
Elegance meets function with a Dacor rangetop, and no detail is overlooked. Glowing Illumina™ knobs shine and add a warm, welcoming glow to your kitchen.
Bluetooth and ConnectOn auto-responsive technology turns on the ventilation in conjunction with the cooktop. And with the use of a temperature sensor, ramps up the ventilation speed as necessary.
Dacor exclusive Graphite and Silver Stainless Steel finishes bring beauty and style to match any kitchen design or concept.
The SmartThings connected platform provides an exceptional foundation for an ever-growing ecosystem of smart connectivity. Preheat and check the oven temperature, the cooking status and the remaining time – all from the comfort of your smartphone.
General Specs | |
| Color | Graphite |
| Color-Finish Name | Graphite Stainless |
| Color/Finish Name | Graphite Stainless |
| Fuel Type | Natural Gas |
| Burner Type | Open |
| Number of Elements/Burners | 6 |
| Cooktop Surface Style | Burner Grate |
| Ignition Type | Spark |
| Cooktop Features | Continuous Grate, LP Convertible, Griddle Included, Wi-Fi Capable, Simmer Element |
| Smart Compatible | Yes |
| Outdoor Approved | No |
| Appliance Fit Width (in.) | 48 |
| Appliance Fit Width (cm.) | 122 |
| Width (in.) | 47.88 |
| Width (cm) | 121.62 |
| Depth (in.) | 27.88 |
| Depth (cm.) | 70.82 |
| Height (in.) | 8 |
| Height (cm.) | 20.32 |
| Product Weight (lbs.) | 66 |
| Product Weight (kg) | 29.94 |
| Cut Out Width | 48 |
| Cut Out Width Centimeter | 121.92 |
| Cut Out Depth | 24 |
| Cut Out Depth Centimeter | 60.96 |
| Cut Out Height | 7.75 |
| Cut Out Height Centimeter | 19.69 |
| Weight Kilogram | 42.18 |
| ADA Compliant | No |
| ENERGY STAR Certified | No |
| Manufacturer Warranty | 2 Year |
| Voltage | 120 |
| Frequency | 60 |
| Amp | 15 |
